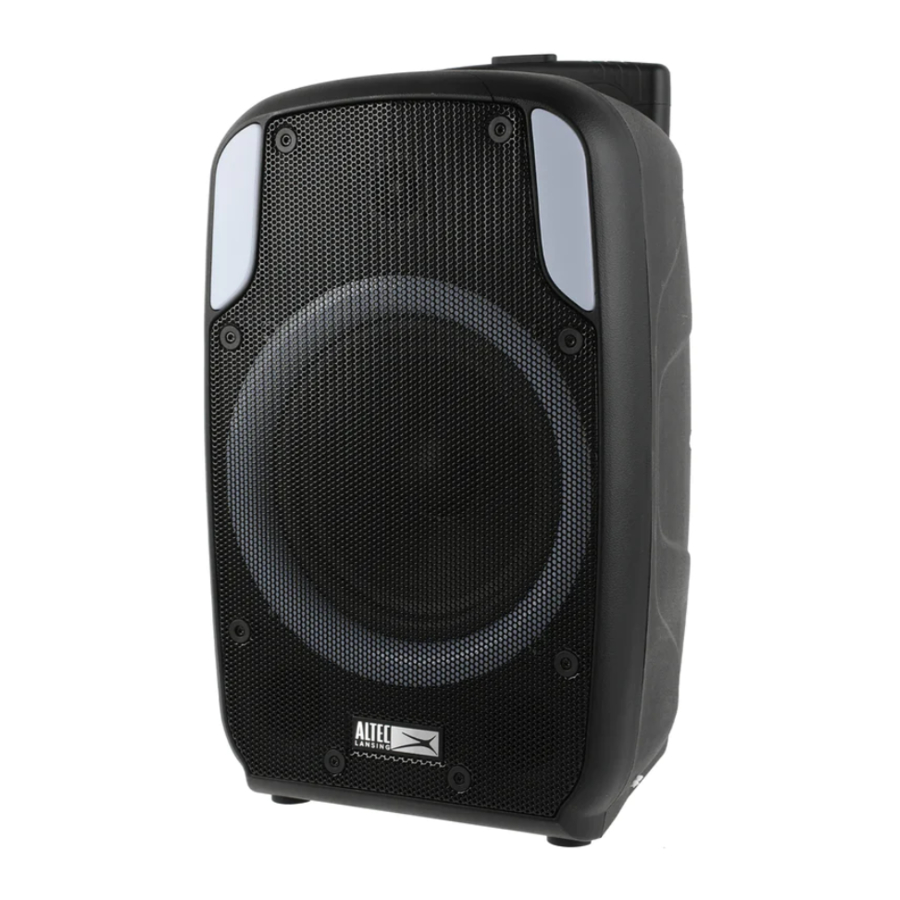

Altec Lansing SoundRover 50 IMT8000 - Party Speaker Manual

WHAT'S IN THE BOX

INPUT / OUTPUT PORTS

1. DC5V Charging Port
2. Auxiliary Input
3. Microphone Input

SPEAKER CONTROLS

1. Power

2. Volume
3. Light Modes
4. Previous Track/MIC Vol. Decrease (press and hold)
5. Play/Pause
6. Next Track/MIC Vol. Increase (press and hold)
7. Bass Control
8. Treble Control
9. LED Indicator (Charging = Red)

AUDIO MODES

Bluetooth Pairing

Press the Power button so that it is in the On position to power on your speaker.

After turning the speaker On, go to the Bluetooth page in the Settings app on your phone. Make sure Bluetooth is On before connecting to the available device 'AL SoundRover 50'.

The speaker's LED Indicator will quickly flash blue when pairing, and will turn solid blue when the speaker is paired to a device.

AUX Input

Insert one end of a 3.5mm audio cable (not included) into the speaker's AUX In Jack. Insert the other end into a device with an AUX jack.

The LED Indicator will illuminate solid blue when an audio cable is connected to the speaker.

LIGHT MODES

Press the Light Modes button to turn the lights On.
Press the button repeatedly to toggle through the six modes and to turn the lights Off.

Press and hold the Light Modes button to turn the top strobe lights On and Off.

When the music is off the strobes will flash slowly.

MICROPHONE

Connect a microphone (not included) into the Microphone jack to sing along to music.

Press and hold the MIC Vol. Decrease and MIC Vol. Increase buttons to adjust the microphone's volume.

SAFETY PRECAUTIONS

SPECIFICATIONS

• Bluetooth Specification: V5.0
• Bluetooth Range: up to 33 Feet
• Battery Type: Rechargeable Lithium Ion Battery
• Output: 50W Peak
• Charging Time: 5-6 Hours
• Play Time: Up to 6 hours**

** Playtime is for reference only and will be lower at very high volume or with lights on. 6 Hours is achievable at approx 40% volume level.
