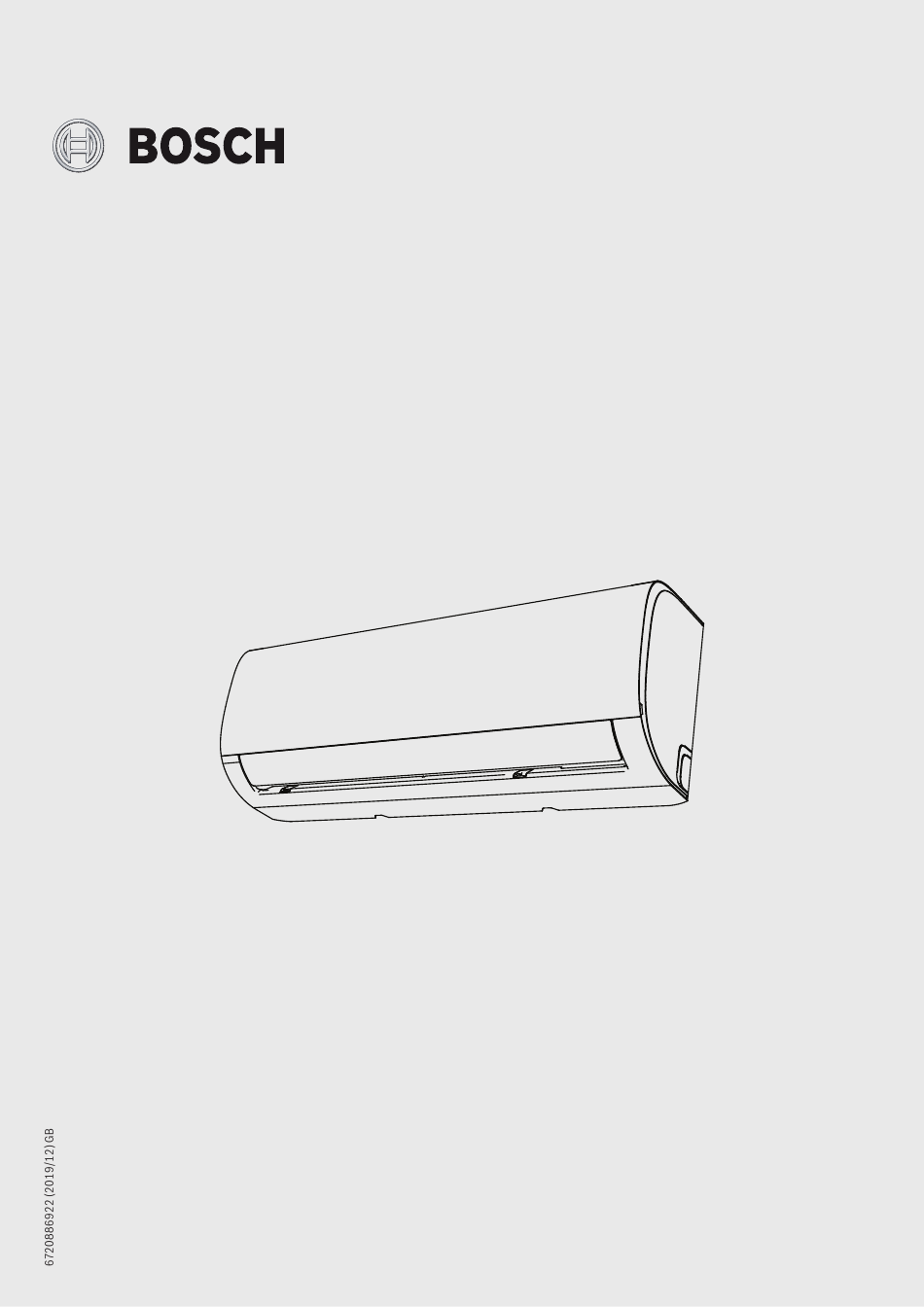

Owner's Manual
SPLIT-TYPE ROOM AIR CONDITIONER
Climate 5000
RAC 2,6-2 IBW / OUE
RAC 3,5-2 IBW / OUE
RAC 5,3-2 IBW / OUE
RAC 7-2 IBW / OUE
IMPORTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.

Advertisement

Table of Contents
loading

Subscribe to Our Youtube Channel

Summary of Contents for Bosch RAC 2,6-2 IBW

  • Page 1 Owner’s Manual SPLIT-TYPE ROOM AIR CONDITIONER Climate 5000 RAC 2,6-2 IBW / OUE RAC 3,5-2 IBW / OUE RAC 5,3-2 IBW / OUE RAC 7-2 IBW / OUE IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
  • Page 2: Table Of Contents

    Safety Precautions Table of Content Safety Precautions Read Safety Precautions Before Installation Safety Precautions ............2 Incorrect installation due to ignoring instructions can cause serious Unit Specifications and Features......... 4 damage or injury. Unit Parts ............... 4 Achieving Optimal Performance ......... 4 The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.
  • Page 3 Safety Precautions CAUTION • If the air conditioner is used together with burners or other heating source, thoroughly ventilate the room to avoid oxygen deficiency. • Turn off the air conditioner and isolate the unit if you are not going to use it for a long time.
  • Page 4: Unit Specifications And Features

    Unit Specifications and Features Unit Specifications and Features Unit Parts Front Panel Remote Control Remote Control Holder Louver Display window “defrost” when DEFROST feature is activated. “run” when the unit is on. “timer” when TIMER is set. “ ” Displays temperature, operation feature and Error codes: “...
  • Page 5: Inverter Split Type

    Unit Specifications and Features Inverter Split Type NOTE ON LOUVER ANGLES COOL mode HEAT mode DRY mode When using COOL or DRY mode, do not set louver at too vertical an Room 17°C - 32°C 0°C - 30°C 10°C - 32°C angle for long periods of time.
  • Page 6: Manual Operation (Without Remote)

    Manual Operation (Without Remote) Press the SLEEP button when you are ready to go to sleep. When in Manual Operation (Without Remote) COOL mode, the unit will increase the temperature by 1°C after 1 hour, How to operate your unit without the remote control and will increase by an additional 1°C after another hour.
  • Page 7: Care And Maintenance

    Care and Maintenance Care and Maintenance Cleaning Your Indoor Unit WARNING BEFORE CLEANING OR MAINTENANCE ALWAYS TURN OFF YOUR AIR CONDITIONER SYSTEM AND ISOLATE THE POWER SUPPLY BEFORE CLEANING OR MAINTENANCE. Filter Tab CAUTION Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can use a cloth soaked in warm water to wipe it clean.
  • Page 8: Maintenance - Long Periods Of Non-Use

    Care and Maintenance CAUTION • Any maintenance and cleaning of outdoor unit should be performed by Qualified Personnel or a licensed service provider. • Any unit repairs should be performed by Qualified Personnel or a licensed service provider. Maintenance – Long Periods of Non-Use If you plan not to use your air conditioner for an extended period of time, do the following: Clean all filters...
  • Page 9: Troubleshooting

    Troubleshooting Troubleshooting CAUTION SAFETY PRECAUTIONS If ANY of the following conditions occur, isolate immediately! • The power cord is damaged or abnormally warm • You smell a burning odour • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •...
  • Page 10 Troubleshooting Troubleshooting When troubles occur, please check the following points before contacting a repair company. Problem Possible Causes Solution Poor Cooling Performance Temperature setting may be higher than ambi- Lower the temperature setting ent room temperature The heat exchanger on the indoor or outdoor Clean the affected heat exchanger unit is dirty The air filter is dirty...
  • Page 11: European Disposal Guidelines

    European Disposal Guidelines European Disposal Guidelines This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste. When disposing of this appliance, you have the following options: •...
  • Page 12 Bosch Thermotechnology Ltd Cotswold Way Warndon Worcester WR4 9SW mailto: Commercial.enquiry@uk.bosch.com Contact Number 03301233004 Web address www.bosch-industrial.co.uk...
