INSTRUKTIONER FÖR ANVÄNDNING OCH INSTALLATION

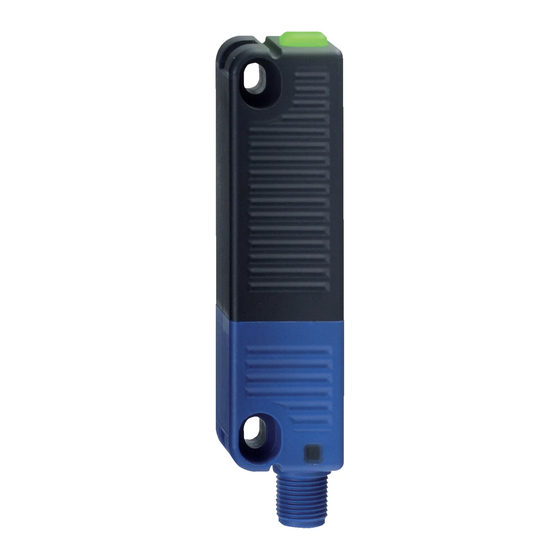

RSS 36-I2-D-R-ST

Table of Contents

1 Om detta dokument
1.1 Funktion
1 Om detta dokument
Schmersal leveransprogram är inte avsett för privata konsumenter.
1.1 Funktion
1-23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSS 36-I2-D-R-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for schmersal RSS 36-I2-D-R-ST

Summary of Contents for schmersal RSS 36-I2-D-R-ST

  • Page 1: Table Of Contents

    7.3 Operating principle of the electronic diagnostic output 7.4 Safety-sensors with serial diagnostic function 8 Idrifttagning och underhåll 9 Demontering och sluthantering 9.1 Demontering 9.2 Sluthantering 1 Om detta dokument Schmersal leveransprogram är inte avsett för privata konsumenter. 1.1 Funktion 1-23...

  • Page 2: Instruktionsbokens Målgrupp: Auktoriserad Fackpersonal

    Säkerhetsbrytaren får endast användas i enlighet med följande utföranden eller för den av tillverkaren godkända användningen. Detaljerade uppgifter om användningsområdet finns i kapitlet "Produktbeskrivning". 1.5 Allmänna säkerhetsanvisningar Säkerhetsanvisningarna i instruktionsboken samt gällande installations-, säkerhets- och olycksfallsföreskrifter ska beaktas. Ytterligare teknisk information finns i Schmersal-katalogen resp. på products.schmersal.com i online-katalogen på Internet. 2 Produktbeskrivning 2-23...

  • Page 3: Typnyckel

    2.1 Typnyckel Produktbeteckning: RSS 36 (1)-(2)-(3)-(4) utan Standardkodning individuellt kodad Individuellt kodad, kan omkodas utan without diagnostic function (only on request for ST5) med diagnosutgång with serial diagnostics (only for ST) utan utan kvarstannande positioner med kvarstannande, hållkraft ca 18 N Stickkontakt M12, 8-polig Connector plug M12, 5-pole 2.2 Specialversioner...

  • Page 4: Varning För Felanvändning

    Safety sensors and actuators with latching (ordering suffix 'R') always must be used in pairs. The latching force (approx. 18 N) exercised by the permanent magnet keeps hatches and small guards closed, also in a de-energised condition. The system can be used as a door end stop up to 5 kg at 0.25 m/s. The diagnostic output of the safety sensor alternatively can be used as a conventional output or as a “serial output“...
  • Page 5 Föreskrifter EN ISO 13849-1 EN IEC 60947-5-3 EN IEC 61508 Allmän information Individuellt kodad, kan läras in flera gångar Coding level according to EN ISO 14119 Hög Aktiv princip RFID Frequency band RFID 125 kHz Transmitter output RFID, maximum -6 dB/m Kaplsing, dimensioner Block Monteringsvillkor (mekanisk)
  • Page 6 Safety Integrity Level (SIL) Mission time 20 År Mekaniska data Nyckelingångar på sidan Aktiv yta på sidan Mekanisk livslängd, minimum 1 000 000 kopplingar Note (Mechanical life) aktiveringshastighet 0,25 m/s Kopplingar av skyddsdörr ≤ 5 kg Hysteres (aktiveringsavstånd), maximum 2 mm Repeternoggrannhet 0,5 mm Notera (repeternoggrannhet R)
  • Page 7 Omgivningsförhållanden Skyddsklass IP65 IP67 IP69 Ambient temperature -25 ... +70 °C Lager och transporttemperatur, minimum -25 °C Lager och transporttemperatur, maximum +85 °C Relativ fuktighet, maximum 93 % Note (Relative humidity) icke kondenserande inte nedisande Vibrationstålig enligt EN 60068-2-6 10 … 55 Hz, Amplitud 1 mm tålighet mot chock 30 g / 11 ms Protection class...
  • Page 8 Classification ZVEI CB24I, Source Electrical data - Safety digital outputs Designation, Safety outputs Y1 and Y2 Märkström (säkerhetsutgångar) 250 mA Utgångsström (säker utgång), maximum 0,25 A Säkerhetsutgång short-circuit proof, p-type Voltage drop U , maximum Leakage current I , maximum 0,5 mA Voltage, Utilisation category DC-12 24 VDC...

  • Page 9: Montering

    This device complies with the nerve stimulation limits (ISED CNR-102) when operated at a minimum distance of 100 In the event of changes or modifications that have not been expressly approved by K.A. Schmersal GmbH & Co. KG, the user's authorisation to use the device may become ineffective.

  • Page 10: Dimensioner

    Please observe the relevant requirements of the standards ISO 12100, ISO 14119 and ISO 14120. Ensure the safety sensor and actuator is mounted on a flat surface. The component can be mounted in any position. The universal mounting holes provide for a variable mounting by means of M4 screws. Mounting: a screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators.

  • Page 11: Accessories

    Alternative suitable actuators with different design: refer to products.schmersal.com. 4.3 Accessories Set of disposable screws (order separately) - 4x M4x25 incl. washers, order number 101217746 - 4x M4x30 incl. washers, Bestellnummer 101217747 Sealing kit (order separately) - Order number 101215048 - 8 plugs and 4 under seals - To seal the mounting holes and as a spacer (approx.

  • Page 12: Switch Distance

    4.4 Switch distance Switching distances in mm to IEC 60947-5-3 Typical switching distance s Assured switching distance s Assured switch-off distance s There are new switch distances as per the table below owing to the necessity of technical modifications (V2). Please check the design of your guard system following installation to ensure adherence to the secured switch distances (≤...

  • Page 13: Adjustment

    The side allows for a maximum height misalignment (X) of sensor and actuator of ± 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm. Latching versions X ± 5 mm, Y ± 3 mm. The latching force will be reduced by misalignment.

  • Page 14: Seriell Diagnos -Sd

    Requirements for the connected safety-monitoring module: dual-channel safety input, suitable for p-type sensors with NO function Information för val av lämplig säkerhetsövervakning finns i Schmersal-katalogen resp. under products.schmersal.com i online-katalogen på Internet. As an alternative to a safety-monitoring module, the safety sensors of the CSS 34F0 or CSS 34F1 series can also be used as first sensor of a series-wired chain for the direct control and monitoring of safety contactors (refer to operating manual of CSS 34F0 / CSS 34F1).

  • Page 15: Anslutningsexempel För Seriekoppling

    5.3 Anslutningsexempel för seriekoppling Series-wiring can be set up. In the case of a series connection, the risk time remains unchanged and the reaction time increases by the sum of the reaction time of the inputs per additional unit specified in the technical data. The number of components is only limited by the external cable protection according to the technical data and the line loss.
  • Page 16 Function safety switchgear Pin configuration of the Colour codes of the Schmersal Poss. connector connectors colour codes of other customary connectors   8-pin 5-pin 8-pin version ST 5-pin to IEC version ST version ST version ST 60947-5-2: 2007   with...

  • Page 17: Actuator Coding

    Connecting cables (PUR) with coupling (female) IP67 / IP69, M12, 5-pole - 5 x 0.34 mm² to EN 60947-5-2 Cable length Ordering code 5.0 m 103010816 10.0 m 103010818 15.0 m 103010820 6 Actuator coding Safety sensors with standard coding are ready to use upon delivery. Individually coded safety sensors and actuators will require the following "teach-in"...

  • Page 18: Operating Principle Of The Electronic Diagnostic Output

    The green LED indicates that the safety sensor is ready for operation. The supply voltage is on and all safety inputs are present. Flashing (1Hz) of the green LED signals that a voltage is missing on one or both of the safety inputs (X1 and/or X2). The yellow LED always signals the presence of an actuator within range.

  • Page 19: Safety-Sensors With Serial Diagnostic Function

    Table 1: Examples of the diagnostic function of the safety-sensor with conventional diagnostic output Sensor function LED's Diagnostic- Safety Comments output outputs green yellow   Y1, Y2   Supply voltage Voltage on, no evaluation of the voltage quality actuated 24 V 24 V The yellow LED always...
  • Page 20 SD-Gateway is integrated as a slave in an existing field bus system. In this way, the diagnostic signals can be evaluated by means of a PLC. The necessary software for the integration of the SD-Gateway is available for download at products.schmersal.com. The response data and the diagnostic data are automatically and permanently written in the assigned input byte of the PLC for each safety sensor in the series-wired chain.
  • Page 21 Table 2: Function of the visual diagnostic LEDs, the serial status signals and the safety outputs by means of an example System LED's Safety Status signals serial diagnostic byte Bit n° conditi output green yellow Y1, Y2 Non- actaute inputs X1 and enabled Actuate...

  • Page 22: Idrifttagning Och Underhåll

    Table 3: Tabular overview of status signals, warnings or error messages(The described condition is reached, when Bit = Communication Request byte: from the PLC to the local safety sensor directions:   Response byte: from the local safety sensor to the PLC  ...

  • Page 23: Demontering

    £ 23-23 Schmersal Nordiska AB, F O Petersons gata 28, S-421 31 Västra Frölunda Alla data och värden har kontrollerats noga. Bilder kan avvika från originalet. Ytterligare tekniska data finns i manualen. Tekniska ändringar och fel förbehålles. Genererat den 2023-06-10 05:17...
