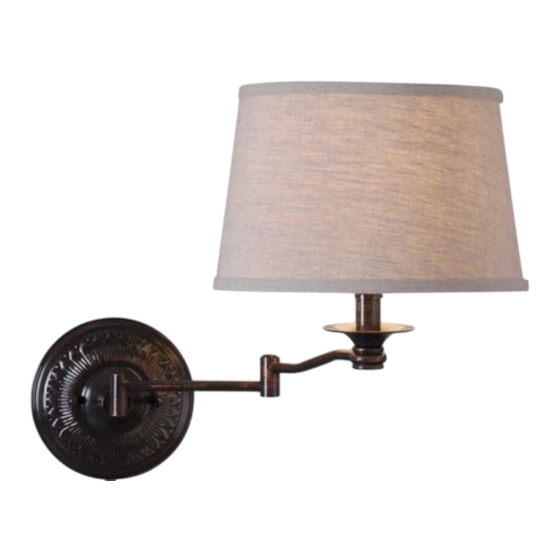

- Page 2 8 a.m.-6 p.m., EST, Monday-Friday 904-642-4340 THANK YOU We appreciate the trust and confidence you have placed in Kenroy Home through the purchase of this lamp. We strive to continually create quality products designed to enhance your home. Thank you for choosing us!
-
Page 3: Table Of Contents
Table of Contents Safety Information ............................2 Warranty ..............................2 Pre-Installation ............................3 Planning Installation ..........................3 Package Contents ..........................4 Using power cord instructions .......................5 , 6, 7 Outlet box installation instructions....................... 8, 9, 10 Care and Cleaning ............................11 Troubleshooting ............................ -
Page 4: Pre-Installation
Pre-Installation PLANNING INSTALLATION Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. Inspect each part for defects that may have occurred during shipping. Keep your receipt and these instructions for proof of purchase. NOTE: The lamp requires the use of one 120V, 60HZ, 100-Watt max, medium-base type A 3-way bulb (not included). -
Page 5: Package Contents

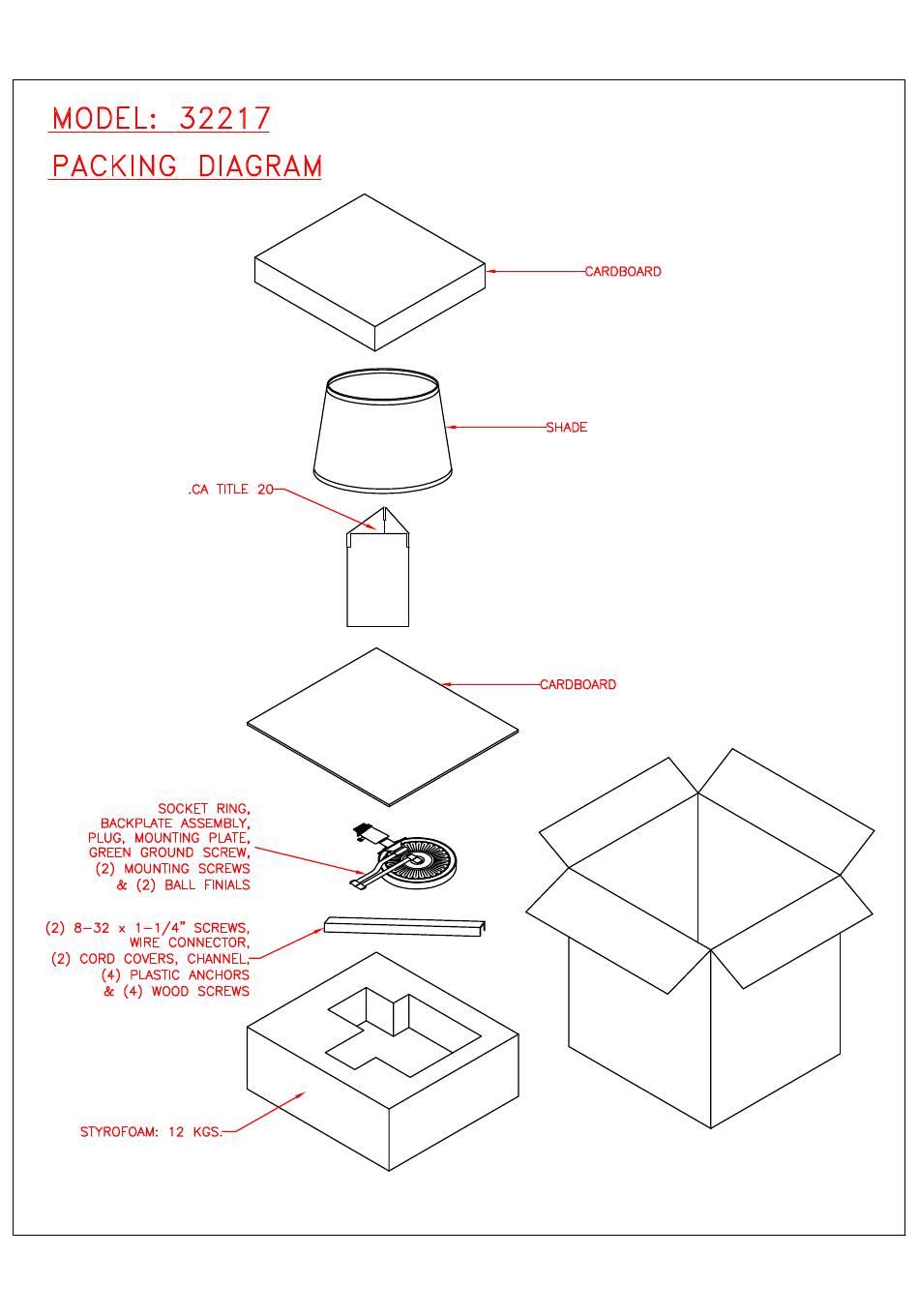

Pre-Installation (continued) PACKAGE CONTENTS Description Quantity Part Socket ring Shade Lamp body... -
Page 6: Using Power Cord Instructions
Using power cord instructions Unpack the lamp and remove the mounting plate □ Carefully organize and place all parts on a smooth, flat surface. line up all of the parts according to the installation diagram. □ Remove the mounting plate (BB) from back of the backplate by unscrewing the two ball finials (GG). Backplate NOTE: If using power cord follow instructions below. - Page 7 Using power cord instructions (continued) Hanging the lamp body □ Raise the lamp body (C) to wall, align the holes in backplate with the mounting screws ( DD), and then secure the backplate to the wall with two ball finials (GG). Backplate Installing the cord cover Optional, if not using cord covers skip to step 5.
- Page 8 Using power cord instructions (continued) Installing the shade & bulb □ Swing the swing arm, if the swing arm is hard to swing or have abnormal sound, put a drop of WD-40 or similar product on the joint and let it sit overnight. dry with a soft cloth. □...
-
Page 9: Outlet Box Installation Instructions
Outlet box installation instructions Removing the power cord The power cord is the wire that enters through the bottom of the backplate. □ Remove the (2) wire nuts that connect to power cord by twisting counter clockwise. (see diagram) □ Remove the set screw and pull power cord out through bottom of backplate. □... - Page 10 Outlet box installation instructions (continued) Connecting the wires □ Install the fixture bare wire (1) under the green ground screw (FF) on the mounting plate (BB). □ Connect the fixture bare wire (1) to the green (or bare, or green & yellow) supply ground wire (2) in the outlet box using a wire nut (AA).
- Page 11 Outlet box installation instructions (continued) Installing the shade & bulb □ Swing the swing arm, if the swing arm is hard to swing or have abnormal sound, put a drop of WD-40 or similar product on the joint and let it sit overnight. dry with a soft cloth. □...
-
Page 12: Care And Cleaning
Important safety instructions □ This portable lamp has a polarized plug (one blade is wider than the other) as a feature to reduce the risk of electric shock. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. - Page 13 www.kenroyhome.com CUSTOMER SUPPORT TEAM For any additional questions or concerns please contact our Customer Support Team: 904-642-4340 @KenroyHome customerorders@kenroyhome.com...
