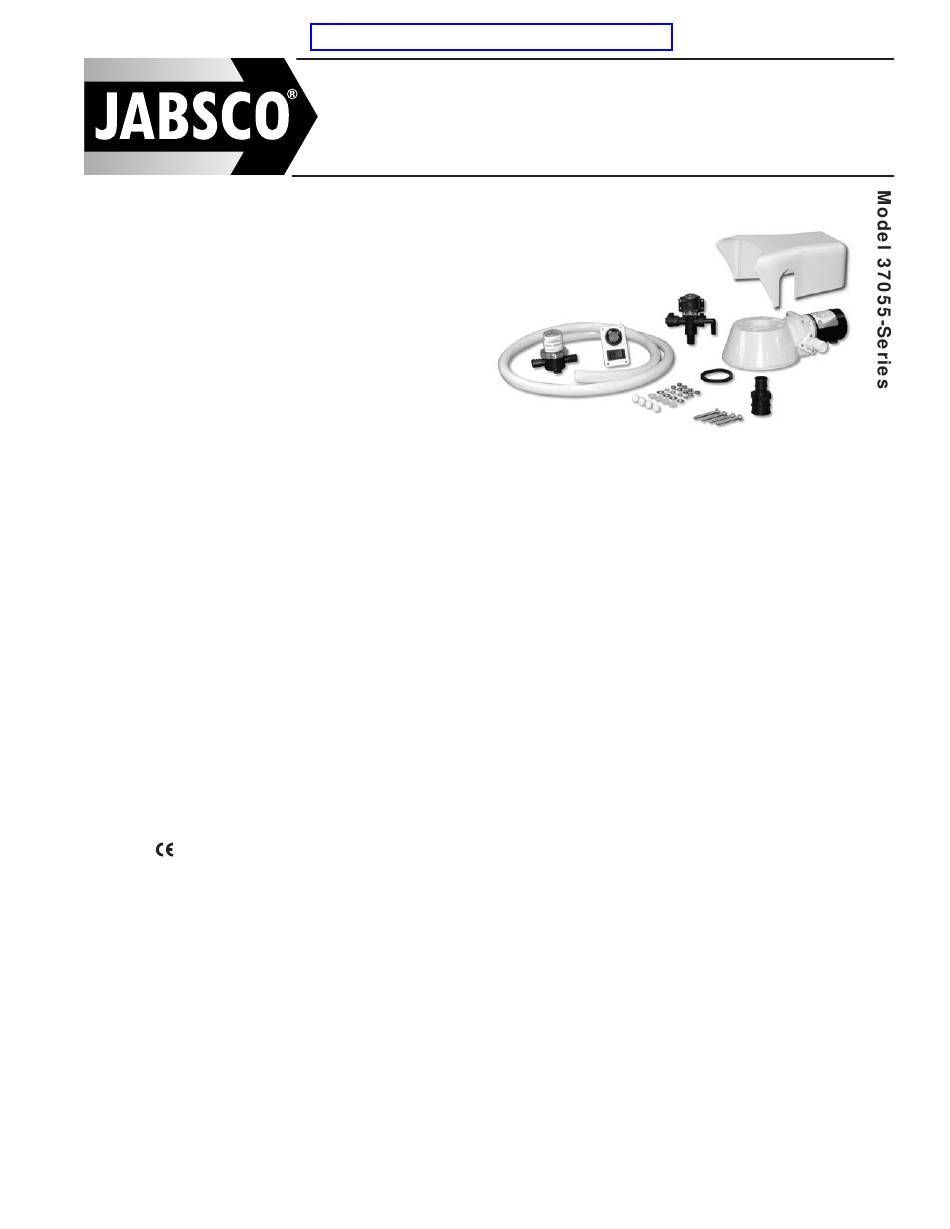

JABSCO 37055 Series Quick Start Manual

QUIET - FLUSH
ELECTRIC TOILET CONVERSION
FEATURES
• Very quiet flush cycle - like a household toilet
• Converts all Jabsco, Par manual toilets and early
electric toilets to the new Quiet-Flush System
• Also converts Groco HC, HE & HF; Raritan PH,
Cricket & Compact; Sealand (Mansfield) 750 to 752
series and all Wilcox Crittenden toilets
• Single button flush actuator - with dual function water
level control switch
• Can be plumbed to any pressurized water system
that can provide a 3-1/2 GPM (13.5 LPM) flow rate
• Water control solenoid valve with anti-siphon breaker
to prevent contamination of potable water supply
• High capacity waste macerator and bowl discharge pump
SPECIFICATIONS
PORTS Inlet 3/4" Hose Barb
Outlet 1" Hose Barb
MOTOR Meet U.S.C.G. Regulation
& SWITCH 183.410 and ISO 8846 MARINE
for Ignition Protection.
WATER 1-2 Quarts (Litres) per Flush
CONSUMPTION
VARIATIONS AVAILABLE
MODEL NO. DESCRIPTION
37055-0092* Toilet Conversion, 12 Volt EMC
37055-0094* Toilet Conversion, 24 Volt EMC
*This model is Marked and complies with EN50081-1 for suppression of
electro-magnetic interference.
OPERATION
The Quiet-Flush Toilet Conversion provides both quiet
operation and user control of water levels in the toilet
bowl. A single large push button switch provides a simple
flush mode by activating both the rinse water supply and
the macerator discharge pump simultaneously. An
additional rocker switch offers independent control of the
rinse water supply and discharge pump separately so the
bowl water level can be easily raised or lowered by the
user. This provides a method of minimizing water use,
when desired, as well as a means of raising the water
level in the bowl when appropriate for user comfort.
It also allows for complete evacuation of the bowl water
while underway in rough sea conditions.
PumpAgents.com - buy pumps and parts online
www.PumpAgents.com
PumpAgents.com - Click here for Pricing/Ordering
Model 37055-Series
INSTALLATION
PLUMBING
The 37055 Series Quiet-Flush Toilet Conversion can be
plumbed to any pressurized water system that can provide
a minimum of 3-1/2 GPM (13.5 LPM). This may be a fresh
water system including the vessel's potable water system
or a washdown system utilizing either fresh or salt water.
However, it must be connected to a pressurized system
that normally remains on at all times while the vessel is
in use.
Before beginning the conversion, close all seacocks
connected with the toilet's plumbing system and take
precaution to ensure they remain closed until the
conversion is complete. If the toilet being converted is an
electric toilet, disconnect the electrical power to the toilet
and take precaution to ensure it is not restored until the
conversion is complete.
Disconnect both inlet and discharge hoses from the old toilet
and remove the toilet from its mounting surface. Remove
the hose connected to the back of the toilet's china bowl
and remove the china bowl and seat & lid assembly from
the old toilet base assembly. Ensure the bottom surface of
the china bowl is clean. The waste pump can be oriented
in any of the possible mounting positions that provides the
best clearance from surrounding obstructions but is gener-
ally best positioned so it points to the rear of the toilet
bowl.The four 6mm machine screws must be secured into
the base to form mounting studs to attach the china bowl.
Place one starlock washer on each of the phillips head
machine screws and a 6mm hex nut in each of the hex
shaped pockets on the top surface of the base. From the
underside of the base, screw one machine screw into each
of the nuts in the hex shaped pockets and tighten it to form
bowl mounting studs. Position the square section O-ring
