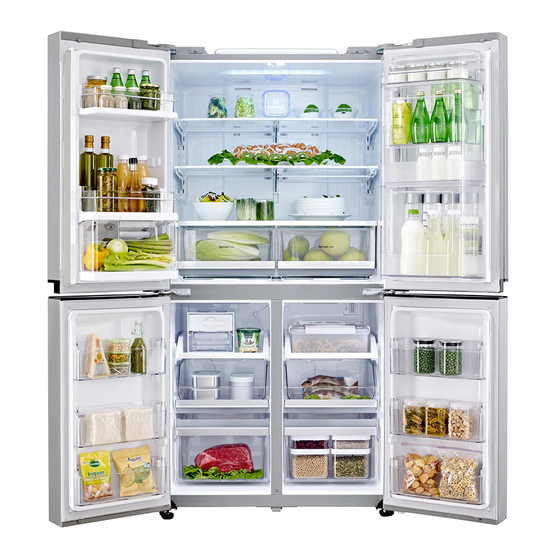

- Page 1 OWNER’S MANUAL BOTTOM FREEZER FRIDGE Please read this owner's manual thoroughly before operating and keep it handy for reference at all times. GMM916NSHV / GLC8839SC / GMM916NSHZ www.lg.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Big Fresh Zone PRODUCT FEATURES - Removal of the Big Fresh Zone drawer - Refitting the Big Fresh Zone drawer How to remove and refit the vegetable IMPORTANT SAFETY INSTRUCTIONS Extra Space (Multi collection corner) Fridge Basket In &... -
Page 3: Product Features
PRODUCT FEATURES PRODUCT FEATURES * Depending on the model, some of the following functions may not be available. DOOR ALARM The Door Alarm function is designed to prevent fridge malfunctioning that could occur if a fridge door or freezer door remains open. If a fridge door or freezer door is left open for more than 60 seconds, a warning alarm sounds in 30 second intervals until it is closed. -
Page 4: Important Safety Instructions
iMPORTANT SAFETY iNSTRUCTiONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product. - Page 5 iMPORTANT SAFETY iNSTRUCTiONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following. This appliance is intended to be used in household and similar applications such as - staff kitchen areas, offices and other working environments;...
- Page 6 iMPORTANT SAFETY iNSTRUCTiONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following. CAUTiON Installation The fridge must be properly installed in accordance with the Installer Instructions that were taped to the front of the fridge.
-
Page 7: Components
COMPONENTS COMPONENTS Use this page to become more familiar with the parts and features of your fridge. Page references are included for your convenience. *The appearance and specifications of the actual product may differ depending on the model. Fridge Exterior (Applicable to some models only) LED Display Displays the fridge and freezer’s target temperature, the water filter... -
Page 8: Fridge Interior
COMPONENTS Fridge Interior (Applicable to some models only) Pure N Fresh Filter LED interior lamps The interior lamps light up the Shelf inside of the fridge. Dairy Product Bin Used to preserve dairy products. Fridge Basket Shelf Folding Shelf Door-in-Door Big Fresh Zone Big Fresh Zone Tilting Fresh... -
Page 9: Installation
iNSTALLATiON INSTALLATION Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. 1 Unpacking your 2 Choosing the proper 3 Leveling and Door fridge location Alignment SUGGESTION FOR ENERGY SAVING Please do not keep the door open for a long time, close door in the shortest time. Too much food are not advised to be put in. -
Page 10: Unpacking Your Fridge
iNSTALLATiON Unpacking Your Fridge Choosing the Proper Location The fridge should always be plugged WARNiNg into its own individual properly grounded electrical outlet rated for 230 Volts, 50 Hz, Use two or more people to move and install AC only, and fused at 15 or 20 amperes. the fridge. -
Page 11: Ambient Temperature
iNSTALLATiON Turning On The Power Ambient Temperature Install this appliance in an indoor area where the Plug in the fridge. temperature is between 55°F (13°C) and 110°F (43°C). If the temperature around the appliance CAUTiON is too low or high, the cooling ability may be adversely affected. -
Page 12: How To Remove The Freezer Door
iNSTALLATiON Turn around to release lock and raise Remove the door by raising it from the lower hinge. hinge up. Upper hinge Keeper Lower hinge Disassemble Door, raising it from Hinge Height Adjustment Center. Leveling the doors may not be possible when the floor is not leveled, or is of weak or poor construction. - Page 13 iNSTALLATiON If the heights of the Freezer doors are (Method 2, only allows a maximum of 3mm of adjustment) different (1) Use the wider side of the number Method 1 is recommended. spanner to turn locking nut ( For freezer doors, use spanner clockwise to unscrew the locking nut.
-
Page 14: How To Use
HOW TO USE HOW TO USE Before use Clean the fridge. Clean your fridge thoroughly and wipe off all dust that may have accumulated during shipping. CAUTiON Do not scratch the fridge with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the fridge. -
Page 15: Control Panel
HOW TO USE Control Panel (Applicable to some models only) Control Panel Features Express Freeze This function increases both ice making and freezing capabilities. When you touch the Express Freeze button, the graphic will illuminate in the display and will continue for 3 hours. The function will automatically disable itself after 3 hours. -
Page 16: Storing Food
HOW TO USE Control Panel Features (continued) CAUTiON Display Mode (For Store Use Only) The Display Mode disables all cooling in the fridge and freezer sections to conserve energy while on display in a retail store. When activated OFF will display on the control panel and the display will remain on for 20 seconds. - Page 17 HOW TO USE Food Preservation Location (Applicable to some models only) (continued) Dairy Product Bin Store diary foods such as butter, Folding Shelf cheese, etc. Fold a shelf to store large-sized container or food. Door-In-Door Preserve frequently-taken out foods such as beverages, snacks, etc. Extra Space Preserve small foods such as eggs, ham, etc.
-
Page 18: Food Storage Tips
HOW TO USE Storing Frozen Food Food Storage Tips * The following tips may not be applicable NOTE depending on the model. Check a freezer food guide or a reliable cookbook for further information about preparing Wrap or store food in the fridge in airtight and food for freezing or food storage times. -
Page 19: Adjusting The Fridge Shelves
HOW TO USE Storing Frozen Food (continued) Adjusting the Fridge Shelves Packaging The shelves in your fridge are adjustable to meet your individual storage needs. Your model may Successful freezing depends on correct have either glass or wire shelves. packaging. When you close and seal the package, it must not allow air or moisture in or out. -
Page 20: Using The Folding Shelf
HOW TO USE Using the Folding Shelf When Closing the Door You can store taller items, such as containers or bottles, by simply pushing the front half of the shelf underneath the back half of the shelf. Pull the front of the shelf firmly toward you to return to a full shelf. -
Page 21: Big Fresh Zone
HOW TO USE Big Fresh Zone Refitting the Big Fresh Zone drawer Removal of the Big Fresh Zone drawer. Insert the left and right roller of the drawer into the guides whilst the draw is slightly lifted at the front, and push it in gently while Pull the drawer back to the end of its travel. -
Page 22: How To Remove And Refit The Vegetable Box
HOW TO USE How to remove and refit the How to refit vegetable box vegetable box Lift the vegetable box drawer assembly How to remove vegetable box on to an angle and place it into the fridge compartment ready for fitting. While the fridge doors are wide open, take out all the shelves from the fridge compartment. -
Page 23: Extra Space (Multi Collection Corner)
HOW TO USE Extra Space (Multi collection Fridge Basket corner) Preserve drinks like small packs, milk, beer, juice etc. Store small foods like eggs, ham, cheese, etc. Multi-collection corner supporter In & Out Carrier Ideally used to store and carry multiple items to and from the fridge. -
Page 24: Tilting Fresh Basket
HOW TO USE Tilting Fresh Basket Dairy Corner Ideal for storing vegetables soon to be eaten. You can store dairy products such as butter, cheese etc. If you close the fridge door with the dairy corner left open, the fridge door may not close properly. It could also result in damage to the lid. -
Page 25: Door-In-Door Shelf Disassembly
HOW TO USE Door-In-Door Shelf Disassembly Remove screws on both sides of magic (Applicable to some models only) space cover. Raise magicspace cover up and take it out. Hold the bottom of lower basket and raise it up to take it out. Hold the bottom of daily basket and raise it up to take it out. -
Page 26: Adjustable Moving Basket
HOW TO USE Adjustable Moving Basket Ice Maker To make ice cubes, fill the ice tray with It can be moved up and down as necessary, and water and insert in its position. used conveniently. To move Adjustable Moving Basket up or ice Trays down, remove all items from the basket first. -
Page 27: Fresh Zone
HOW TO USE Fresh Zone Freezer Drawer Removal Put food in the fresh zone and keep the cap Pull out the Freezer drawer to the end of its tightly closed for storage. travel (as per below fig) and remove all of the It is possible to keep fresh some food for contents. -
Page 28: Refitting The Freezer Drawer
HOW TO USE Freezer/Fridge basket Refitting the Freezer Drawer You can store small packaged frozen food (Freezer Insert both rollers into the guides with the basket), small packaged refrigerated food or front of the drawer slightly raised and gently beverages (Fridge basket) such as milk, water, push in. -
Page 29: Maintenance
MAiNTENANCE MAINTENANCE Cleaning Both the fridge and freezer sections defrost automatically; however, clean both sections about once a month to prevent odors. Wipe up spills immediately. Always unplug the refrigeration before cleaning. General Cleaning Tips WARNiNg Unplug fridge or disconnect power. Use non-flammable cleaner. -
Page 30: Replacing The Pure N Fresh Filter
MAiNTENANCE Replacing the Pure N Fresh filter Inside Walls (allow freezer to warm up so the cloth will not stick) It is recommended that you replace the Pure N To help remove odors, you can wash the inside Fresh filter: of the fridge with a mixture of baking soda and warm water. -
Page 31: Smart Diagnosis
3 seconds, and the display will count down the time. Once the countdown is over First, call to the LG service center. Only use the and the tones have stopped, resume your Smart Diagnosis feature when instructed to do so conversation with the specialist, who will then by the LG call center agent. -
Page 32: Troubleshooting
TROUBLESHOOTiNg TROUBLESHOOTING Review the Troubleshooting section before calling for service; doing so will save you both time and money. Problem Possible Causes Solutions Fridge and The fridge display control is set Cancel the OFF mode so that the unit Freezer section to OFF (some models). - Page 33 TROUBLESHOOTiNg Problem Possible Causes Solutions Fridge or Freezer Fridge was recently installed. It may take up to 24 hours for each compartment section is too to reach the desired temperature. warm. Air vents are blocked. Rearrange items to allow air to flow throughout the compartment.
- Page 34 TROUBLESHOOTiNg Problem Possible Causes Solutions Interior moisture Doors are opened often or for When the doors are opened often or for long buildup. long periods of time. periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment.
- Page 35 TROUBLESHOOTiNg Problem Possible Causes Solutions Frost or ice Condensation from food with a This is normal for food items with a high water crystals on frozen high water content has frozen content. food (inside of inside of the food package. sealed package).
- Page 36 TROUBLESHOOTiNg Problem Possible Causes Solutions Pulsating or Your fridge is designed to Normal Operation High-Pitched run more efficiently to keep Sound your food items at the desired temperature. The high efficiency compressor may cause your new fridge to run longer than your old one, but it is still more energy efficient than previous models.
-
Page 37: Disposal Of Your Old Appliance
DiSPOSAL OF YOUR OLD APPLiANCE DISPOSAL OF YOUR OLD APPLIANCE 1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. - Page 38 128, Yeoui-daero, Yeongdeungpo-gu, Printed in Korea Seoul, 150-721 Korea...
