- Page 1 20054.EN rev.11 USER MANUAL MPW-54 MPW-54s Read before use! Serial number of centrifuge: ………………………………………………………. For centrifuges with serial no (SN): MPW-54 10054237122 – … MPW-54s 10054s000123 – …...
- Page 2 This manual was prepared with special care. MPW MED. INSTRUMENTS may change the manual at any time and without notice because of improvements, typographical errors, or improvements to facilities All rights reserved. No part of this User Manual may be modified, distributed, published, or reproduced without the prior permission of MPW MED.
-
Page 3: Table Of Contents
Content 1. Symbols used in the manual and on the device ..................4 1.1. Markings on the device .......................... 4 2. Application ............................5 3. Technical specification .......................... 6 3.1. Environmental conditions ........................6 4. Installation ............................7 4.1. Unpacking ............................... 7 4.2. -
Page 4: Symbols Used In The Manual And On The Device
1. Symbols used in the manual and on the device Symbol Explanation WARNING! Warning of potential injury or health risk DANGER! Risk of electric shock with potential for severe injury or death as a consequence DANGER! Biohazard with potential for risk to health or death as a consequence DANGER! Risk of explosion with potential for severe injury or death as a consequence Symbol identifying a medical device for in vitro diagnostic use... -
Page 5: Application
2. Application ▪ The MPW-54/MPW-54s centrifuge is a bench-top non-automatic laboratory centrifuge. ▪ The device is intended for In Vitro Diagnostics (IVD). This means that it is an in vitro diagnostic medical device - in accordance with the Regulation of the European Parliament and of the Council (EU) 2017/746 of 5 April 2017 on in vitro diagnostic medical devices and repealing Directive 98/79/EC and Commission Decision 2010 /227/EU. -
Page 6: Technical Specification
3. Technical specification "MPW MED. INSTRUMENTS" SPÓŁDZIELNIA PRACY, manufacturer Boremlowska 46 Street, 04-347 Warsaw type MPW - 54 MPW – 54s 10054/ 10054/1- 10054/1- 10054/1- 10054/1- 10054/ 10054/1- 10054/1- 10054/1- 10054/1- cat. no (REF) 2-56 56/100 56/110 56/127 2-56/S 56/100/S... -
Page 7: Installation
Key for emergency cover release 17162 Power cord 230V/120V 17866/17867 Fuse WTA T2A 250V 17859 Petroleum jelly 20ml 17201 User manual See page 1 4.2.2. MPW-54s Quantity Name Cat No. (pcs) Centrifuge MPW-54s 10054/2-56/S or 10054/1-56/S or 10054/1-56/100/S or 10054/2-56/110/S or... -
Page 8: Location
(minimum 4 hours). ▪ The supply voltage must match the voltage specified on the rating plate. Laboratory centrifuges by "MPW MED. INSTRUMENTS" are devices with a basic safety class and have a three-wire connection cord with a plug resistant to dynamic loads. -
Page 9: Safety Notes
The use of test tubes not included in the list should be agreed with MPW MED. INSTRUMENTS or its authorized representatives. ▪ Pay attention to the quality and appropriate thickness of the glass test tubes walls. -
Page 10: Filling Tubes
5.3. Filling tubes ▪ Fill test tubes outside the centrifuge. centrifuged substance Centrifugation force ▪ If the manufacturer of the test tube has not specified the maximum level, fill the test tubes so that the centrifuged substance does not run out of the vessel during centrifugation. -
Page 11: Safety Hints
Examples of correct and incorrect arrangement of test tubes in the rotor: 5.5. Safety hints ROTOR MAINTENANCE ▪ In order to increase the durability of gaskets, threaded places, rotor pins, undercuts for pins in containers, they must be cleaned, and then it is necessary to lubricate them with the technical petroleum jelly supplied with the device (catalog number 17201). -
Page 12: Operating Conditions
5.6. Operating conditions GENERAL REMARKS ▪ Only original equipment of centrifuges and spare parts should be used. ▪ In case of a malfunction of the centrifuge, the MPW MED factory service should be used. INSTRUMENTS or its authorized representatives. ▪ It is not allowed to start the centrifuge if it is not installed correctly or the rotor and accessories are not properly mounted. -
Page 13: Work Safety
5.8. Work safety The centrifuge should be inspected by an authorized service at least once a year (after the warranty period). Special circumstances, e.g., corrosive environment, may be the reason for more frequent checks. Tests should end with issuing a validation protocol, which specifies checking the technical condition of a laboratory centrifuge. -

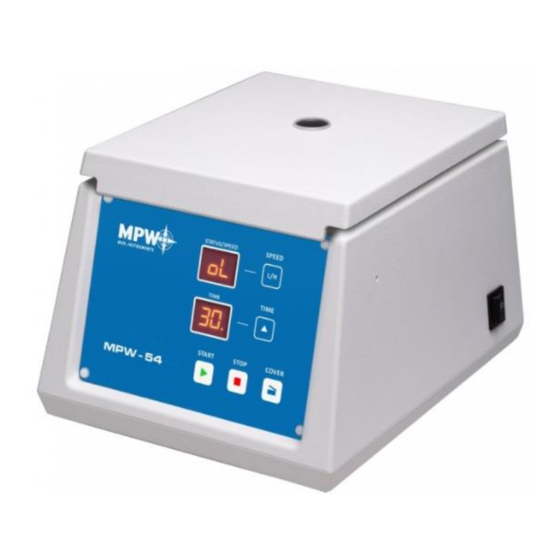

Page 14: Product Description
6. Product description 6.1. Product Design and Appearance The new generation of laboratory centrifuges "MPW MED. INSTRUMENTS" is equipped with modern microprocessor controllers, very durable and quiet brushless asynchronous motors and equipment that meets modern user requirements. The centrifuge has a rigid self-supporting structure. -
Page 15: Name Plate
6.2. Name plate The data concerning the device should be read from the rating plate located on the rear wall of the centrifuge (the picture below is an example). Centrifuge model Rated frequency Catalog number 10 Minimum speed Maximum speed 11 Manufacturer's logo Rated voltage 12 Manufacturer's information... -
Page 16: Increase In Temperature
6.6. Increase in temperature In uncooled centrifuges, the temperature in the rotor chamber, rotor and sample can increase to above 40°C, based on the run time, g-force (rcf)/speed and ambient temperature. 7. Centrifuging Power switching ON/OFF is carried out with master switch situated on the side wall of the centrifuge. All settings on the centrifuge are done by means of the control panel. -
Page 17: Signaling States Of Centrifuge
7.4. Signaling states of centrifuge ▪ Cover is locked ▪ Cover is open ▪ Rotor is running (speed is increasing or constant) – mark turn counter-clockwise ▪ Rotor is running (breaking) – mark turn clockwise ▪ Rotor is running, time is counting – dot next to time indication is blinking ▪... -
Page 18: Maintenance
▪ Centrifuging in low rotational speed Centrifuge has memory for remembering the last settings even after turning off and turn on the centrifuge. 8. Maintenance 8.1. Cleaning of the centrifuge ▪ Pull the mains plug before cleaning. ▪ Before any cleaning or decontamination process other than that is recommended by the manufacturer, the user has to ask the manufacturer if the planned process does not damage the device ▪... - Page 19 ▪ The rotor, including the fixing screw, buckets and round carriers must be regularly cleaned to prevent corrosion. ▪ Cleaning of the accessories shall be carried out outside of the centrifuge once every week or still better after each use. For cleaning them one should use neutral agent of pH value 6÷8.
-
Page 20: Sterilization
8.3. Sterilization Plastics - legend to abbreviations polystyrene ethylene/chlorotrifluoroethylene ECTFE styrene-acrylonitrile ethylene/tetrafluoroethylene ETFE polymethyl methacrylate polytetrafluoroethylene PMMA PTFE polycarbonate tetrafluoroethylene/perfluoropropylene polyvinyl chloride tetrafluoroethylene/perfluoroalkylvinylether acetal polyoxymethylenel fluorcarbon rubber low density polyethylene ethylene propylene diene PE-LD EPDM high density polyethylene natural rubber PE-HD polypropylene silicon rubber... - Page 21 ▪ If you want to keep the hermetic seals, replace the sealing rings after each autoclave. Chemical resistance of plastics autoclaving autoclaving ° ° 20 min 20 min ○ ● ○ ECTFE, ETFE ● PMMA ○ PTFE ● ● FEP, PFA ●...
-
Page 22: Chemical Resistance
8.5. Chemical resistance Chemical resistance of plastics ○ ● ○ ○ ○ ○/● ○/● ○ ○ ○ ○ ● ● ○ ○ ○ ○ ○ ○/● ○ ○ ○ ○ ● ● PMMA ○/● ○ ○ ○ ○ ○/● ○ ○/●... -
Page 23: Troubleshooting
9. Troubleshooting Most errors can be corrected by switching the centrifuge off and on again. In the event of short-term power failures during operation, centrifugation is not continued. In order to centrifuge after power is restored, restart the centrifuge by pressing the START key. The most common errors and how to fix them are shown below 1. -
Page 24: Guarantee
10. Guarantee Manufacturer grants to the Buyer the guarantee on conditions specified in the Guarantee Certificate. Buyer forfeits the right to guarantee repair when using the device inconsistently with the User manual provisions, when damage results from the User’s fault. Repairs should be conducted in authorized service workshops, granted with the MPW Certificate. -
Page 25: Disposal
16.06.2023 Updating of the description in the technical data table. Updating the CE declaration of conformity, equipment list and nameplate. 10 30.06.2023 Addition of MPW-54s centrifuge on title page. 11 06.07.2023 Addition of MPW-54s to selected paragraphs... -
Page 26: Manufacturer's Info
14. Manufacturer’s info "MPW MED. INSTRUMENTS" SPÓŁDZIELNIA PRACY Boremlowska 46 Street 04-347 Warsaw tel. (+48) 22 610 56 67 (sales department - POLAND) (+48) 22 879 70 46 (sales department - outside POLAND) (+48) 22 610 81 07 (service) (+48) 22 610 55 36 e-mail: mpw@mpw.pl...
