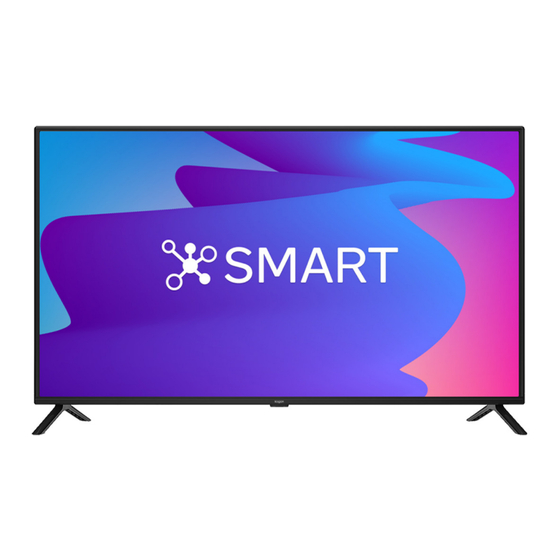

- Page 1 USER GUIDE 40” SMART FULL HD LED TV SERIES 7 AF7500 (KALED40AF7500STA)
-
Page 2: Table Of Contents
CONTENTS SAFETY AND WARNINGS Safety and warnings ......02 Settings ............. 11 Thank you for buying this Kogan product. Please read all safety instructions before using your TV. Channel menu ........11 WARNING Components .......... 04 Picture menu ........11 Never place a television set in an unstable location. - Page 3 SAFETY AND WARNINGS cont’d CAUTION: Connecting the power cord Refer to the table below as a guide to the symbols and warnings which may be on your TV. Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE circuit which powers only that appliance and has no additional outlets or branch circuits.
-
Page 4: Components
COMPONENTS A Kogan 40” Smart D M4 x 20mm screw (x4) Full HD LED TV NOT INCLUDED E AAA battery (x2) B Remote control Phillips head screwdriver, antenna F Quick-start guide cable, broadband internet connection. C Stand (x2) G Warranty card... -
Page 5: Product Overview
PRODUCT OVERVIEW Inputs Audio in Stereo (2.0) audio input. Usually paired with stereo audio inputs Composite (red and white cables), the single-wire video in composite cable provides video signal. Three cables (“Y,” “Pb” and “Pr”) provide a Component higher quality connection than the single- video in wire composite cable (“Y”) commonly used to hook up earlier AV equipment. -
Page 6: Assembly And Installation
ASSEMBLY AND INSTALLATION 3. Turning TV on BEFORE YOU GET STARTED a. Plug the power cord into a suitable power outlet. The standby will display Spread cushioning flat to lay the TV on. This will help to prevent damage. a light, showing that the TV is receiving power. b. -
Page 7: Remote Control
REMOTE CONTROL OVERVIEW Power, press to enter or exit standby Skip to previous in media mode; mode Index page 2 II Pause in media/PVR mode; Skip to next in media mode; Timeshift function in DTV mode; Reveal hidden information in some MIX mode in teletext teletext pages / / / Navigation buttons for... -
Page 8: Power Button
USING REMOTE CONTROL / POWER BUTTON 1. Remote control assembly 3. Using Power button a. Open the battery compartment cover on the back side. TV off b. Insert two 1.5V AAA size batteries, making sure to match the polarity • Tap to power on markings (+ / -) of the batteries with the diagram inside TV on the compartment. -
Page 9: First Time Setup
FIRST TIME SETUP When turning the TV on for the first time, the Setup Wizard screen will appear. Following these options, the Auto Auto Tuning Use the ▲, ▼ and OK buttons to navigate the following options. Tuning screen will appear. Ensure you Scan Mode –>... -
Page 10: Basic Operation
BASIC OPERATION Selecting channels Colour buttons There are two ways to select channel: In some menus and apps, the remote control’s four colour buttons ( ) can be used. 1. Using number buttons followed by the button on the remote control enter to select channel directly. -
Page 11: Settings
SETTINGS CHANNEL Channel If User is selected as the Picture mode, the following options are adjustable: Auto tuning • Contrast: Adjust the colour depth level in the picture Auto Tuning The auto tuning function will search for and save all •... -
Page 12: Sound Menu
SETTINGS (cont’d) SOUND NETWORK Network Sound mode Connection type Connection Type Wired Choose from a selection of presets (Movie, Music, News, Game, Sports, Choose between ‘Wi-Fi’ or ‘Wired’. Standard) or select ‘User’ mode to configure your own custom settings. IPv4 Auto WI-FI OPTIONS IPv6... -
Page 13: Lock Menu
SETTINGS (cont’d) HBBTV Setting Toggle the HBBTV function on/off. If switched off, catch-up features will not be Channel available. Picture Please enter password! Sound Country Network Set the current country. By default this is set as Australia. System Clear Cancel Lock HDMI CEC Timer... -
Page 14: Support Menu
SETTINGS (cont’d) PVR MODE Auto sleep NOTE Sets the time when the TV will enter standby mode due to inactivity. Select • Don’t connect or disconnect any USB device while in USB playback mode. from Off, 4 hours, 5 hours, or 6 hours. •... -
Page 15: Schedule Recording
PVR MODE (cont’d) MEDIA PLAYBACK To hide the information bar at the bottom of the screen, press the Record To access media playback mode, insert a USB drive containing files of the button once more. following type into the TV’s USB input port. Next, from the Home page, select Media in the Source menu. -
Page 16: Media Mode Settings
MEDIA MODE SETTINGS MUSIC PLAY OPTIONS Background music Toggle ‘on’ to play your music files while displaying photos. Audio files must be Stop in the same folder. Stop playback and return to previous media folder. Play mode Settings (directly accessible via Menu button) •... -
Page 17: Apps
APPS Press the Home ( ) button on the remote to display the main interface. Use the directional buttons on your remote control to navigate through the pages, and press the OK button to launch selected app. For Netflix and YouTube, you can launch the apps directly using the remote control hotkeys. -
Page 18: Wall-Mount Installation
WALL MOUNTING d. Use a mounting bracket (A) as a guide to mark the positions for the four Wall mount kit not included. Steps below are provided as an optional holes on the wall with a pencil. alternative to the supplied base-mounts. e. -
Page 19: Specifications
SPECIFICATIONS Audio USB Media Playback Speakers 2 x 8W USB Media Playback Formats JPG, JPEG, PNG, BMP, MP3, DD, DD+, AAC, MPG, MPEG4, H.265, VP9 Connectivity Inputs Ethernet (RJ45) Composite (AV) HDMI HDMI HDMI-ARC Yes | HDMI 1 HDMI-CEC Outputs 2 x USB 2.0 3.5mm Stereo Audio Wi-Fi... -
Page 20: Troubleshooting
• Check another channel or input port • Check that MUTE hasn’t been turned • Try a different device connected to the same cable and port • Perform a factory reset on your TV © Copyright 2019, Kogan.com – KALED40AF7500STA UM 09-19...
