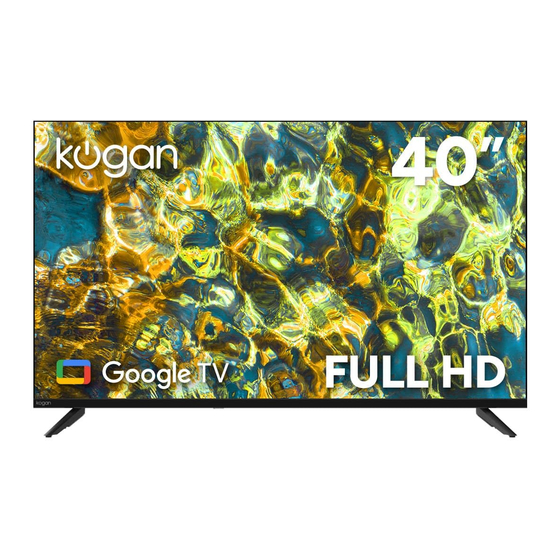

- Page 1 QUICK START GUIDE 40" F HD LED Smart Google TV SERIES 9 9 KALED40F98VA )
- Page 3 COMPONENTS 43" UH SERIES 9 U94 SERIES 9 U94V (KALED43U94VA) (KALED43U94VA) A Kogan 40” Smart HDR D Ba4 x 18mm screw (x4) FHD LED TV E AAA battery (x2) B Remote control F Quick-start guide C Stand (x2) G Warranty card NOT INCLUDED Phillips head screwdriver, antenna cable, broadband internet connection.
-
Page 4: Remote Control Overview
REMOTE CONTROL OVERVIEW Switches the TV between on and standby mode. Indicator light. Mute or restore your TV sound. INFO: Displays the present channel information such as the current time and channel name. Apps: Open the Apps page. Inputs: Display/S elect signal source options. Google Assistant: Talk to Google to control your TV using your voice. -
Page 5: Assembly And Installation
ASSEMBLY AND INSTALLATION BEFORE YOU GET STARTED Spread cushioning flat to lay the TV on. This will help to prevent damage. 1. Stand assembly a. Attach stands to base of TV. Insert two 18 mm screws for each stand, and use Phillips head screwdriver (not supplied) to tighten. - Page 6 ASSEMBLY AND INSTALLATION 3. Connect to antenna Connect an antenna cable (not supplied) via the 'ANT' input port at the back of the TV. Ensure the antenna cable is also connected to a working antenna,either via an antenna wall socket in your home, or directly. Antenna wall socket Antenna cable...
-
Page 7: Initial Setup
INITIAL SETUP 1. Initial Setup For the first initial setup, on-screen setup wizard will guide you through setting up your TV. Please follow the guide to setup your TV correctly. 1.1 Language select Use / buttons to select system languages, then press【OK】to confirm. 1.2 Region or Country select Use / buttons to select your region or country, then press【OK】to confirm. - Page 8 INITIAL SETUP NOTE:This interface is pushed by Google Service according to the actual region. Some regions may not have this interface. The actual push by Google Service prevails. 1.3.2 Set up basic TV Press “OK” button enter to the next page to Select your wifi network. 1.3.2.1 Configure the wifi network Press / buttons to select Wi-Fi you wish to connect to,enter the password and then confirm to connect.
- Page 9 INITIAL SETUP 1.6 Pairing Bluetooth Remote 1.Press ‘BACK ’ and ‘Home ’ simultaneously on remote control to enter the Bluetooth pairing mode. The Indicator light on remote control will flash when starting the pairing mode. 2.Select the ‘Skip’ icon to skip the pairing mode. 1.7 Password set up Press “OK”...
- Page 10 INITIAL SETUP 1.9 Chromecast built-in Select On/Off to make Chromecast built-in always available. 1.10 Tuner mode Setting Select Antenna/Cable/Satellite to scan TV channel. If you select “Skip”, the channel scan could be performed in menu. 1.11 Setup completed and Disclaimer Terms 1.12 Play Auto Installs Select install or un-install the recommended apps and Google apps by using this process.
- Page 11 HOME 2. HOME Once you have completed initial setup, you will now enter the home by screen or press button to display the homepage. ② ⑥ ① ③ ④ ⑤ *Some countries home screen UI may display different as above image,please refer to the product for details.
- Page 12 SETTINGS 3.Settings Allows to set various performance of your TV . 1.Press / button to select “Settings” which is in the upper right corner of the screen. 2.Press / button to select the option which you want to adjust in the Settings menu. 3.Press【OK】to enter.
- Page 13 SETTINGS About 1.Press / button to check additional information such as System update, Device name, Restart, Status, and more. 2.Press button to return to the previous menu. Press button to exit the menu. * The above pictures are for reference only, please refer to the product for details. Factory reset If Factory reset is selected, it will erase all data from your device’s internal storage, including: your Google Account, system and app data and settings, and downloaded apps.
- Page 14 TV SOURCE SETTING 4.Tv Source setting To enter TV source in Homepage: 1.Press button to select input source. 2.Press button, then select “Channels” and select “New Channels Available” to enter.
- Page 15 ACCOUNTS SIGN-IN 5. Accounts & sign-in To have access and to download applications, you must sign in with a Google Account. Once you open Google Play, you will be promted to sign in or create a new account. Once you have signed in, you will be brought to the below page, scroll through the list of applications available for download or go to the search button, and search via entering text or by asking Google on your voice remote.
-
Page 16: Basic Troubleshooting
User Manual Select the picture menu, then for this TV, head online to adjust the colour and tint submenus help.kogan.com Picture rolls vertically Check all connections Blurred or snowy picture, distorted sound Check direction, location and... - Page 17 NOTES...
- Page 18 Need more information? This is a Quick Start Guide...
