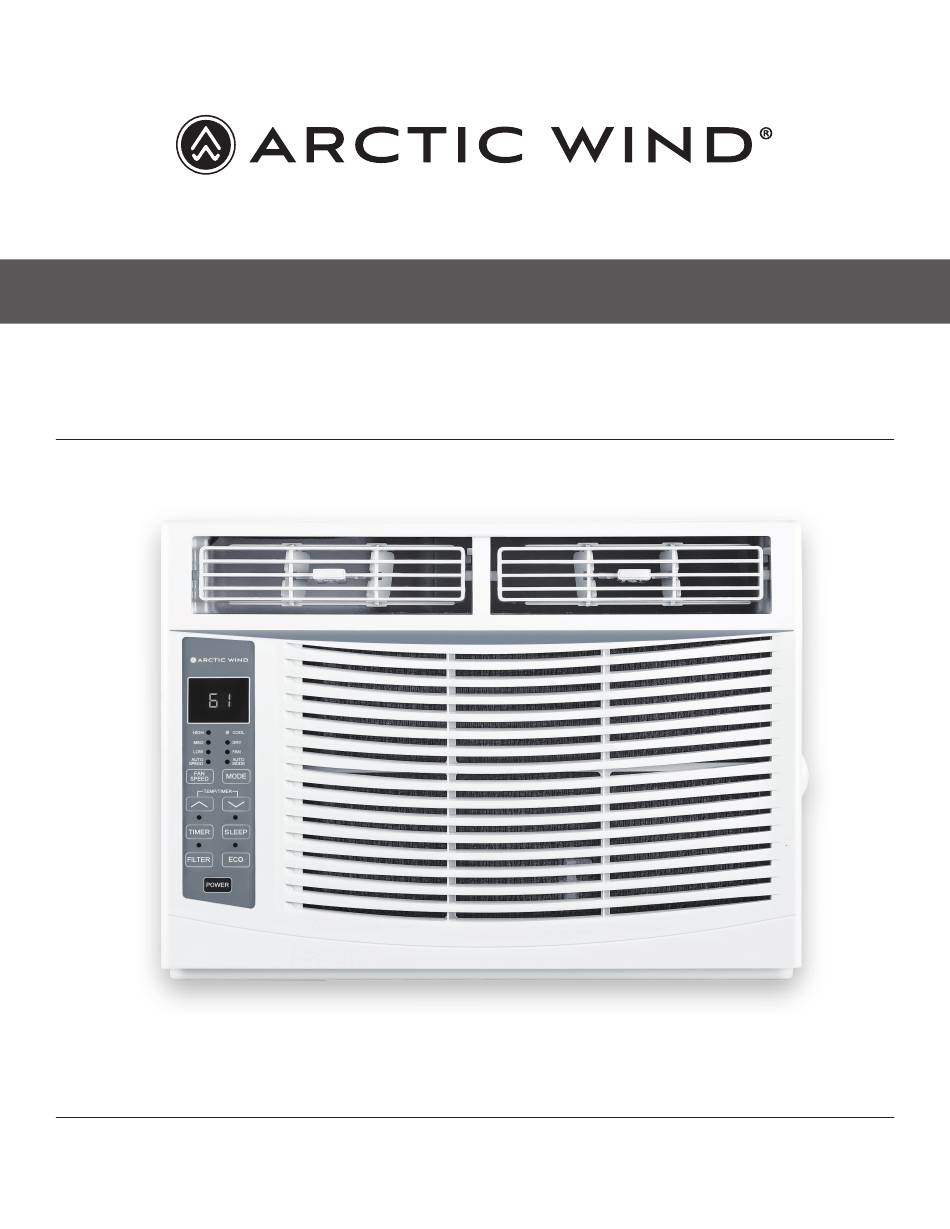

- Page 1 OWNER’S MANUAL WINDOW AIR CONDITIONER MODEL 2AW6000DA...
- Page 2 C C ON ONS S U U M M E E R R P PR R OD ODUC UCT T I IN N F F ORM ORMA A T T I I ON For your own r For your own recor ecords, please attach a copy of your sales r ds, please attach a copy of your sales receipt to this manual and complete the following: eceipt to this manual and complete the following:...
- Page 3 TABLE OF CONTENTS INTRODUCTION TO REFRIGERANTS R32 ..............IMPORTANT SAFETY INSTRUCTIONS................. ELECTRICAL REQUIREMENTS ................... INSTALLATION HARDWARE ..................INSTALLATION & ASSEMBLY INSTRUCTIONS ............USING YOUR AIR CONDITIONER ................................ CARE AND MAINTENANCE ..................TROUBLESHOOTING ....................
- Page 4 INTRODUCTION TO REFRIGERANTS R32 The refrigerants used for air conditioners are environmentally friendly hydrocarbons R32. This kind of erant is combustible and odorless. Moreover, it can burn and explode under certain condition. However, there will be no risk of burning and explosion if you comply with the following table to install your air conditioner in a room with an appropriate area and use it correctly.
- Page 5 below: • Do Not use an extension cord. • Plug into a grounded 3 prong outlet. • Unplug the air conditioner before any maintenance. • Do Not remove the ground prong. • Use two or more people to move and install the air •...
- Page 6 Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do Not remove the ground prong. Do Not use an adapter. Do Not use an extension cord. Failure to follow these instructions can result in electrical shock, fire, or even death.
- Page 7 INSTALLATION HARDWARE INCLUDED QTY. TOOLS NEEDED Remote Control < (With 2 AAA Batteries) Phillips Head Screwdriver Top Mounting Rail (With foam) Lock Frame Flat Head Screwdriver Accordion Panels (With "left" & 'Right" marked on the front face) Drill & 3/16ʺ Drill Bit Sash Lock (Two holes) Window Sash Seal...
- Page 8 INSTALLATION & ASSEMBLY INSTRUCTIONS (CONT.) FIG. 1 23" to 36" 584 mm to 914 mm 14 1/2" min EXTERIOR (368mm) STOOL 14½ OFFSET WALL SILL INTERIOR WALL Head Packaging Foam Unit...
- Page 9 INSTALLATION & ASSEMBLY INSTRUCTIONS (CONT.) Place the air conditioner on the sill with the bottom mounting rail against its back edge. Center the air conditioner and close the window securely behind the top mounting rail. The air conditioner should be slightly tilted to the outside area. NOTE: Check that air conditioner is tilted back approximately ¾”...
- Page 10 INSTALLATION & ASSEMBLY INSTRUCTIONS (CONT.) FIG. 13 Head For added insulation, cut the supplied insulation foam to the width of the window. Insert the foam between the window sashes to prevent outside air and object from getting into the room. (See FIG. 14) Place the frame lock between the extended accordion panels and the window sill as shown in FIG.
- Page 11 INSTALLATION & ASSEMBLY INSTRUCTIONS Introduction to Refrigerants R32 Before installing the appliance, you must read the manual carefully to get the safety information and notes. When filling the combustible refrigerant, any of your rude operations may cause serious injury or injuries to human body or bodies and object or objects. A leak test must be done after the installation is completed.
- Page 12 INSTALLATION & ASSEMBLY INSTRUCTIONS Introduction to Refrigerants R32 1. Site Safety Open Flames Prohibited Ventilation Necessary 2. Operation Safety Open Flames Prohibited Mind Static Electricity Must Wear Protective Clothing and anti-static gloves Don't use mobile phone 3. Installation Safety Refrigerant Leak Detector Appropriate Installation Location The left picture is the schematic diagram of a refrigerant leak detector.
- Page 13 Digital Display: Shows the set temperature. Operation modes are: Cool, Dry, Fan, and Auto. Time is displayed using the timer setting. 4. Sleep Press the SLEEP button, all of the display lights will turn off after a while, but the sleep light is always on.
- Page 14 5. Eco Button: Press the FAN SPEED button 9. Fan Speed Button: to select the fan speed. In COOL MODE you can choose the following settings: HI, MED, LO, or AUTO. In Fan MODE you can choose from HI, MED, and LO. Directional Louvers: Use the horizontal wheels to control horizontal airflow and the air deflectors...
- Page 15 USING YOUR REMOTE CONTROL DISPLAY: POWER: MODE: Press the button to select the mode of operation, AUTO, COOL, DRY, FAN and HEAT Note: The HEAT mode is inactive for COOL ONLY models. Press and hold the MODE button for more than 5 seconds to delete or add the HEAT mode on remote.
- Page 16 CARE AND MAINTENANCE Clean your air conditioner to keep it looking new, minimize dust build up and for optimal performance. Power off and unplug the air conditioner to prevent shock or fire hazard. The cabinet and front panel of the air conditioner may be dusted The air filter should be checked at least once a with an oil-free cloth or wiped down with a month to see if it needs cleaning.
- Page 17 Check that there is no damage to the plug fuse / circuit breaker box and replace the fuse or reset the breaker. The temperature setting may not be set correctly. See "The Air Conditioner is Freezing Up" below. Battery Size: AAA - NOTE: Do not mix old and new batteries or different types of AAA batteries.
- Page 18 For proper water drainage, make The air conditioner is not correctly sure the air conditioner is slightly pitched towards the outside. pitched downwards from the front of the unit to the rear (Refer to installation instructions). NOTE A highly recommended troubleshoot for any issue in general consists of turning off unit and unplugging for 5 minutes. It is also recommended to try another wall outlet.
- Page 20 5401 Dansher Road Countryside, IL 60525 855-663-9463 support@arcticwindac.com www.arcticwindac.com Printed in China 0121_M528...
