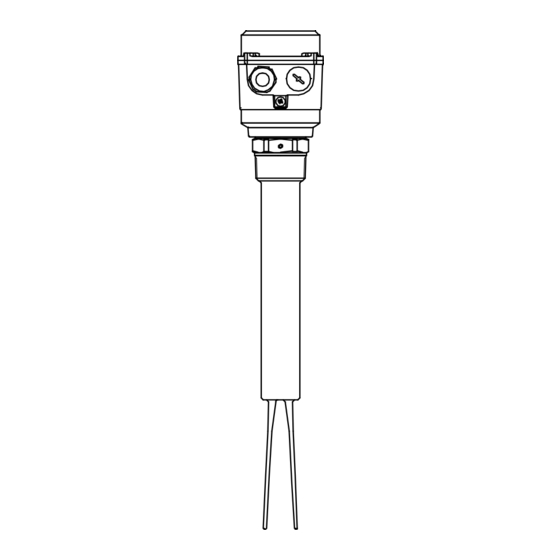

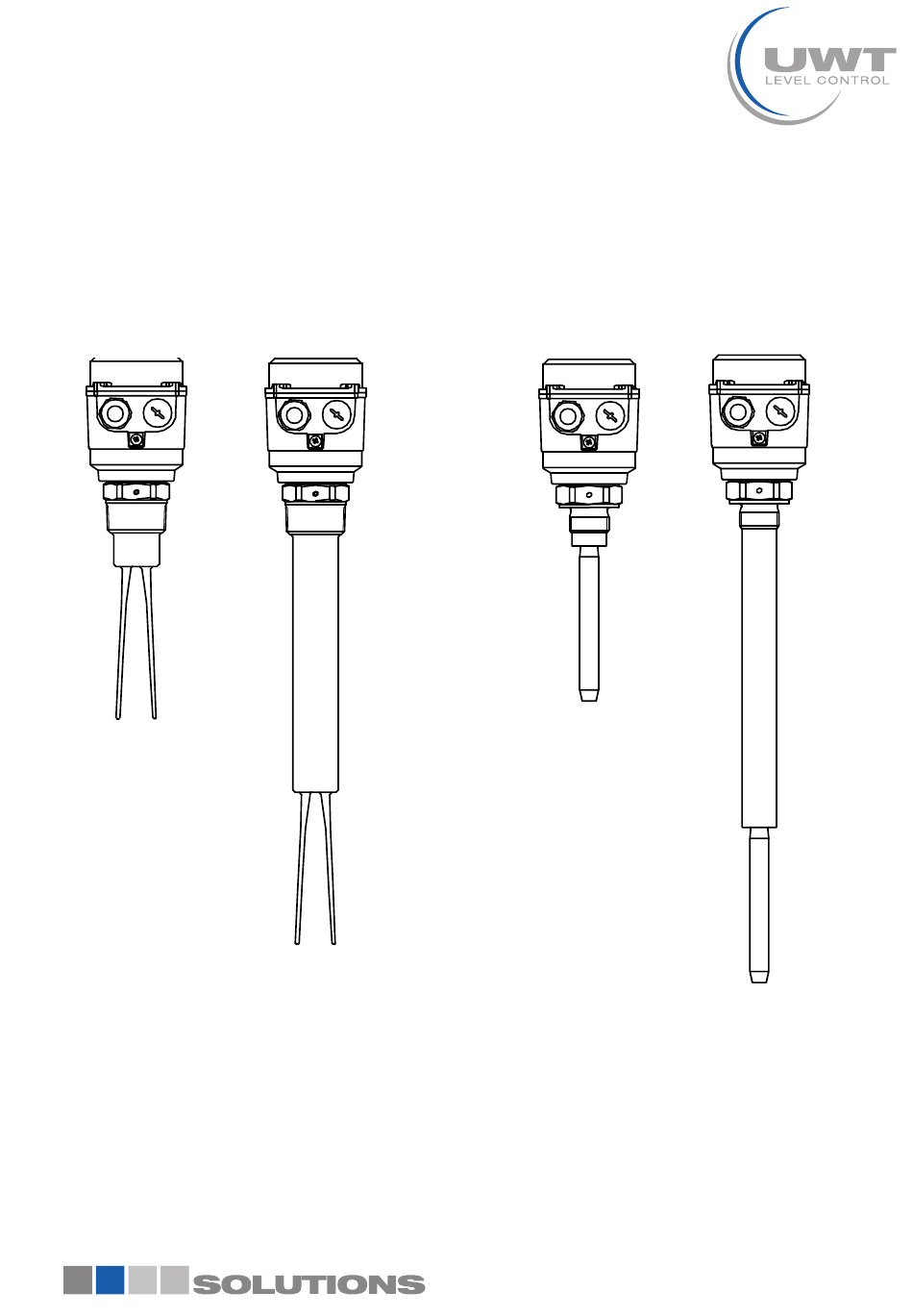

- Page 1 Vibranivo Mononivo ® ® Series Series VN 4000 MN 4000 Instruction manual 010516...
- Page 2 UWT GmbH Westendstraße 5 Tel.: +49 (0)831 57123-0 Internet:www.uwt.de D-87488 Betzigau Fax: +49 (0)831 76879 E-Mail: info@uwt.de Scope of this Types VN 4020 4030 instruction MN 4020 4030 manual: Approval CE / TR-CU ATEX 1/2D IEC-Ex t IIIC Electronic modules Relais (DPDT) PNP...
-
Page 3: Table Of Contents
Table of Contents Safety /warning notes Page Fields of application Page Technical Data Page Application Page Installation Page Spare parts Page Electrical connection Page Switching logic Page Maintenance Page ATEX / IEC-Ex Notes Page... -
Page 4: Safety /Warning Notes
Safety /warning notes Installation, maintenance and commissioning may be accomplished only by qualified technical personnel. For terminal connection of the device, the local regulations or VDE 0100 (Regulations of German electrotechnical Engineers) must be observed. All field wirings must have insulation suitable for at least 250V AC. The temperature rating must be at least 90°C (194°F). -
Page 5: Technical Data
Technical Data °C VN 4020 R 1 1/2“ NPT 1 1/4“ NPT 1 1/2“ 1.4541 (321) 1.4581 (316) 1.4404 (316L) 1.4581 (316L) °C -1 .. +16bar -1 .. +16bar (-14.5 .. +232psi) (-14.5 .. +232psi) ~ 1,7kg (3.7 lbs) ~ 2,4kg (5.3 lbs) - Page 6 °C VN 4030 R 1 1/2“ NPT 1 1/4“ NPT 1 1/2“ 1.4541 (321) 1.4571 (316TI) 1.4404 (316L) 1.4581 (316L) °C -1 .. +16bar -1 .. +16bar (-14.5 .. +232psi) (-14.5 .. +232psi) ~1,7kg (3.7lbs) ~2,4kg (5.3lbs) +1,9kg/m +1,9kg/m (+4.2 lbs per 39.9“) (L) (+5.5 lbs per 39.9“) (L)
- Page 7 °C MN 4020 G 1" G 1 1/4" G 1 1/2“ NPT 1" NPT 1 1/4" NPT 1 1/2" 1.4301 (304) 1.4541 (321)/ 1.4404 (316L) °C -1 .. +16bar -1 .. +16bar (-14.5 .. +232psi) (-14.5 .. +232psi) ~ 1,3kg (2.9 lbs) ~ 2,0kg (4.5 lbs)
- Page 8 °C MN 4030 G 1" G 1 1/4" G 1 1/2“ NPT 1" NPT 1 1/4" NPT 1 1/2" 1.4301 (304) 1.4541 (321)/ 1.4404 (316L) °C -1 .. +16bar -1 .. +16bar (-14.5 .. +232psi) (-14.5 .. +232psi) ~1,3kg (2.9lbs) ~2,0kg (4.5lbs) +1,3kg/m +1,3kg/m...
- Page 9 °C 60°C (140°F) 40°C (104°F) process process -40°C 60°C 150°C (-40°F) (140°F) (302°F) -40°C (-40°F) 60°C ø 50mm (140°F) (ø 1.97“) process -40°C 150°C process (-40°F) (302°F) -40°C (-40°F)
- Page 10 Sensitivity VN 4000 >30 g/l >150 g/l 1g/l = 0.06 lb/ft³ MN 4000 >20 g/l >80 g/l >150 g/l >300 g/l 1g/l = 0.06 lb/ft³ Bulk material VN 4000: d < 8mm (0.31“) MN 4000: d < 20mm (0.79“)
-
Page 11: Application
Application VN 4020 MN 4020 VN 4020 <600N 200mm MN 4020 <400N (7.87“) VN 4020 Mech. load of the sensor Protective angle (canopy) in case of high mechanical load... - Page 12 VN 4030 MN 4030 < 250Nm α max. L / mm ( ” ) < 5° 4.000 (157.5 ) < 45° 1.200 (47.2 ) > 45° 600 (23.6 ) < 250Nm α Mech. load of the sensor Sliding sleeve: Tighten straining screws with 20Nm...
-
Page 13: Installation
Assembly Fixing Threads Teflon tape or flat gasket 80Nm Fixing Flanges Gasket... - Page 14 Fixing EHEDG 100Nm (1) Certified flush welding socket must be used (2) Metal-metal support without any gap (3) Sealing ring (4) Welding (observe hygiene requirements)
- Page 15 Alignment VN 4000 (1) Ingress protection IP 66...
- Page 16 Treatment VN 4000 MN 4000...
- Page 17 Option: Weather protection cover for Ex only approved for Zone 22...
-
Page 18: Spare Parts
Spare parts VN 4000 19...230V 50/60 Hz pl408265 19...40V DC 18...50V DC PNP pl408266 MN 4000 21...230V 50/60 Hz pl405265 22...45V DC 18...50V DC PNP pl405266... -
Page 19: Electrical Connection
Electrical connection All electronic modules: Over voltage category II Relay DPDT VN 4000 MN 4000 max. 4mm² (AWG12) 3 4 5 max. 10A, HBC, 250V, T/F AC max. 250V, 8A DC max. 30V, 5A ± ± VN 4000: 19...230V 50-60Hz 22VA 19... - Page 20 VN 4000 MN 4000 max. 4mm² (AWG12) 1 2 3 max. 0,4A max. 4A, 250V, T/F ± 18...50V 0,5A Power supply, including 10% from EN 61010...
-
Page 21: Switching Logic
Switching logic VN 4000 MN 4000 3 4 5 6 7 8 3 4 5 6 7 8 3 4 5 6 7 8 3 4 5 6 7 8 (1) = Relay DPDT (2) = PNP... -
Page 22: Maintenance
Maintenance Cleaning VN 4000 MN 4000... -
Page 23: Atex / Iec-Ex Notes
ATEX II 1/2D + IEC-Ex t IIIC Da/Db Notes Permitted relative pressure -0,2...+0,1bar (-2.9…+1.45psi) Zone borders VN 4030 VN 4020 MN 4020 MN 4030 (1) Category (2) EPL (IEC-Ex) (3) Zone... - Page 24 Ambient temperature max. Surface temperature VN 4000 MN 4000 110°C (230°F) 115°C (239°F) 60°C 120°C (248°F) 120°C (248°F) (140°F) 130°C (266°F) 130°C (266°F) 140°C (284°F) 140°C (284°F) 150°C (302°F) 150°C (302°F) Installation A pull relief must be provided Connect with equipotential bonding of the plant...
- Page 25 ATEX / IEC-Ex: Further Remarks For installation and field wiring the respectively valid installation regulations of the respective country must be observed. Commissioning only with closed lid. Do not remove the lid (cover) while circuits are alive. Before opening the lid take care, that no dust deposits or whirlings are present. The installation has to be carried out in a way, that mechanical friction or impact does not cause sparks between the aluminium enclosure and steel.
