IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or
require any replacement fittings please contact
Customer Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is
found to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
• Wall fixings are not included.
• We recommend the use of the wall attachment bracket/strap provided for safety reasons.
• Not suitable for use in bathrooms.
PRODUCT INFORMATION
• Made from MDF with a painted finish.
• Made in China.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break down the lacquer finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration
or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if
necessary.

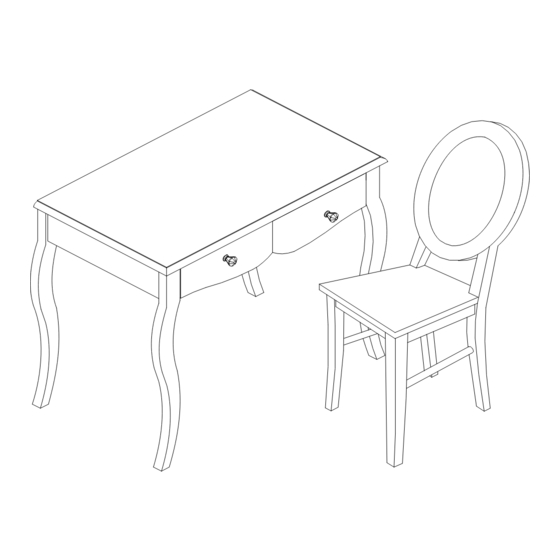

833978 SOPHIE DRESS SET
ASSEMBLY INSTRUCTIONS.
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for Next SOPHIE 833978
Summary of Contents for Next SOPHIE 833978
- Page 1 833978 SOPHIE DRESS SET ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
- Page 2 FITTINGS PARTS (7) Drawer Back (9) Drawer Bottom Panel x 2 Panelx 2 STEP ONE 1. Insert 2x cambolts (A) into back panel 4. 2. Attach back panel 4 to bottom panel 3. 3. Insert 2 x camlocks (B) to bottom panel 3, ensure the arrow indicator is pointing towards the panel edge before tightening with a screwdriver.
- Page 3 STEP THREE 1. Insert 2 x wooden dowel (C) and 4x cambolts (A) to side panel 2-L. 2. Attach side panel 2-L to back panel 4 and bottom panel 3. 3. Insert 4 x camlocks (B) to bottom panel 3 and back panel 4, ensure the arrow indicator is pointing towards the panel edge before tightening with a screwdriver.
- Page 4 STEP SIX 1. Attach drawer side panels 8 (both L&R) to drawer back panel 7 with 4 x Screws (D) and tighten with a screwdriver. 2. Insert the drawer bottom panel 9 into grooves of drawer side panels 8(both L&R). 3.
- Page 5 Warning :Always ensure the area to be drilled is free from hidden electrical wires, water and gas pipes. NB:Wall fixings are not included-please source suitable fixings for your wall type. If in doubt please Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 5 of 5...
