IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found
to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
• Wall fixings are not included.
• We recommend the use of the wall attachment bracket/strap provided for safety reasons.
PRODUCT INFORMATION
• Made from MDF with a painted finish.
• Made in China.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break down the lacquer finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching
or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.

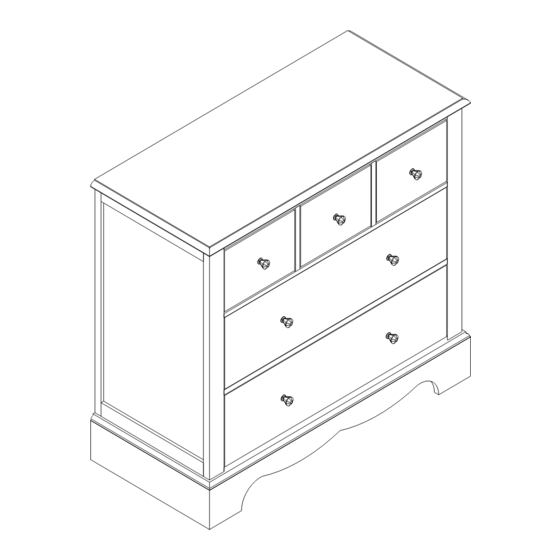

836023 SOPHIE CHEST
ASSEMBLY INSTRUCTIONS.
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for Next SOPHIE 836023
Summary of Contents for Next SOPHIE 836023
- Page 1 836023 SOPHIE CHEST ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
- Page 2 FITTINGS C x 26 H x 7 J x 2 PARTS (4) Back Panel x 1 (5) Back Panel x 1 (14) Drawer Side (17) Drawer Front (19) Drawer Side Panel(L/R) x 4 Panel x 3 Panel(L/R) x 6 STEP ONE 1.
- Page 3 STEP TWO 1. Insert 2 x wooden dowels (J) into bottom frame 7. 2. Attach lower front rail 11 to bottom frame 7 with 3 x screws (F) and tighten with a screwdriver. STEP THREE 1. Insert 4 x wooden dowels (C) into shelf panel 6. 2.
- Page 4 STEP FIVE 1. Insert 2 x wooden dowels (C) and 2 x cambolts (A) into Side Panel 2-L. 2. Attach shelf panel 8 and back rail 9 to side panel 2- 3. Insert 2 x camlocks (B) into shelf panel 8 and back rail 9.
- Page 5 STEP EIGHT 1. Insert 8 x wooden dowels (C) and 8 x cambolts (A) into top panel 1. 2. Attach top panel 1 to the assembled components. 3. Insert 8 x camlocks (B) into side panel 2-L, side panel 2-R and middle divider panels 3 (x2). Tighten all camlocks with a screwdriver.
- Page 6 STEP TEN 1. Attach drawer side panels 19 (both L&R) to drawer back panel 18 with 4 x screws (F) and tighten with a screwdriver. 2. Insert the drawer bottom panel 20 into the grooves of drawer side panels 19 (both L&R). 3.
- Page 7 NOTE: Wall fixings are not included. Please source suitable fixings for your wall type. If in doubt please consult a qualified trades person. Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 7 of 7...
