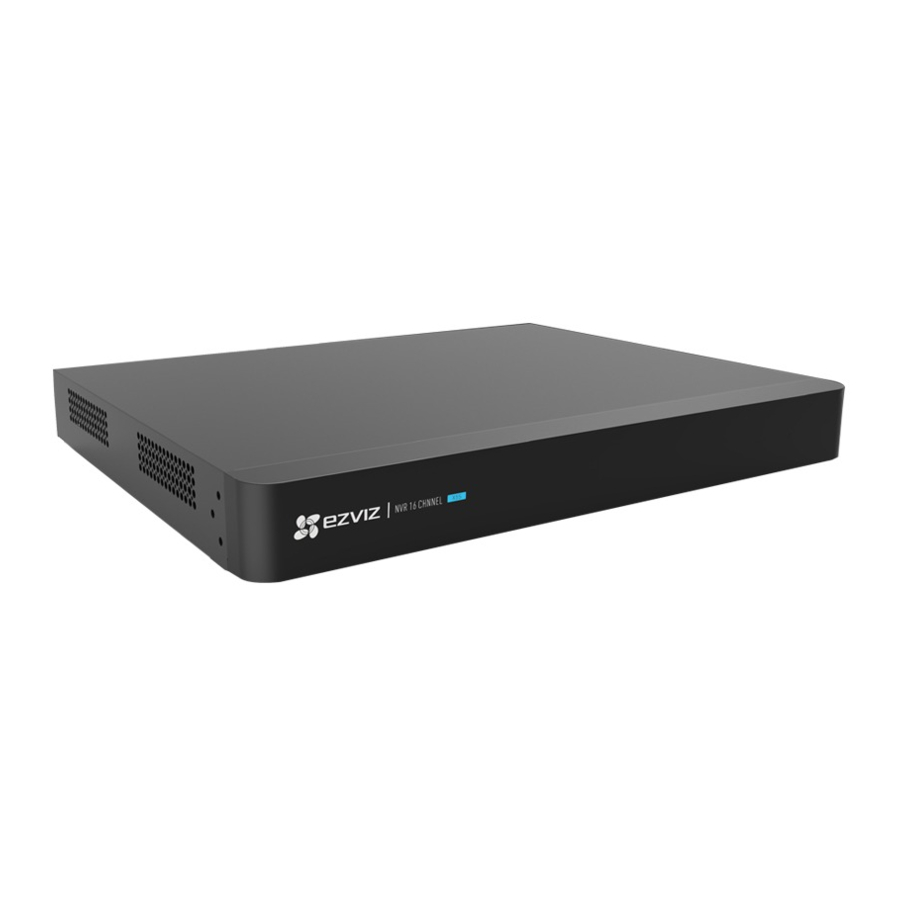

EZVIZ X5S-16L2 - Wireless NVR Quick Start Guide

Basic Information

Box Contents

For models equipped with HDD (Hard Disk Drive), the screw kit is not included.

Rear Panel Overview

The cables with dotted lines above are not included.

Wiring

If you want to install HDD by yourself, refer to Appendix.

1. Connect the uplink interface of device to that of router using network cable.
2. Connect the mouse to the USB interface of device.

3. Connect the device to the Monitor using VGA or HDMI cable.


Choose the corresponding signal source of the Monitor according to different connections.

Setup

Power on

1. Connect the device with power outlet and turn on the power button.

   Use stable power supply to avoid device exception or even damage.
2. Wait until the Wizard interface appears on the Monitor and set the password (For the first time access).
   It is recommended to set new password for better security.
3. Log in the device.

• Admin password is the verification code on the lable of the device.
• If the wizard does not appear, please check the steps above.

(Optional) Shutdown

1. In the operation interface of device (Monitor), go to Shutdown by Menu Shutdown and click it.
2. Click Yes.
3. Turn off the power button to disconnect the power supply.

For device protection, do not turn off or disconnect the power supply while the device is working.

Linkage

Link through Monitor

• Make sure that the camera and device are using the same network.
• Power on all devices before you start.

1. Go to Camera Management by Menu Camera.

2. Click Search.
3. Click "+" to add the camera.

The camera will automatically connect to the device.

LED Indicator Status

Link to EZVIZ APP

You can add your devcie to EZVIZ app for more functions.

1. Download the App in your Phone (Optional).

• Search for "EZVIZ" in the App Store/Google Play ™ to download and install the app.
• Launch the App.
• Register an EZVIZ user account.

2. Add the Device.

• Log into the EZVIZ App.
• Click "+" on the upper-right corner to go to QR code scanning interface.

• Scan the QR Code at the bottom to add the device.


HDD Installation

1. Loosen ten screws No.1 to 10 on the back and both sides of the device to take apart the cover.

2. Connect the data cable and power cable of device with HDD respectively.

3. Use screws to fixate the HDD.

4. Re-assemble the device with screws (No.1 to No. 10).
