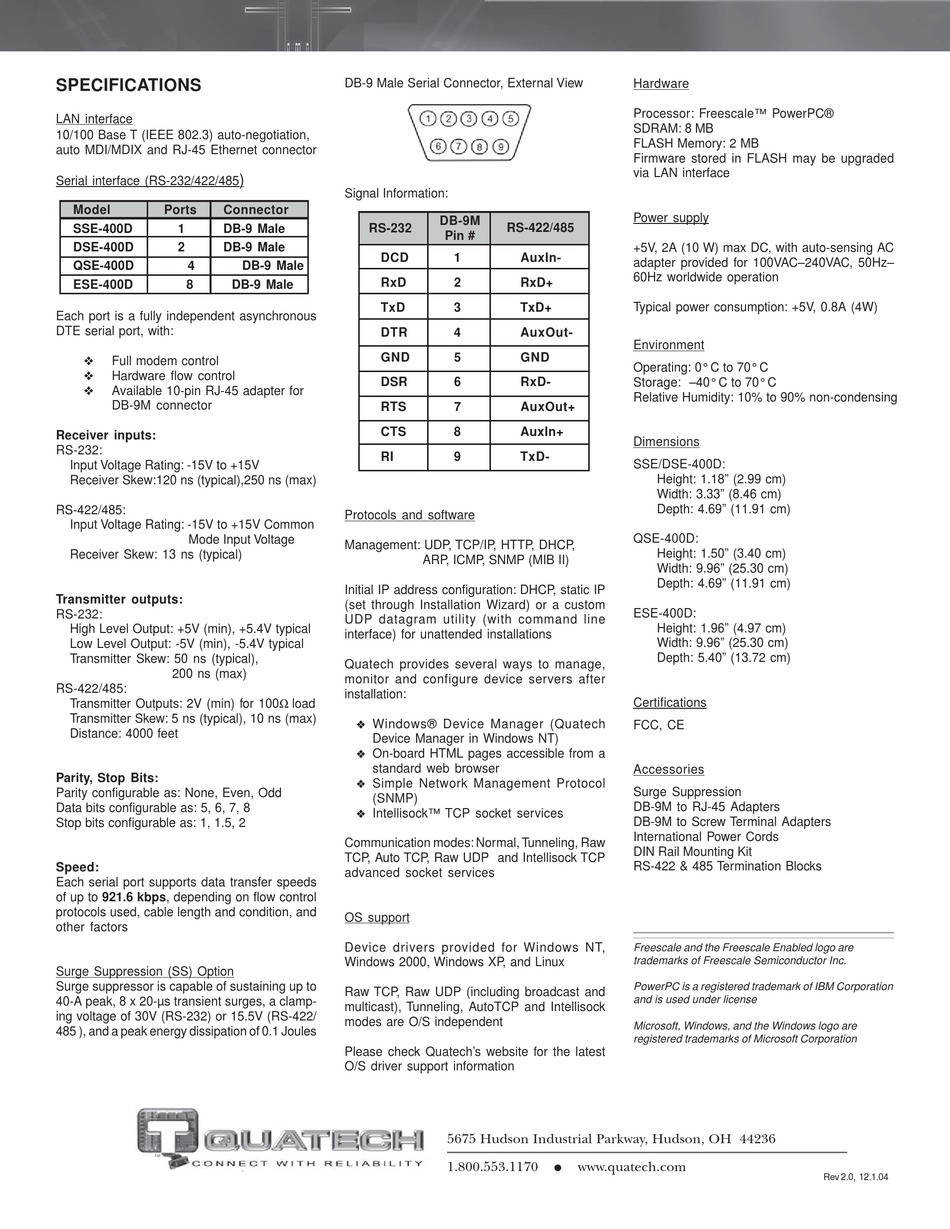

SPECIFICATIONS

LAN interface
10/100 Base T (IEEE 802.3) auto-negotiation,
auto MDI/MDIX and RJ-45 Ethernet connector
Serial interface (RS-232/422/485
Model Ports Connector
SSE-400D 1 DB-9 Male
DSE-400D 2 DB-9 Male
QSE-400D 4
ESE-400D 8 DB-9 Male
Each port is a fully independent asynchronous
DTE serial port, with:
Full modem control
Hardware flow control
Available 10-pin RJ-45 adapter for
DB-9M connector
Receiver inputs:
RS-232:
Input Voltage Rating: -15V to +15V
Receiver Skew:120 ns (typical),250 ns (max)
RS-422/485:
Input Voltage Rating: -15V to +15V Common
Mode Input Voltage
Receiver Skew: 13 ns (typical)
Transmitter outputs:
RS-232:
High Level Output: +5V (min), +5.4V typical
Low Level Output: -5V (min), -5.4V typical
Transmitter Skew: 50 ns (typical),
200 ns (max)
RS-422/485:
Transmitter Outputs: 2V (min) for 100 load
Transmitter Skew: 5 ns (typical), 10 ns (max)
Distance: 4000 feet
Parity, Stop Bits:
Parity configurable as: None, Even, Odd
Data bits configurable as: 5, 6, 7, 8
Stop bits configurable as: 1, 1.5, 2
Speed:
Each serial port supports data transfer speeds
of up to 921.6 kbps, depending on flow control
protocols used, cable length and condition, and
other factors
Surge Suppression (SS) Option
Surge suppressor is capable of sustaining up to
40-A peak, 8 x 20-µs transient surges, a clamp-
ing voltage of 30V (RS-232) or 15.5V (RS-422/
485 ), and a peak energy dissipation of 0.1 Joules
DB-9 Male Serial Connector, External View
)
Signal Information:
RS-232
DCD
DB-9 Male
RxD
TxD
DTR
GND
DSR
RTS
CTS
RI
Protocols and software
Management: UDP, TCP/IP, HTTP, DHCP,
Initial IP address configuration: DHCP, static IP
(set through Installation Wizard) or a custom
UDP datagram utility (with command line
interface) for unattended installations
Quatech provides several ways to manage,
monitor and configure device servers after
installation:
O
Windows® Device Manager (Quatech
Device Manager in Windows NT)
O
On-board HTML pages accessible from a
standard web browser
O
Simple Network Management Protocol
(SNMP)
O
Intellisock™ TCP socket services
Communication modes: Normal, Tunneling, Raw
TCP, Auto TCP, Raw UDP and Intellisock TCP
advanced socket services
OS support
Device drivers provided for Windows NT,
Windows 2000, Windows XP, and Linux
Raw TCP, Raw UDP (including broadcast and
multicast), Tunneling, AutoTCP and Intellisock
modes are O/S independent
Please check Quatech's website for the latest
O/S driver support information
DB-9M
RS-422/485
Pin #
1 AuxIn-
2 RxD+
3 TxD+
4 AuxOut-
5 GND
6 RxD-
7 AuxOut+
8 AuxIn+
9 TxD-
ARP, ICMP, SNMP (MIB II)
5675 Hudson Industrial Parkway, Hudson, OH 44236
1.800.553.1170 www.quatech.com
Hardware
Processor: Freescale™ PowerPC®
SDRAM: 8 MB
FLASH Memory: 2 MB
Firmware stored in FLASH may be upgraded
via LAN interface
Power supply
+5V, 2A (10 W) max DC, with auto-sensing AC
adapter provided for 100VAC–240VAC, 50Hz–
60Hz worldwide operation
Typical power consumption: +5V, 0.8A (4W)
Environment
Operating: 0° C to 70° C
Storage: –40° C to 70° C
Relative Humidity: 10% to 90% non-condensing
Dimensions
SSE/DSE-400D:
Height: 1.18" (2.99 cm)
Width: 3.33" (8.46 cm)
Depth: 4.69" (11.91 cm)
QSE-400D:
Height: 1.50" (3.40 cm)
Width: 9.96" (25.30 cm)
Depth: 4.69" (11.91 cm)
ESE-400D:
Height: 1.96" (4.97 cm)
Width: 9.96" (25.30 cm)
Depth: 5.40" (13.72 cm)
Certifications
FCC, CE
Accessories
Surge Suppression
DB-9M to RJ-45 Adapters
DB-9M to Screw Terminal Adapters
International Power Cords
DIN Rail Mounting Kit
RS-422 & 485 Termination Blocks
Freescale and the Freescale Enabled logo are
trademarks of Freescale Semiconductor Inc.
PowerPC is a registered trademark of IBM Corporation
and is used under license
Microsoft, Windows, and the Windows logo are
registered trademarks of Microsoft Corporation
Rev 2.0, 12.1.04
