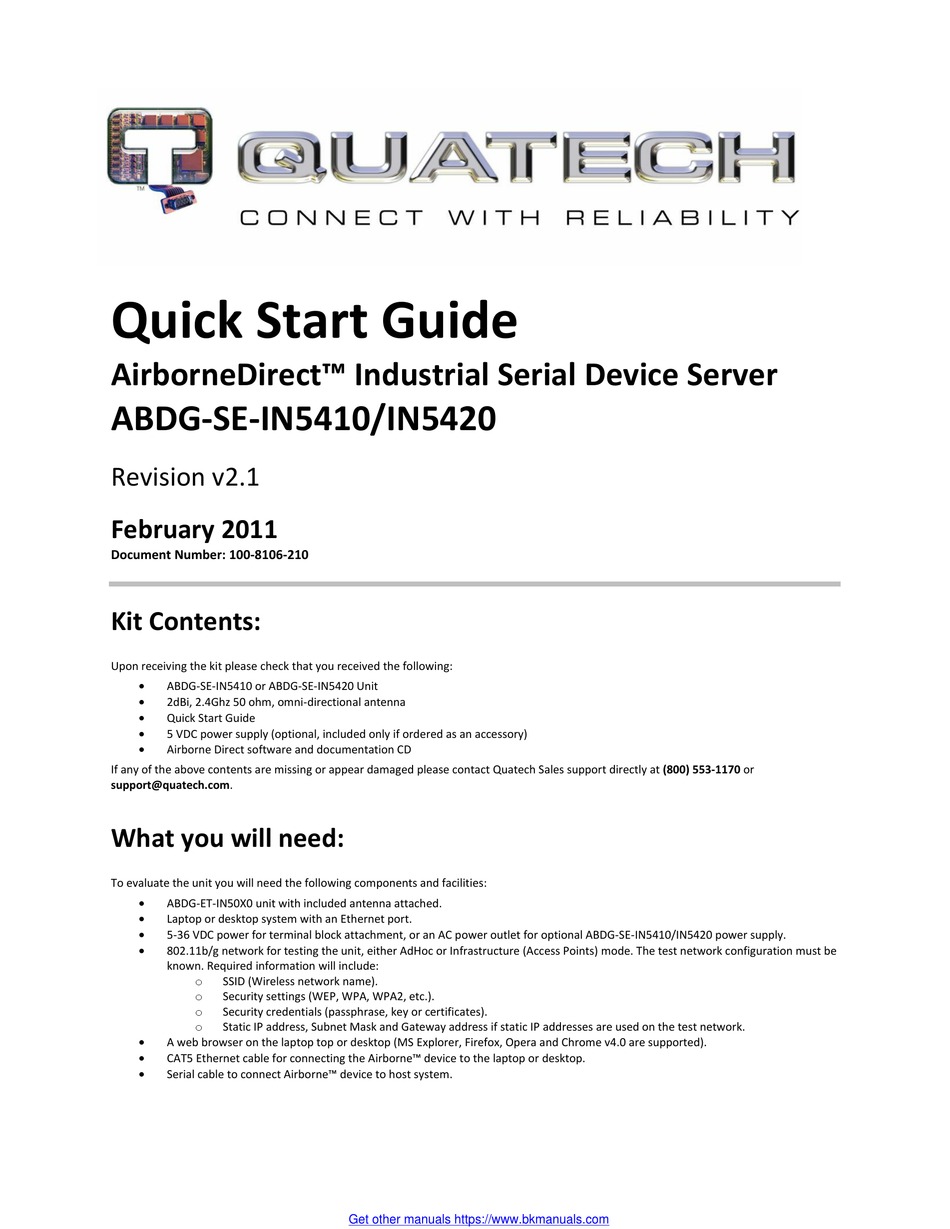

Quick Start Guide
AirborneDirect™ Industrial Serial Device Server
ABDG-SE-IN5410/IN5420
Revision v2.1
February 2011
Document Number: 100-8106-210

Kit Contents:

Upon receiving the kit please check that you received the following:

ABDG-SE-IN5410 or ABDG-SE-IN5420 Unit

2dBi, 2.4Ghz 50 ohm, omni-directional antenna

Quick Start Guide

5 VDC power supply (optional, included only if ordered as an accessory)

Airborne Direct software and documentation CD
If any of the above contents are missing or appear damaged please contact Quatech Sales support directly at (800) 553-1170 or
support@quatech.com.

What you will need:

To evaluate the unit you will need the following components and facilities:

ABDG-ET-IN50X0 unit with included antenna attached.

Laptop or desktop system with an Ethernet port.

5-36 VDC power for terminal block attachment, or an AC power outlet for optional ABDG-SE-IN5410/IN5420 power supply.

802.11b/g network for testing the unit, either AdHoc or Infrastructure (Access Points) mode. The test network configuration must be
known. Required information will include:
o
SSID (Wireless network name).
o
Security settings (WEP, WPA, WPA2, etc.).
o
Security credentials (passphrase, key or certificates).
o
Static IP address, Subnet Mask and Gateway address if static IP addresses are used on the test network.

A web browser on the laptop top or desktop (MS Explorer, Firefox, Opera and Chrome v4.0 are supported).

CAT5 Ethernet cable for connecting the Airborne™ device to the laptop or desktop.

Serial cable to connect Airborne™ device to host system.
