EMBEDDED SERIAL DEVICE SERVER SPECIFICATIONS
Ordering Information
Model
Ports
SSE-100D-EMB
1
RS-232 w/ DB-9 Male
DSE-100D-EMB
2
RS-232 w/ DB-9 Male
Each port is a fully independent asynchronous
DTE serial port with:
* Full modem control
* Hardware flow control
* Available 10-pin RJ-45 adapter
for DB-9M connector
LAN Interface
10/100 Base T (IEEE 802.3) auto-negotiation,
auto MDI/MDIX and RJ-45 Ethernet connector
OS Support
Device drivers provided for Windows NT,
Windows 2000, Windows XP and Linux
Raw TCP, Raw UDP (including broadcast and
multicast), Tunneling, AutoTCP and Intellisock
modes are O/S dependent
Please check Quatech's web site for the latest
O/S driver support information
Speed
Each serial port supports data transfer speeds
of up to 115.2 kbps, depending on flow control
protocols used, cable length and condition, and
other factors
Surge suppression standard for EMB models
Surge suppressor is capable of sustaining up to
40-A peak, 8 x 20μs transient surges, a
clamping voltage of 30V and a peak energy
dissipation of 0.1 Joules.

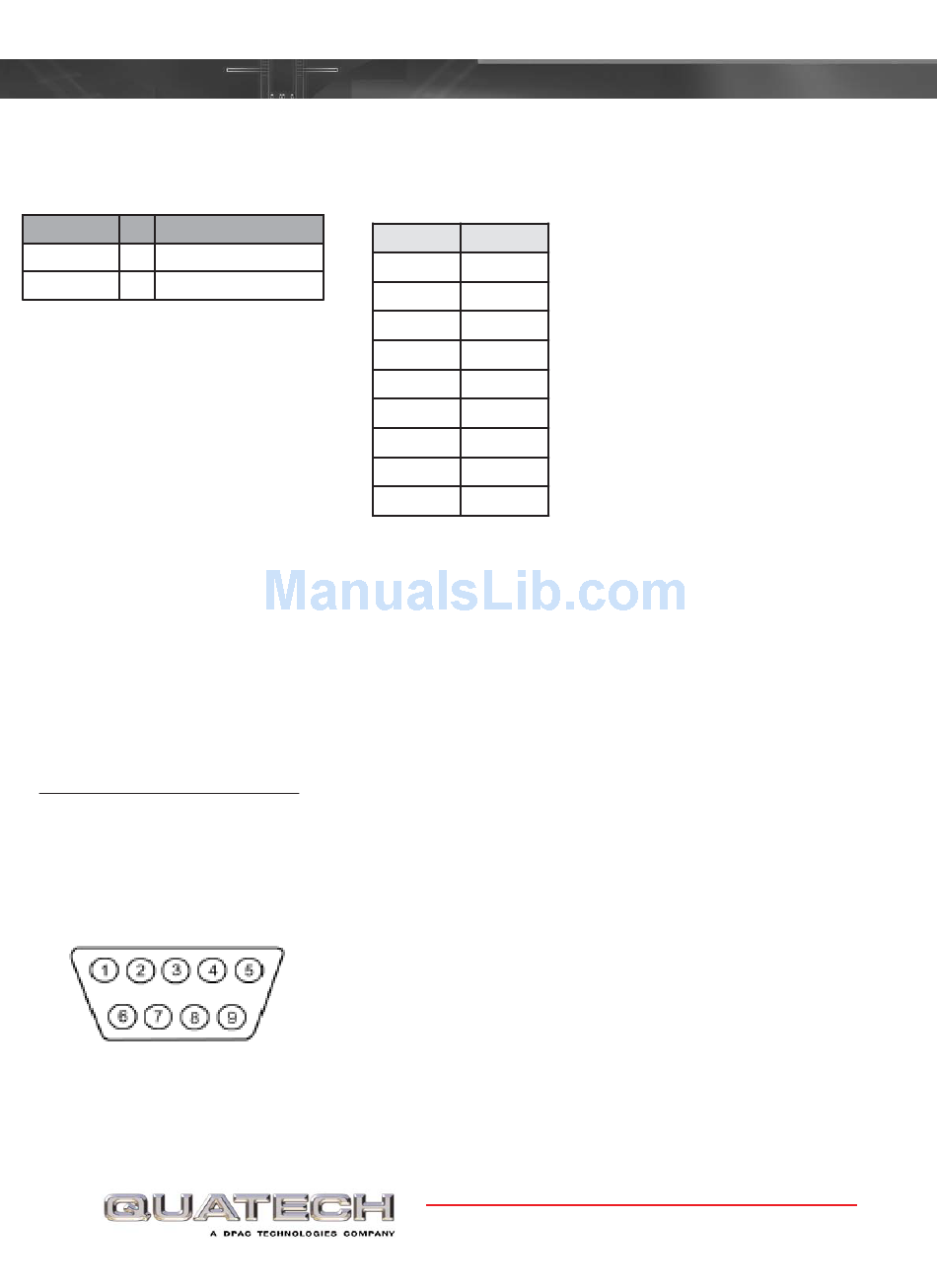

DB-9 Male Serial Connector, External View
Rev. A
11/2006
Signal Information:
Interface
Receiver Inputs:
RS-232
Voltage Rating: -15V, +15V
Receiver Skew: 120 ns (typical), 250 ns (max)
Transceiver Outputs:
RS-232
High Level Output: +5V (min), +5.4V (typ)
Low Level Output: -5V (min), -5.4V (typ)
Transmitter Skew: 50 ns (typ), 200 ns (max)
Parity, Stop Bits:
Parity configurable as: None, Even, Odd
Data bits configurable as: 5, 6, 7, 8
Stop bits configurable as: 1, 1.5, 2
Protocols and Software:
Management: UDP, TCP/IP, HTTP, DHCP,
Initial IP address configuration: DHCP, static IP
(set through Installation Wizard) or a custom
UDP datagram utility (with command line
interface) for unattended installations
Quatech provides several ways to manage,
monitor and configure device servers after
installation:
DB-9M
RS-232
Pin #
DCD
1
RxD
2
TxD
3
DTR
4
GND
5
DSR
6
RTS
7
CTS
8
RI
9
ARP, ICMP, SNMP (MIB II)
5675 Hudson Industrial Parkway * Hudson, OH 44236
1.800.553.1170 * +1 330.655.9000 * www.quatech.com
* Windows® Device Manager (Quatech Device
Manager in Windows NT)
* On-board HTML pages accessible from a
standard web browser
* Simple Network Management Protocol
(SNMP)
* Intellisock™ TCP socket services
Communication modes: Normal, Tunneling,
Raw TCP, Auto TCP, Raw UDP and Intellisock
TCP advanced socket services
Hardware:
Processor: Freescale
TM
PowerPC®
SDRAM: 8 MB
FLASH Memory: 2 MB
Firmware stored in FLASH may be upgraded
via LAN interface
Typical Power Consumption
+5V, 0.4A (4W)
Environment
Operating: 0° to 70°C
Storage: -40° to780° C
Humidity: 10% to 90% non-condensing
Size
SSE/DSE-100D-EMB:
Height: .61" (1.54 cm)
Width: 3.50" (8.89 cm)
Depth: 4.50" (11.43 cm)
Certifications
FCC, CE
Accessories
DB-9M to Screw Terminal Adapters
International Power Cords
