SY 1A-25 Amplifiers and LVC
Installation Guide
SY-1A-25R
SY-1A-25W
SY-LVC
Description

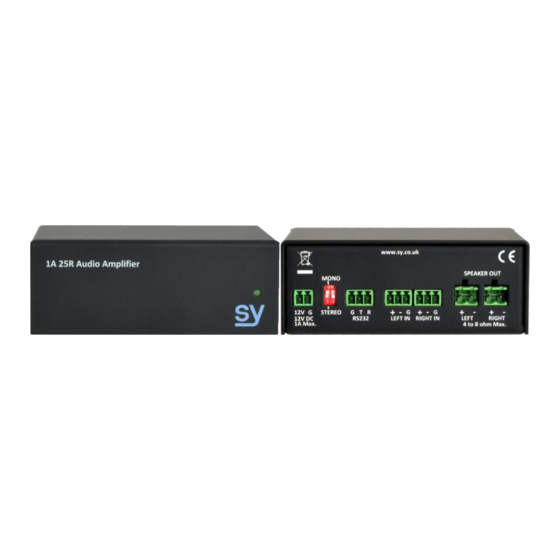

25W per Channel Stereo Power Amplifier, Rack Mounting
25W per Channel Stereo Power Amplifier, Wall Mounting
Stereo Line Volume Controller
SY Electronics Ltd., Unit 7 Worrall Street, Salford, Greater Manchester, M5 4TH
Tel: +44 (0)161 868 3450 – Web: sy.uk
Advertisement
Table of Contents
Related Manuals for SY SY-1A-25R
Summary of Contents for SY SY-1A-25R
- Page 1 25W per Channel Stereo Power Amplifier, Rack Mounting 25W per Channel Stereo Power Amplifier, Wall Mounting Stereo Line Volume Controller SY Electronics Ltd., Unit 7 Worrall Street, Salford, Greater Manchester, M5 4TH Tel: +44 (0)161 868 3450 – Web: sy.uk...
- Page 2 SY 1A-25 Amplifiers and LVC The SY Amplifier range and Line Volume Controller provide a means of controlling the volume level of any analogue signal with the option to directly drive stereo speakers. The following table details the main features of each of the SY amplifier products.
- Page 3 The SY-1A-25R and SY-1A-25W are intended to be used as power amplifiers to drive stereo loudspeakers with a minimum rating of 25W at 8R per channel.
- Page 4 SY 1A-25 Amplifiers and LVC If you require only unbalanced audio from the SY-LVC, only use the +ve output and the G terminals to connect to the next item of audio equipment for each output channel. Mode Switch SW1 of the Mode Switch sets the amplifier into either stereo or mono mode. When in stereo mode, the two inputs are separate and set to the same volume level.
- Page 5 Specifications General 24V DC @ 3A for SY-1A-25R and SY-1A-25W Power Supply 12V DC @ 1A for SY-LVC 55 W max for SY-1A-25R and SY-1A-25W Power Consumption 0.6W for SY-LVC...
- Page 6 These products have a two year standard warranty beginning from the date of purchase as stated on the sales invoice. For full details please refer to our Terms and Conditions. The SY Product warranty is automatically void under any of the following conditions: ...
- Page 7 SY 1A-25 Amplifiers and LVC NOTES: www.sy.co.uk...
- Page 8 SY 1A-25 Amplifiers and LVC NOTES: sy.uk...
