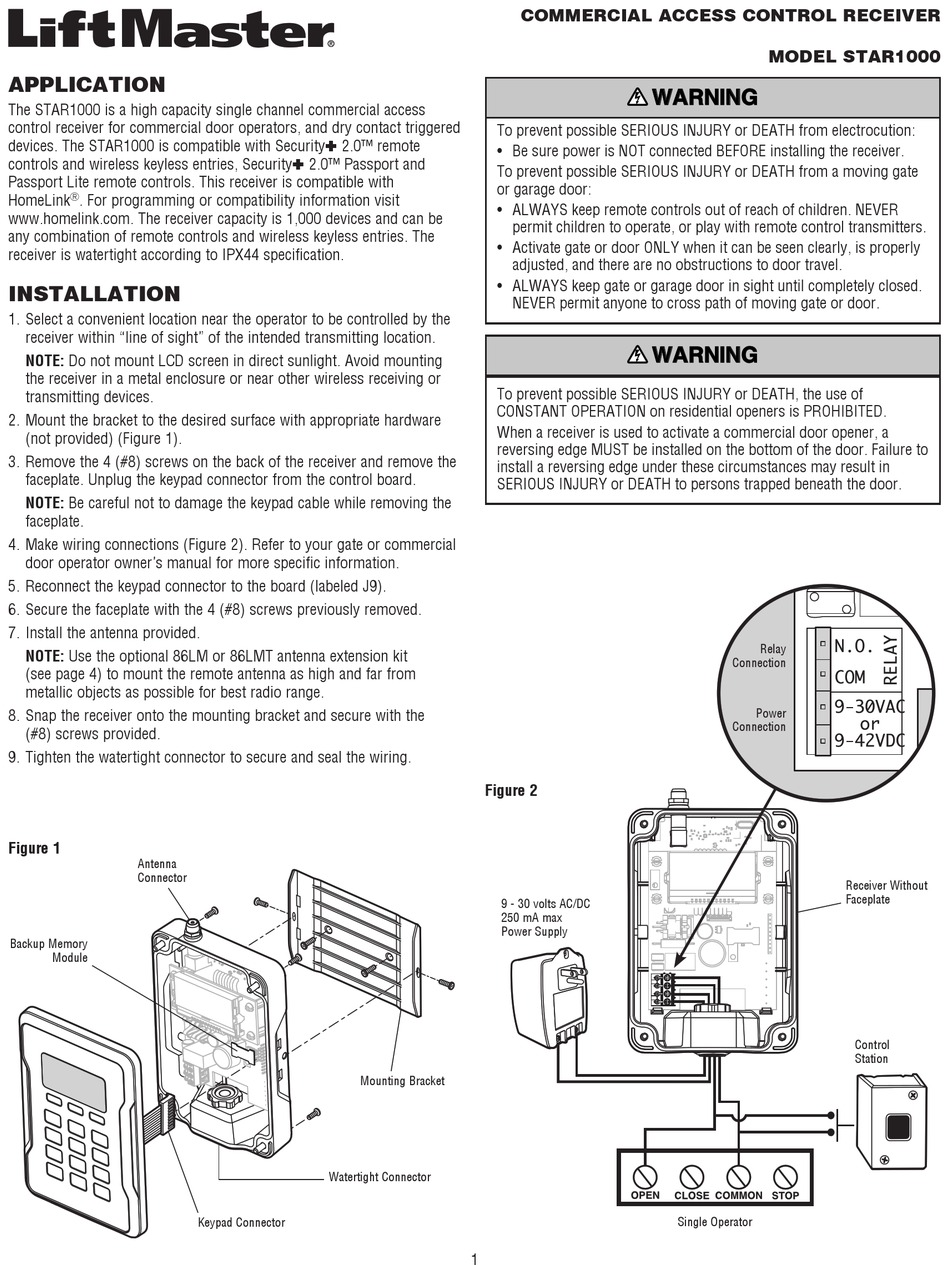

APPLICATION
The STAR1000 is a high capacity single channel commercial access
control receiver for commercial door operators, and dry contact triggered
devices. The STAR1000 is compatible with Security: 2.0™ remote
controls and wireless keyless entries, Security: 2.0™ Passport and
Passport Lite remote controls. This receiver is compatible with
®
HomeLink
. For programming or compatibility information visit
www.homelink.com. The receiver capacity is 1,000 devices and can be
any combination of remote controls and wireless keyless entries. The
receiver is watertight according to IPX44 specification.
INSTALLATION
1. Select a convenient location near the operator to be controlled by the
receiver within "line of sight" of the intended transmitting location.
NOTE: Do not mount LCD screen in direct sunlight. Avoid mounting
the receiver in a metal enclosure or near other wireless receiving or
transmitting devices.
2. Mount the bracket to the desired surface with appropriate hardware
(not provided) (Figure 1).
3. Remove the 4 (#8) screws on the back of the receiver and remove the
faceplate. Unplug the keypad connector from the control board.
NOTE: Be careful not to damage the keypad cable while removing the
faceplate.
4. Make wiring connections (Figure 2). Refer to your gate or commercial
door operator owner's manual for more specific information.
5. Reconnect the keypad connector to the board (labeled J9).
6. Secure the faceplate with the 4 (#8) screws previously removed.
7. Install the antenna provided.
NOTE: Use the optional 86LM or 86LMT antenna extension kit
(see page 4) to mount the remote antenna as high and far from
metallic objects as possible for best radio range.
8. Snap the receiver onto the mounting bracket and secure with the
(#8) screws provided.
9. Tighten the watertight connector to secure and seal the wiring.
Figure 1
Antenna
Connector
Backup Memory
Module
W W ARN
ARNING
ING
CAUTION
CAUTION
W W ARN
ARNING
ING
CAUTION
CAUTION
Mounting Bracket
Watertight Connector
Keypad Connector
COMMERCIAL ACCESS CONTROL RECEIVER
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing the receiver.
To prevent possible SERIOUS INJURY or DEATH from a moving gate
or garage door:
• ALWAYS keep remote controls out of reach of children. NEVER
permit children to operate, or play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed.
NEVER permit anyone to cross path of moving gate or door.
To prevent possible SERIOUS INJURY or DEATH, the use of
CONSTANT OPERATION on residential openers is PROHIBITED.
When a receiver is used to activate a commercial door opener, a
reversing edge MUST be installed on the bottom of the door. Failure to
install a reversing edge under these circumstances may result in
SERIOUS INJURY or DEATH to persons trapped beneath the door.
Figure 2
9 - 30 volts AC/DC
250 mA max
Power Supply
1
MODEL STAR1000
W W ARN
ARNING
ING
W W ARN
ARNING
ING
W W ARN
ARNING
ING
W W ARN
ARNING
ING
Relay
Connection
Power
Connection
Single Operator
Receiver Without
Faceplate
Control
Station
