INTRODUCTION
The LiftMaster Passport™ PPLX reader is a programmable single-door access control system, which controls access for up to 50,000 users. It can
®
control a gate operator, electric strike, magnetic lock, or commercial door operator. The reader contains the CPU, memory, access relay, and an
internal reader. A Wiegand output is also provided to allow for later upgrading to an online system. The reader also has an additional programmable
input, which may be set as a remote open input or as an LED control for use with the Wiegand output. It also has a beeper, and a bi-color LED
indicator. The reader is capable of reading multiple Wiegand Card protocols. As a stand-alone access device, the reader has the ability to read 26 bit,
30 bit, and 34 bit industry standard card protocols. The PPRP Handheld Programmer (not provided) is required to program the reader.
SPECIFICATIONS
POWER REQUIREMENTS
5-14 Vdc, 50 mA idle, 150 mA Max.
OUTPUTS
SPST Solid State Relay, 1A max. @60 Vac or dc
Normally open or normally closed (field programmable) (refer to
Programming section, page 14 ).
INPUTS
Default is Remote Open (requires contact closure).
Also programmable as Bi-color (Red or Green) LED Control or
Buzzer/LED control for online systems (refer to Programming section,
page 15).

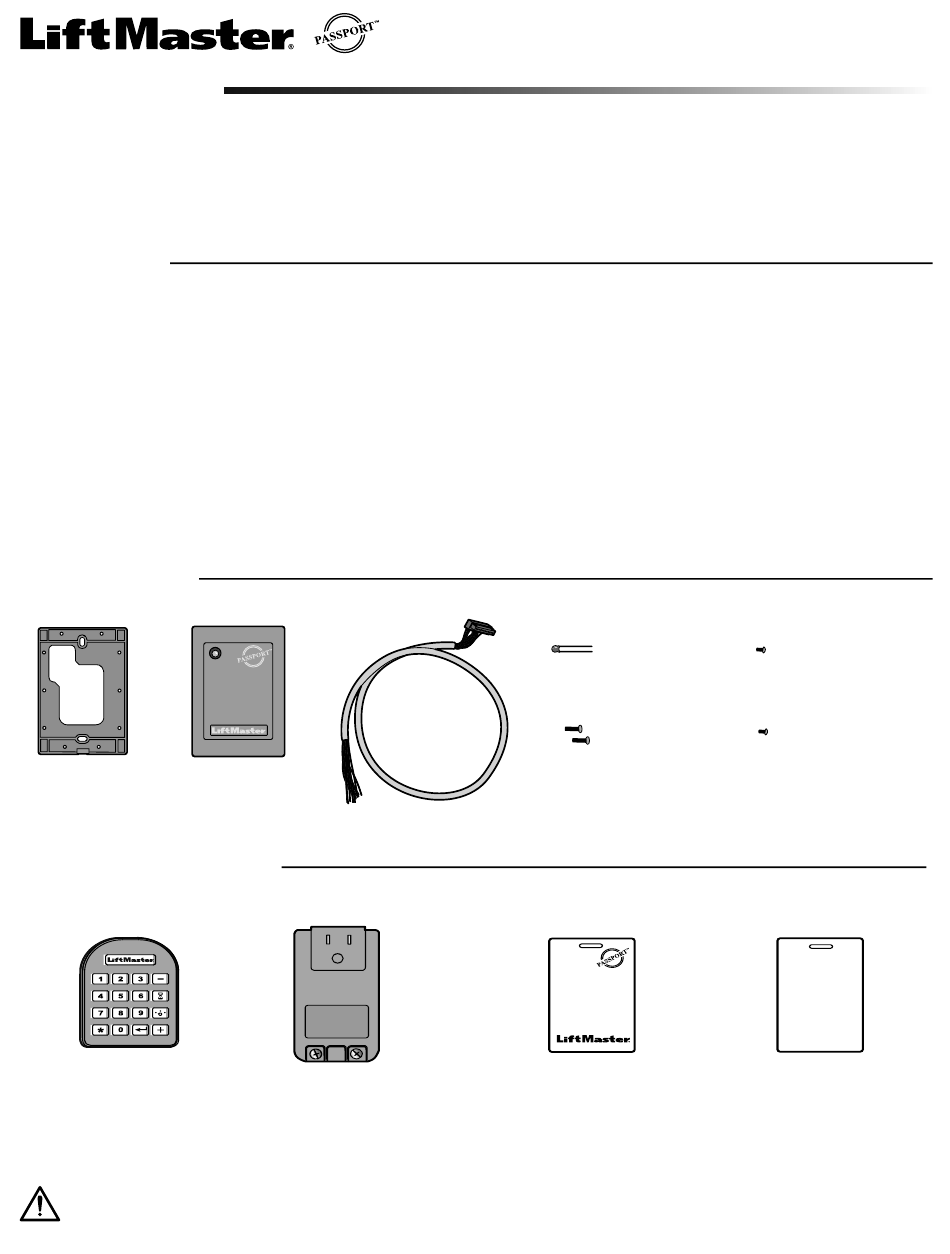

CARTON INVENTORY
Mounting Plate
ACCESSORIES (NOT PROVIDED)
See LiftMaster.com/PPLX for a complete list of compatible accessories.
PPRP Programmer
NOTE: Required for
stand-alone
programming
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
PPLX Reader
Cable with Wiring Harness
PS12D2A 12 Vdc
Plug-In Power Supply
Designed to power the PPLX Reader
(90 mA) and other devices as needed up
to total of 2.0 Amps.
Requires 110 Volts AC power.
WIEGAND OUTPUT
Any Wiegand Format up to 40 bits
Maximum Distance: 500 ft. - 5 or 8 conductor 20 gauge shielded cable
ENVIRONMENT
Reader, Key Tags, and Cards:
Ambient Temperature . . . . . . . . . . . . . . . -40° to +70°C (-40° to +158°F)
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 95% (non-condensing)
DIMENSIONS
Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.5" (h) x 3.2" (w)
Metal Oxide Varistor
(MOV) (1)
#6 Mounting Screws (2)
PPCSC 34 bit
Proximity Clamshell Cards
NOTE: PPCSC is stand-alone
compatible only.
1
PPLX READER
NOT SHOWN
Manual
4x40 Screw (1)
Log Sheet
Security Screw (1)
LMPC2-ST 26 bit
Proximity Clamshell Card
