Qlogic 7104-HCA-LPX1P Specifications

7104-HCA- xxx
InfiniBand (IB) 4X SDR to PCI
Express Host Channel Adapter (HCA)
Strategic Benefits
• Seamless IB enabling of PCI Express (PCIe) servers
• No operating system or application changes
required
• Improved server CPU utilization with Remote Direct
Memory Access (RDMA) protocols
• Fast 10-Gbps technology today for High
Performance Business Computing (HPBC)
• Server connectivity to IB based intelligent virtual I/O
and clustering fabrics
Key Design Features
• Single or dual 4X (10 Gbps) IB ports
• PCIe x8 support
• Fully PCIe compliant
• Low profile design
• Comprehensive suite of high performance Upper
Level Protocols (ULPs)
– µDAPL
– Sockets Direct Protocol (SDP)
– Reliable Datagram Sockets (RDS)
– VirtualNIC
– VirtualHBA
– IPoIB
– MPI
– Windows SDP
®
• Supports up to 130K queue pairs and 130K
completion queues

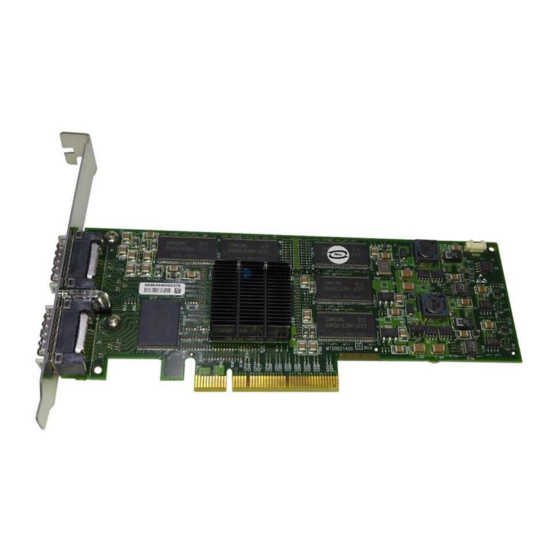

An integral member of the QLogic family of interconnect offerings, the 7104-
HCA- xxx series Single Data Rate (SDR) HCA is a single or dual port 4X IB HCA
utilizing a x8 PCIe interface to enable higher server bandwidth than is possible
with PCI-X. It offers an aggregate to 20 Gbps of full-duplex bandwidth.
The QLogic HCA creates an expressway of balanced bandwidth between
the server and the IB fabric, allowing information transfer at 10 Gbps, up
to 10 times the bandwidth of current server interfaces. A comprehensive
host environment of high-performance ULPs contained within the QLogic
software family enables the HCA to provide unprecedented performance to
core business applications that are supported by DataBase Management
Systems (DBMS), clustering, HPBC, and high availability clustering.
QLogic HCA in the Enterprise. Combined with its ULPs, the HCA is the channel
by which today's complex and costly enterprise environments quickly evolve
to feed ever-growing processing requirements. Clustering, Ethernet, and
Fibre Channel are all concurrently supported via a single 10-Gb pipe. The
net effect is a significantly reduced level of infrastructure complexity and
improved business responsiveness, with a lower total cost of ownership.
The HCA, used in conjunction with QLogic's family of InfiniBand clustering
switches and virtual I/O systems, is part of a complete end-to-end InfiniBand
solution ready to enable today's servers to handle tomorrow's processing
requirements.
Guaranteed Interoperability. InfiniBand ecosystem partner certifications,
combined with agency and regulatory testing, ensures all products meet
industry compliance hardware and software specifications. All HCAs are
tested extensively with third-party hardware, along with multiple software
applications, to ensure best-in-class InfiniBand interoperability and
compatibility. You can be confident purchasing QLogic HCAs to meet your
InfiniBand networking needs.
Investment Protection. For over 15 years, QLogic has been a technological
leader with products that address the current needs of customers, yet
provide strong investment protection to support emerging technologies and
standards. QLogic stands alone in the industry with its product portfolio
depth and experience in successfully delivering technological solutions that
address the needs of today and tomorrow.
D A T A S H E E T
