- Page 1 HW-J7500R HW-J7501R User Manual For further information, refer to the Web Manual. Web manual : www.Samsung.com Support → → Product name search → HW-J7500R or HW-J7501R * Design, specifications and App screen are subject to change without prior notice.
-
Page 2: Safety Information
SAFETY INFORMATION SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that high voltage is present inside. It is dangerous to make any CAUTION kind of contact with any internal part of this product. -
Page 3: Important Notice
Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. -
Page 4: Checking The Components

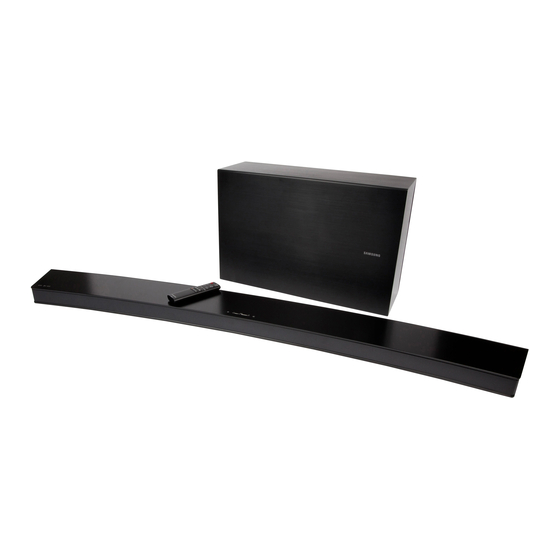

CHECKING THE COMPONENTS Soundbar Main Unit 2 AC/DC Adapter 3 Power Cord Subwoofer Remote Control / Battery 1 Power Cord c Use Cat 7 (*STP Type) cable for the connection. * Shielded Twist Pair CONNECTING ELECTRICAL POWER Use the power components (1, 2, 3) to connect the power supplies in the following order: Subwoofer ... - Page 5 CONNECTING THE SUBWOOFER TO THE SOUNDBAR MAIN UNIT You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit. Soundbar Main Unit Unit Unit Subwoofer The Soundbar main unit and subwoofer should link (connect wirelessly) automatically when the Soundbar main unit and subwoofer are turned on.
-
Page 6: Connecting To Your Tv
CONNECTING TO YOUR TV You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable. c Important: Before you begin, put the battery into the remote. See page 16 for instructions. Method 1. Connecting with a Cable Check the HDMI OUT (TV-ARC) port of the Soundbar main unit. - Page 7 If your Soundbar is connected to your TV through TV SoundConnect, you can conveniently control the volume with the Soundbar's remote or the TV's remote. c The TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since 2012.
- Page 8 Samsung Multiroom Internet Wireless Router Smart Device 3. Install the Samsung Multiroom app on your smart device (smart phone, tablet, etc.). 4. Launch the Samsung Multiroom app. Samsung Multiroom Android Samsung Multiroom app 5. Complete the initial settings by following the instructions on the app screen.
- Page 9 Adding the Soundbar to an Existing Multiroom Audio System If the Samsung Multiroom app is already installed for use with another multiroom audio device, follow these steps to add the Soundbar. Wi-Fi SETUP SPK ADD DC 24V 1. Press and hold the SPK ADD button on the rear of the Soundbar for more than 1 second.
- Page 10 You can connect your TV to the Soundbar through a wireless network and enjoy the TV sound. c Important: Make sure that the TV and Soundbar are connected to the same network. (How to check your Samsung TV network : Home menu Network Network Status) Configuring Settings from your Samsung Smart TV c To play sound via the Soundbar, make sure that your TV model supports the Multiroom feature (Samsung Smart TVs released after 2014).
- Page 11 Connecting Samsung Multiroom Audio System to the Surround You can enjoy three-dimensional sound in surround mode after connecting two Multiroom Audios and a Soundbar. c Surround connection between a Multiroom Audio and a Soundbar is unavailable. 1. Touch to go to the list of all speakers.
-
Page 12: Connection Via Bluetooth
4. Play music on the connected device. [If failed to connect to the Bluetooth device / If device searching is needed again] • Delete the previous "[Samsung] HW-Jxxxx" found by the Bluetooth device and have it search for the Soundbar again. -
Page 13: Connecting To An External Device
CONNECTING TO AN EXTERNAL DEVICE You can enjoy sound from separate external devices such as a BD player/game console/set-top box, etc. by connecting them to your Soundbar. HDMI Cable (not supplied) HDMI IN Soundbar HDMI Cable (not supplied) HDMI OUT External Bottom of Soundbar Device... -
Page 14: Software Update
USB port on your Soundbar. For more information about how to download update files, go to the Samsung Electronics website at (samsung.com/sec) search for the model name download the firmware from the customer support menu option. - Page 15 3. Fix Holder-Screw 1 (4 EA) and Holder-Screw 2 For Soundbar Main Unit (Wallmount (for Soundbar main unit fixing) (4 EA) into the holes Components) of the Soundbar tightly as shown in the illustration. Holder-Screw 2 Holder-Screw 1 (4 EA) (for Soundbar main unit fixing) (4 EA) Holder-Fix Mount...
- Page 16 5. Mount the Soundbar on the Wall-Mount Bracket in order of the following illustration (1 2). 6. Fix the Holder-Fix Mount (for wall-mount fixing) to join the Wall-Mount Bracket with the Soundbar. c Wall-Mount Screws are not provided. c Since different types of wall-mount screws are required depending on your wall, you should check your wall before installation and purchase the appropriate wall-mount screws to use.
- Page 17 REMOTE CONTROL BUTTONS & FEATURES Inserting Battery before using the Remote Control 1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure below. 2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery.
- Page 18 Selects the previous file. Skip Back The Repeat function is available only when playing back music from Songs on phone or DMS of Samsung Multiroom app. Repeat • OFF-REPEAT : Cancels Repeat Playback. • TRACK-REPEAT : Plays a track repeatedly.
-
Page 19: Troubleshooting
Channel is a trademark of DTS, Inc. © DTS, Inc. È TV SoundConnect is supported by some All Rights Reserved. Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect. Is your TV firmware the latest version? The terms HDMI and HDMI High-Definition È... -
Page 20: Open Source Licence Notice
(PS-WJ7500R / PS-WJ7501R) • Nominal specification – Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. – Weight and dimensions are approximate. – For more information about the power supply and power consumption, refer to the label attached to the product. - Page 21 This equipment may only be used indoors. Wireless Models (excluding the frequency of 5.15GHz-5.35GHz) • Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The original Declaration of Conformity may be found at http://www.samsung.com, go to Support >...
-
Page 22: Warranty Conditions
EIRE UNITED KINGDOM This Samsung product is warranted for the period of 4. This product is not considered to be defective in twelve (12) months from the original date of purchase, materials nor workmanship by reason that it against defective materials and workmanship. In... - Page 23 © 2016 Samsung Electronics Co., Ltd. All rights reserved. Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre. Contact Centre Contact Centre Country Web Site...
