Operation Manual

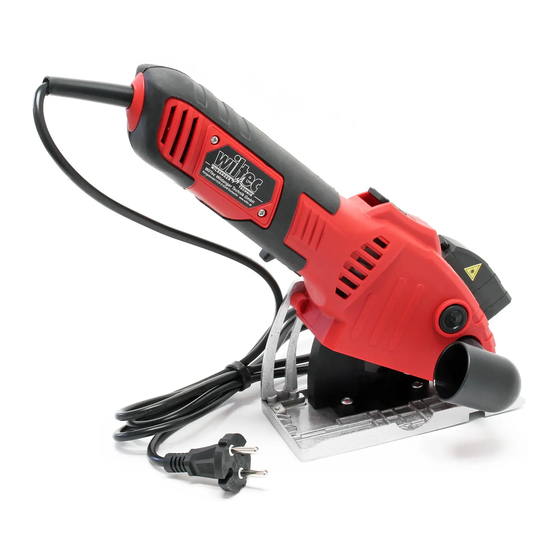

Mini Saw with Laser
62554
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool 62554
Summary of Contents for XPOtool 62554

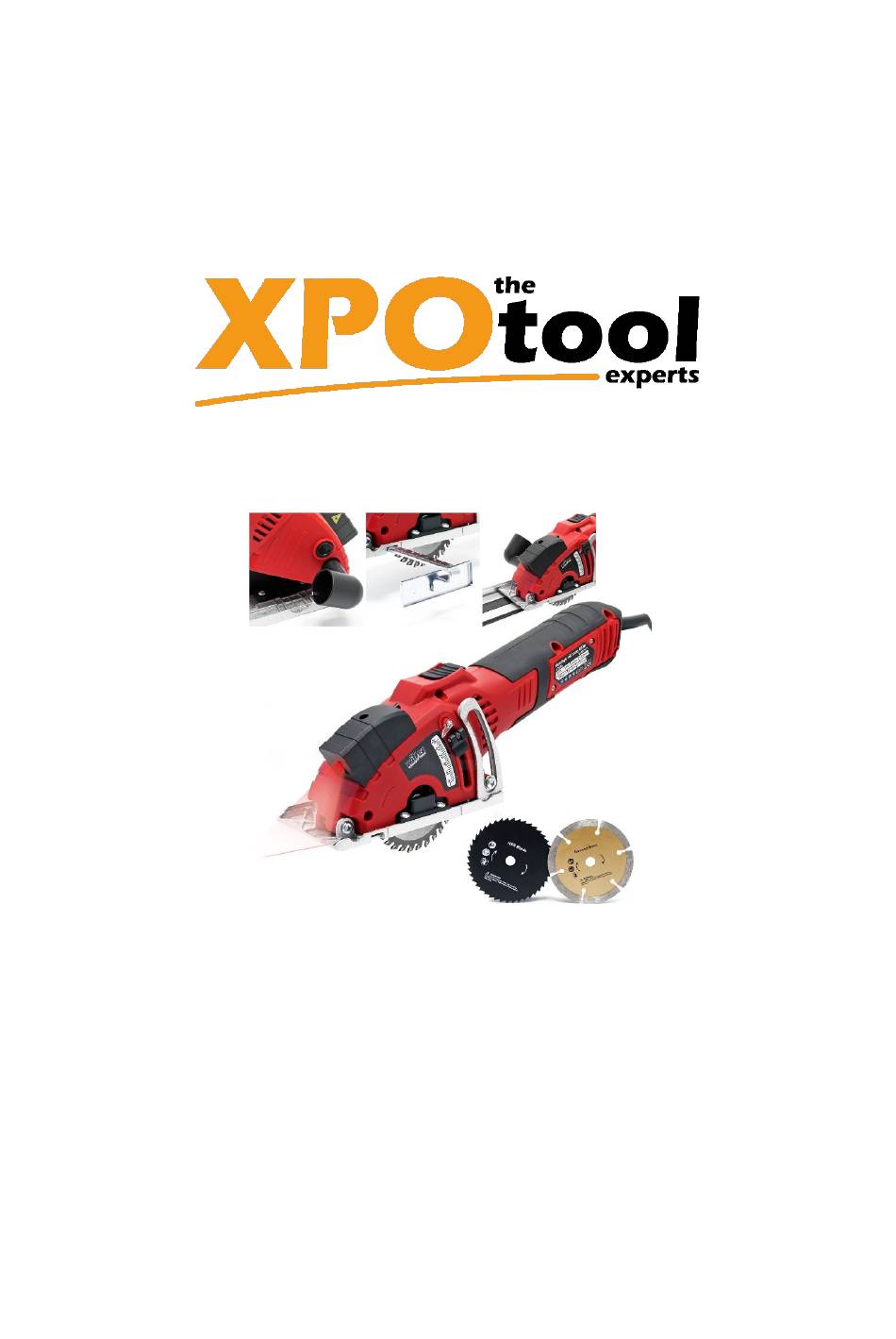

- Page 1 Operation Manual Mini Saw with Laser 62554 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 62554 Page 2 The Tool Experts 05 2022-1...
- Page 3 12 Vacuum cleaner connection Guide rail slot Base plate Guide rail 14 Tiltable protective cover Handle TCT circular saw blade (universal) Washer Diamond saw blade for stone/tiles On/off switch Hexagon socket wrench Nameplate https://www.XPOtool.com Item 62554 Page 3 The Tool Experts 05 2022-1...
- Page 4 If use in a damp environment cannot be prevented, use a protected power supply with an FI circuit breaker. The use of a residual current circuit breaker reduces the risk of electric shock. https://www.XPOtool.com Item 62554 Page 4 The Tool Experts 05 2022-1...
- Page 5 Do not reach under the workpiece, as the saw blade comes out there, and you could reach into it. • Adjust the cutting depth to the thickness of the workpiece. No more than one tooth of the saw blade should emerge below the workpiece. https://www.XPOtool.com Item 62554 Page 5 The Tool Experts 05 2022-1...
- Page 6 Check the function and condition of the return spring of the protective device. If the guard and spring are not working properly, they must be serviced before use. The protective device could https://www.XPOtool.com Item 62554 Page 6 The Tool Experts...
- Page 7 Too much dust build-up can cause the fan to clog and create electrical hazards. • Do not use accessories that require liquid coolant. Using water or other liquid coolants could result in electric shock. https://www.XPOtool.com Item 62554 Page 7 The Tool Experts 05 2022-1...
- Page 8 7. Press the spindle lock button (10) until it clicks, and firmly tighten the clamping screw. Note: The arrow on the saw blade must point in the same direction as the arrow on the device showing the direction of rotation. https://www.XPOtool.com Item 62554 Page 8 The Tool Experts 05 2022-1...
- Page 9 Place the material to be cut on a flat surface, e.g., a workbench, a table or a floor. Use a suitable mat (excess material) if you do not want to damage the work surface; ◦ the work surface can damage the saw blade, e.g., on a concrete floor. ◦ https://www.XPOtool.com Item 62554 Page 9 The Tool Experts 05 2022-1...
- Page 10 • Always use a suitable vacuum cleaner or a connected dust extraction system, as the dust can be dangerous for the operator and prevents the protective device from properly working. https://www.XPOtool.com Item 62554 Page 10 The Tool Experts 05 2022-1...
- Page 11 Sound power level L (dB (A)) 85 dB (A). Incertitude value K (dB (A)) The noise emission values have been measured according to the relevant standard. https://www.XPOtool.com Item 62554 Page 11 The Tool Experts 05 2022-1...
- Page 12 D-52249 Eschweiler Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 62554 Page 12 The Tool Experts 05 2022-1...
