Summary of Contents for Teka LP9 850 VR01

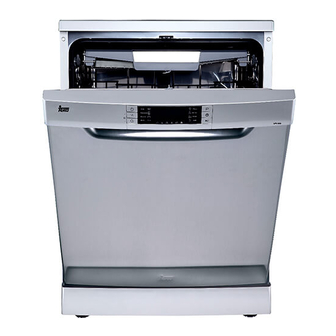

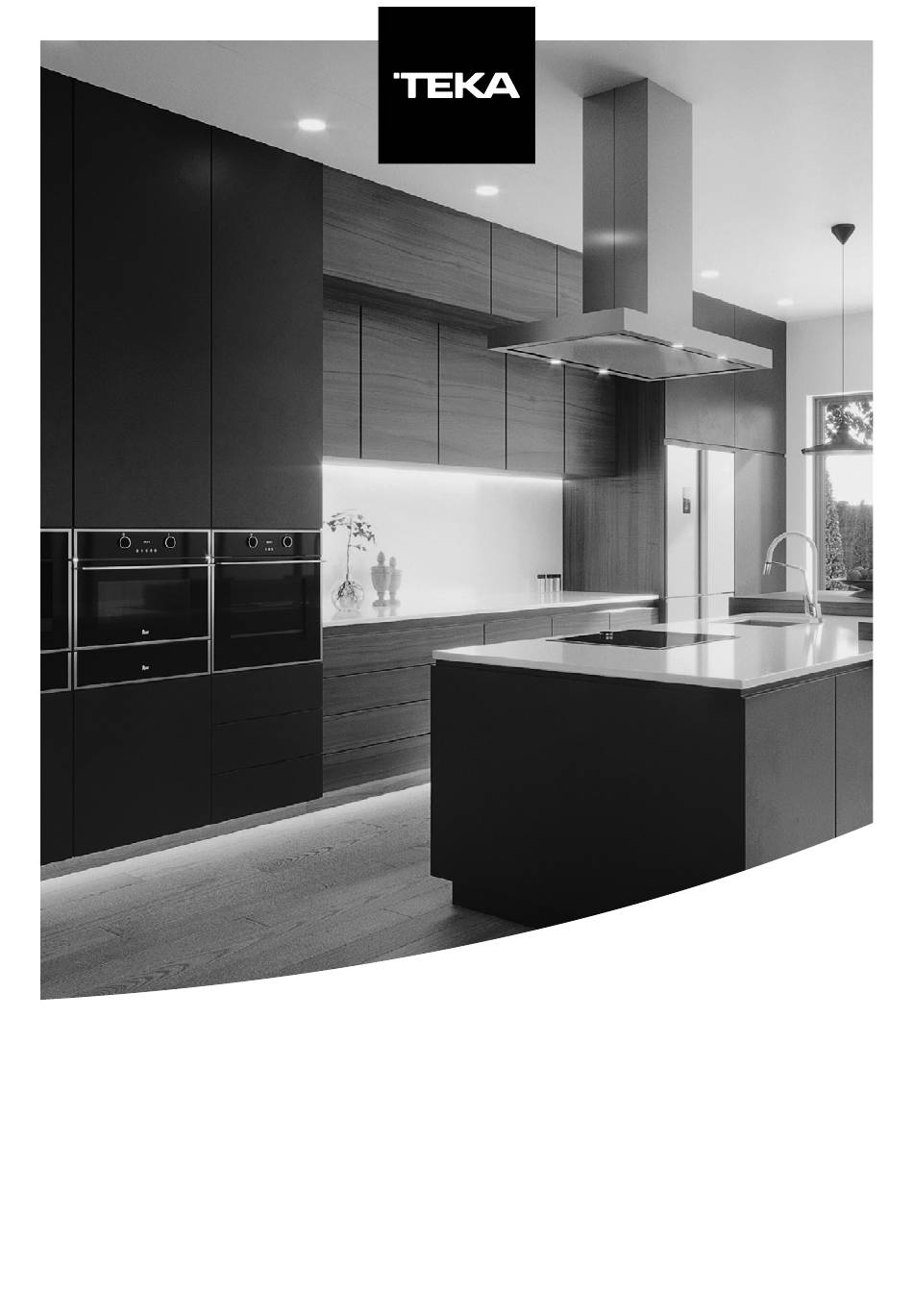

- Page 1 User Manual LP9 850 VR01 www.teka.com...
-
Page 2: Table Of Contents
1) Safety Information..........1 1) Safety Information..........1 Read this Manual 2) Quick operation guide........4 2) Quick operation guide........4 3) Operation Instruction........5 3) Operation Instruction........5 Dear Customer, Control Panel...........5 Please carefully read this manual before using the Dishwasher Features........5 dishwasher, it will help you to use and maintain the dishwasher properly. -
Page 3: Safety Information
1.IMPORTANT SAFETY INFORMATION 1.IMPORTANT SAFETY INFORMATION When using your dishwasher, WARNING! WARNING! follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses;... - Page 4 EARTHING INSTRUCTIONS This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
- Page 5 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
- Page 6 Disposal Disposal Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips polypropylene, e.g.
-
Page 8: Operation Instruction
3.Operation Instruction 3.Operation Instruction IMPORTANT IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel Control Panel 10.Extra drying indicators: To show Extra drying function 1. On/Off Button: to switch On/Off the appliance; 2.Child lock function: press Delay button and Alt 11.Start /Pause button: To start the selected washing program or pause the washing program when the... -
Page 9: Prior Using For The First Time
Prior using for the first time Prior using for the first time Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent A. -
Page 10: B Loading The Salt Into The Softener
B. Loading the Salt Into the Softener B. Loading the Salt Into the Softener Always use the salt intended for use with dishwasher. The salt container is located beneath the lower basket and should be filled as explained in the following: Attention! Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will... -
Page 14: Loading The Dishwasher Basket
5.Loading the Dishwasher Baskets 5.Loading the Dishwasher Baskets Recommendation Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. -
Page 15: Loading The Upper Basket
The Method Loading Normal Dishware The Method Loading Normal Dishware Loading the Lower Basket Loading the Lower Basket Loading the Upper Basket Loading the Upper Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls... -
Page 16: Starting A Washing Program
6.Starting a washing program 6.Starting a washing program Wash Cycle Table Wash Cycle Table Means: need to fill rinse into the Rinse-Aid Dispenser. NOTE: NOTE: Detergent Detergent Description Description Running Running Energy Energy Cycle Selection Cycle Selection Water Water Rinse Rinse Program Program... -
Page 17: Change The Program
NOTE: NOTE: When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Change the Program... Change the Program... Premise: A cycle that is underway can only be modified if it has only been running for a short time. -
Page 18: Maintenance And Cleaning
7.Maintenance and Cleaning 7.Maintenance and Cleaning Filtering System Filtering System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). -
Page 19: Caring For The Dishwasher
Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush. -
Page 20: Installation Instruction
When not in Use for a LongTime After Every Wash It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside. -
Page 21: Water Connection
How to Connect the safety supply hose The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice. -
Page 22: Start Of Dishwasher
How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 23: Troubleshooting Tips
9.Troubleshooting Tips 9.Troubleshooting Tips Before Calling for Service Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible CausesWhat to Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher start... -
Page 24: Error Codes
Problem Possible Causes What to Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The program was Select a more intensive program. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. -
Page 25: Technical Information
Technical Information Technical Information Height : 845mm Width : 598m m Depth : 610mm with the door closed Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 14 place settings... - Page 27 Cutlery basket could be have 5 positions: Mode 1 Position one: lift the left basket up, both left and right baskets are sideling. Mode 2 Position two: adjust the left basket to lower position, left basket is flat and right basket is sideling. Mode 3 Position three: lift the right basket up, both left and right baskets are flat.
- Page 28 Technical Data Sheet Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer TEKA Type / Description L P 9 8 5 0 V R 0 1 Standard place settings Energy efficiency class A+++ Annual energy consumption 237 kWh Energy consumption of the standard cleaning cycle 0.83 kWh...
- Page 30 Asped mos eriatius sit atet hicil et velit...
