Summary of Contents for QSC PowerLight 3 PL325
Page 1

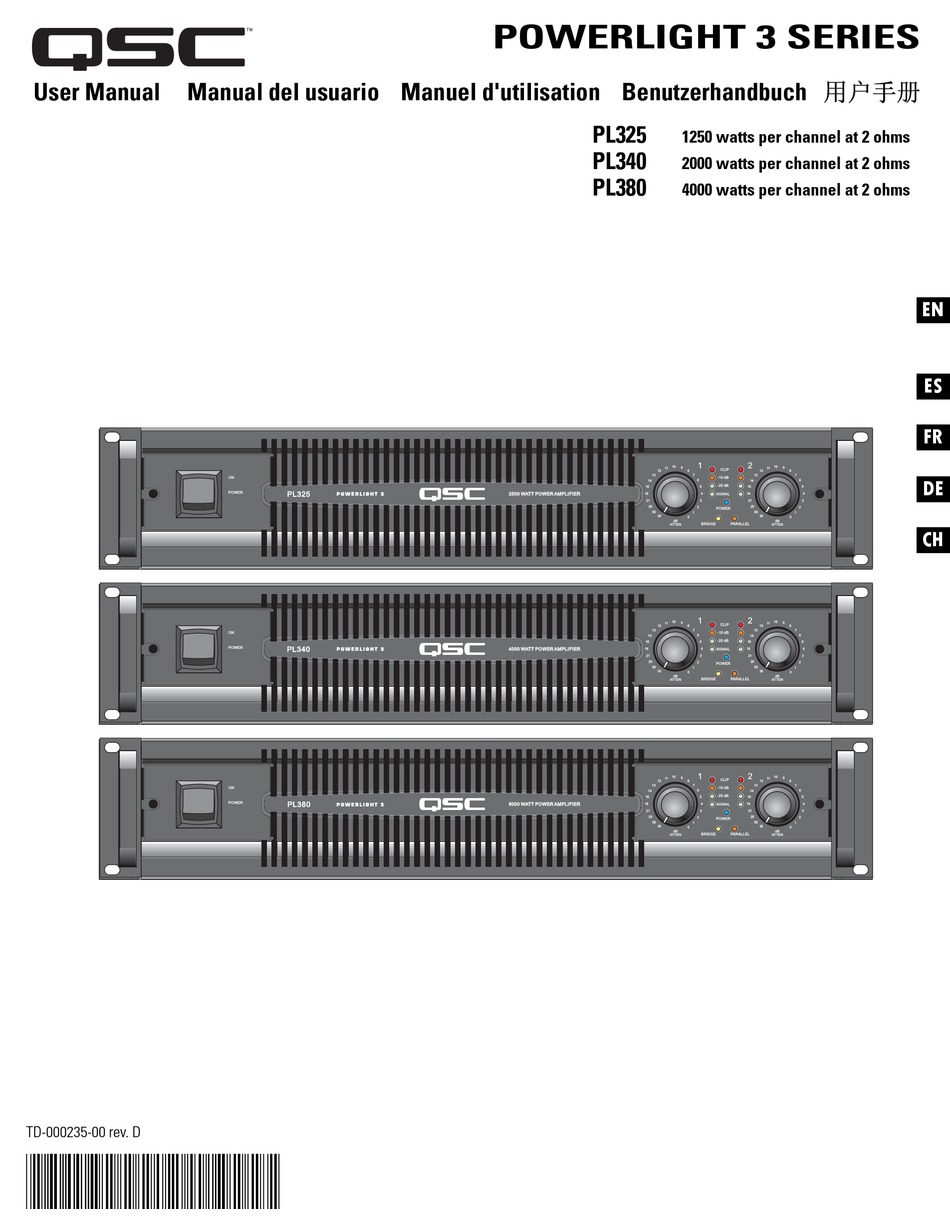

Manual del usuario Manuel d'utilisation Benutzerhandbuch 用户手册 User Manual POWER POWER POWER TD-000235-00 rev. D *TD-000235-00* POWERLIGHT 3 SERIES PL325 2500 WATT POWER AMPLIFIER 2500 WATT POWER AMPLIFIER PL340 4000 WATT POWER AMPLIFIER 4000 WATT POWER AMPLIFIER PL380 8000 WATT POWER AMPLIFIER 8000 WATT POWER AMPLIFIER PL325 1250 watts per channel at 2 ohms...
Page 2
11- Use only attachments/accessories specified by QSC Audio Products, LLC 12- Use only with hardware, brackets, stands, and components sold with the apparatus or by QSC Audio Products, LLC 13- Unplug the apparatus during lightning storms or when unused for long periods of time.
Page 3
Thank you for choosing PowerLight 3 for your amplification needs. You have joined a worldwide community of professionals who rely on QSC products to perform under all conditions. QSC's vision is to be the most trusted provider of high quality audio products and services to artists and professionals worldwide.
Page 4
RACK MOUNTING EAR 2RU, fits #10-32 or M6. AC POWER SWITCH Relay Controlled Inrush Limiting OPTIONAL HANDLES See page 8 for Installation. MODEL NUMBER PL325, PL340, PL380 POWER PL380 POWERLIGHT 3 COOLING VENTS Rear-to-Front Air Flow. Keep Clear.
Page 5
8000 WATT POWER AMPLIFIER 8000 WATT POWER AMPLIFIER GAIN CONTROLS 21 Steps, 1dB Each. LED INDICATORS CLIP (Red) Shows Distortion, Limiting, Muting -10dB (Orange) Output is approaching Full Power -20dB (Green) Middle of Normal Range SIGNAL (Green) Low End of Normal Range POWER (Blue) Run or Standby BRIDGE PARALLEL Status of Input Mode Switch...
Page 6
XLR INPUT CONNECTORS Female and Male, Wired in Parallel for Daisychaining to Additional Equipment. Balanced Inputs, Impedance >10K Balanced: Unbalanced: QSC DATAPORT Supports QSC DataPort Products. CLIP LIMIT SWITCH (Ch1, Ch2) Off (No LED), On (Yellow) Unbalanced Pinout: GAIN SENSITIVITY SWITCH...
Page 7
COOLING VENTS SAFETY AGENCY AND Rear Intake. Keep Clear. RECYCLING MARKS AC POWER CABLE. Location and Type Vary By Model and AC Voltage. REAR SUPPORT EARS See page 10. AC BREAKER SERIAL NUMBER LABEL PL380 Only.
FRONT PANEL VENTILATION SLOTS •QSC amplifiers pull air from the rear, and exhaust it from the front, thus allowing the heat to dissipate without heating the rack. As the amp works harder, the fan will speed up and expel more hot air. The exhaust temperature can easily be sensed, unlike rear-exhaust amplifiers that may seem cool in front but which may be dumping hot air into the rack.
•The 26dB (Orange) and 32dB (Green) settings provide the same voltage gain for all models. When using these settings, all models will sound equally loud, but the more powerful amp will have more headroom. •The 1.2V setting provides the same input sensitivity for all models. Larger amps will sound proportionally louder, with the same amount of headroom.
Page 10
For portable, mobile, or other applications where the rack assembly may be moved, we strongly recommend supporting the rear of the amplifier. A rear rack ear kit is available from QSC’s Technical Services Group. Optional rack handles provide finger grips at each end, making lifting and setting into the rack more comfortable.
Specifications MAXIMUM OUTPUT POWER 1kHz, 1% clipping 8 ohms, both channels driven 4 ohms, both channels driven 2 ohms, both channels driven 8 ohms, bridge mono 4 ohms, bridge mono *Burst mode testing required due to AC service current limitations) TYPICAL DISTORTION 20-3kHz, 3dB below clip, or 20-5kHz, 10dB below clip, or 20-20kHz, 20dB below clip 8 ohms 4 ohms...
(USA only; other countries, see your dealer or distributor) Disclaimer QSC Audio Products, LLC is not liable for any damage to amplifiers or any other equipment that is caused by negligence or improper installa- tion and/or use of this loudspeaker product.
POWER POWER POWER TD-000235-02 revD SERIE POWERLIGHT 3 PL325 2500 WATT POWER AMPLIFIER 2500 WATT POWER AMPLIFIER PL340 4000 WATT POWER AMPLIFIER 4000 WATT POWER AMPLIFIER PL380 8000 WATT POWER AMPLIFIER 8000 WATT POWER AMPLIFIER Manual del usuario PL325 1250 vatios por canal a 2 ohmios PL340 2000 vatios por canal a 2 ohmios PL380...
Page 14
área residencial probablemente causará interferencia dañina, en cuyo caso el usuario necesitará corregir dicha interferencia por su cuenta. “QSC” y el logotipo de QSC están registrados con la Oficina de Patentes y Marcas Comerciales de los Estados Unidos Speakon® y PowerCon® son marcas comerciales registradas de Neutrik Inc.
Page 15
Ahora pertenece a una comunidad internacional de profesionales que confían en el rendimiento de los productos QSC bajo cualquier condición. La visión de QSC es convertirse en el proveedor más fiable de productos y servicios de sonido de alta calidad para los artistas y profesionales de todo el mundo.
Page 16
SOPORTE DE MONTAJE DEL BASTIDOR 2RU, para #10-32 o M6. CONMUTADOR ELÉCTRICO DE CA Limitación de corriente de arranque limitada por relé ASAS OPCIONALES Consulte la instalación en la página 20. NÚMERO DE MODELO PL325, PL340, PL380 POWER PL380 POWERLIGHT 3 VENTILAS DE ENFRIAMIENTO Flujo de aire de atrás hacia adelante.
Page 17
8000 WATT POWER AMPLIFIER 8000 WATT POWER AMPLIFIER CONTROLES DE GANANCIA 21 pasos, de 1dB cada uno. INDICADORES LED RECORTE (Rojo) Muestra deformación, Limitación, Silenciamiento -10dB (Anaranjado) La salida se acerca a la potencia total -20dB (Verde) Mitad del intervalo normal SEÑAL (Verde) Extremo inferior del intervalo normal POTENCIA (Azul) Funcionamiento o espera...
Page 18
Hembra y macho, cableados en paralelo para conectar en margarita el equipo adicional. Entradas equilibradas, impedancia >10K Equilibrada: No equilibrada: DATAPORT de QSC Admite productos DataPort de QSC. INTERRUPTOR LIMITADOR DE RECORTE (Canal 1, Canal 2) Apagado (sin LED), Encendido (Amarillo) equilibrada: CONMUTADOR SENSIBILIDAD...
Page 19
VENTILAS DE AGENCIA DE ENFRIAMIENTO SEGURIDAD Y Toma posterior. MARCAS DE Manténgase alejado. RECICLAJE CABLE DE ALIMENTACIÓN SOPORTES POSTERIORES Vea la página 22 DISYUNTOR DE CA ETIQUETA CON EL PL380 sólo. NÚMERO DE SERIE...
Page 20
VENTILAS DEL PANEL FRONTAL •Los amplificadores QSC extraen aire desde la parte posterior y lo descargan desde la parte frontal, permitiendo así que el calor se disipe sin calentar el bastidor. Conforme el amplificador trabaja más, el ventilador aumenta su velocidad y expele más aire caliente. La temperatura de descarga se puede detectar fácilmente, a diferencia de los amplificadores de descarga posterior que parecen fríos en el frente pero que...
Page 21
CARACTERÍSTICAS DEL PANEL POSTERIOR CONEXIONES DE ENTRADA •Las entradas equilibradas de precisión ofrecen rechazo superior a los zumbidos, y aceptan niveles de entrada mayores de 21dBu en todos los ajustes de sensibilidad (consulte las especificaciones). •Los conectadores XLR hembra y macho, los bloques terminales enchufables y las señales de entrada DataPort están conectadas en paralelo para cada canal.
Page 22
Para aplicaciones portátiles, móviles u otras aplicaciones donde puede moverse el conjunto del bastidor, recomendamos enfáticamente sujetar la parte posterior del amplificador. Se dispone de un juego de orejas de montaje posterior en bastidor del Grupo de Servicios Técnicos de QSC.
Page 23
Especificaciones POTENCIA DE SALIDA MÁXIMA 1kHz, recorte de 1 % 8 ohmios, ambos canales excitados 4 ohmios, ambos canales excitados 2 ohmios, ambos canales excitados 8 ohmios, monopuenteado 4 ohmios, monopuenteado *Se requiere la prueba del modo ráfaga debido a las limitaciones de corriente del servicio de CA) DEFORMACIÓN TÍPICA 20-3kHz, 3dB por debajo del recorte, o 20-5kHz, 10dB por debajo del recorte, o 20-20kHz, 20dB por debajo del recorte 8 ohmios 4 ohmios...
Page 24
(sólo para EE.UU.; para otros países, consulte con su vendedor o distribuidor) Renuncia QSC Audio Products, LLC no es responsable de ningún daño a los amplificadores ni a ningún otro equipo que sea causado por negligencia o instalación y/o uso incorrectos de este producto de altavoz.
Page 25
POWER POWER POWER TD-000235-03 rév. D POWERLIGHT SÉRIE 3 PL325 2500 WATT POWER AMPLIFIER 2500 WATT POWER AMPLIFIER PL340 4000 WATT POWER AMPLIFIER 4000 WATT POWER AMPLIFIER PL380 8000 WATT POWER AMPLIFIER 8000 WATT POWER AMPLIFIER Manuel d'utilisation PL325 1 250 watts par canal à 2 ohms PL340 2 000 watts par canal à...
Page 26
11- Utiliser uniquement les accessoires spécifiés par QSC Audio Products, LLC 12- Utiliser uniquement avec la visserie, les supports, socles et composants vendus avec l’appareil ou par QSC Audio Products, LLC 13- Débrancher l’appareil en cas d’orage électrique ou lorsqu’il est inutilisé pendant longtemps.
Page 27
Merci d'avoir choisi le PowerLight 3 pour vos besoins d'amplification, ayant ainsi rejoint une communauté mondiale de professionnels qui font confiance aux produits QSC, quelles que soient les conditions. QSC a pour ambition d'être le fournisseur le plus fiable de produits et services audio de haute qualité...
Page 28
OREILLE DE FIXATION DU BÂTI 2 unités de bâti, compatible avec #10-32 ou M6. INTERRUPTEUR D’ALIMENTATION SECTEUR Limitation de courant d'appel commandée par relais POIGNÉES EN OPTION Pour l'installation, voir la page 32. NUMÉRO DE MODÈLE PL325, PL340, PL380 POWER PL380 POWERLIGHT 3 ÉVENTS DE REFROIDISSEMENT...
Page 29
8000 WATT POWER AMPLIFIER 8000 WATT POWER AMPLIFIER COMMANDES DE GAIN 21 incréments de 1 dB. VOYANTS CLIP (rouge) Affiche la distorsion, la limitation, la coupure de son -10dB (orange) Sortie proche de la pleine puissance -20dB (vert) Centre de la plage normale SIGNAL (vert) Limite inférieure de la plage normale POWER (bleu) Fonctionnement ou Attente...
Page 30
Entrées équilibrées, Impédance >10 k Équilibrée : Non équilibrée : QSC DATAPORT Prend en charge les produits QSC DataPort. COMMUTATEUR DE LIMITATION D'AMPLITUDE (Ch 1, Ch 2) Off (pas de voyant), On (jaune) COMMUTATEUR DU FILTRE PASSE-...
Page 31
MARQUES ÉVENTS DE D'HOMOLOGATION REFROIDISSEMENT DE SÉCURITÉ ET DE Admission arrière. Ne RECYCLAGE pas boucher. CÂBLE D'ALIMENTATION Emplacement et type variables en fonction du modèle et de la tension c.a. OREILLES DE SUPPORT ARRIÈRE Voir la page 34. COUPE-CIRCUIT C.A ÉTIQUETTE DU PL380 seulement.
Page 32
FENTES DE VENTILATION DU PANNEAU AVANT •Les amplificateurs QSC aspirent l'air par l'arrière et l'évacuent par l'avant, ce qui permet la dissipation de chaleur sans chauffer le bâti. Le ventilateur accélère en fonction de la chauffe de l'amplificateur pour expulser une plus grande quantité d'air chaud. La température de l'air évacué...
Page 33
CARACTÉRISTIQUES DU PANNEAU ARRIÈRE BRANCHEMENTS D'ENTRÉE •Les entrées équilibrées avec précision procurent un rejet optimum du ronflement et acceptent des niveaux d'entrée >21 dBu pour tous les réglages de sensibilité (voir Caractéristiques techniques). •Les XLR femelle et mâle, les borniers enfichables et les signaux d'entrée DataPort sont tous câblés en parallèle pour chaque canal.
Page 34
Pour les applications portables, mobiles ou autres où le bâti pourra être déplacé, nous vous recommandons vivement de soutenir l’arrière de l’amplificateur. Un kit de pattes de fixation pour bâti arrière est disponible auprès des services techniques de QSC. Les poignées de bâti en option ont des points de préhension à chaque extrémité, ce qui permet de soulever et de placer plus facilement l'amplificateur dans le bâti.
Page 35
Caractéristiques techniques PUISSANCE DE SORTIE MAXIMUM 1 kHz, limitation d'amplitude de 1 % 8 ohms, deux canaux pilotés 4 ohms, deux canaux pilotés 2 ohms, deux canaux pilotés 8 ohms, pont mono 4 ohms, pont mono *Essais du mode Salve requis en raison des limitations de courant de ligne c.a) DISTORSION TYPIQUE 20-3 kHz, 3 dB en dessous de la limitation d'amplitude ou 20-5 kHz, 10 dB en dessous de la limitation d'amplitude ou 20- 20 kHz, 20 dB en dessous de la limitation d'amplitude 8 ohms...
Page 36
QSC Audio Products - Garantie limitée de 3 ans QSC Audio Products, LLC (« QSC ») garantit que ses produits sont dépourvus de tout vice de fabrication et /ou de matériel pendant une période de trois (3) ans à partir de la date de vente et remplacera les pièces défectueuses et réparera les produits qui fonctionnent mal dans le cadre de cette garantie si le défaut survient dans des conditions normales d’installation et d’utilisation - à...
POWER POWER POWER TD-000235-04 Rev. D SERIE POWERLIGHT 3 PL325 2500 WATT POWER AMPLIFIER 2500 WATT POWER AMPLIFIER PL340 4000 WATT POWER AMPLIFIER 4000 WATT POWER AMPLIFIER PL380 8000 WATT POWER AMPLIFIER 8000 WATT POWER AMPLIFIER Benutzerhandbuch PL325 1250 W pro Kanal bei 2 Ohm PL340 2000 W pro Kanal bei 2 Ohm PL380...
Page 38
Stelle, an der das Kabel aus dem Gerät austritt. 11. Nur von QSC Audio Products, LLC spezifiziertes Zubehör verwenden. 12. Nur mit Befestigungsteilen, Halterungen, Ständern und Komponenten verwenden, die zusammen mit dem Gerät bzw. von QSC Audio Products, LLC verkauft werden.
Blick inspiziert und jedem System angepasst werden können. Ohne interne digitale Verarbeitung und Signalverzögerungen können diese Verstärker nach Belieben mit allen Arten herkömmlicher Verstärker kombiniert werden. Über den QSC DataPort kann auf das komplette Spektrum digitaler Prozessoren und der Fernbedienungs-Überwachungssysteme von QSC zugegriffen werden.
RACK-MONTAGEWINKEL 2RU, passend zu Größe 10- 32 oder M6. NETZSCHALTER Relaisgesteuerte Einschaltstrombegrenzung OPTIONALE HALTEGRIFFE Für Installation siehe Seite MODELLNUMMER PL325, PL340, PL380 POWER PL380 POWERLIGHT 3 BELÜFTUNGSSCHLITZE Luftstrom von hinten nach vorne. Von Blockierungen freihalten.
8000 WATT POWER AMPLIFIER 8000 WATT POWER AMPLIFIER VERSTÄRKUNGSREGLER 21 Stufen zu je 1 dB. LED-ANZEIGEN CLIP (rot) Zeigt Verzerrung, Begrenzung, Stummschaltung an -10 dB (orange) Ausgang ist fast bei voller Leistung -20 dB (grün) Mitte des Normalbereichs SIGNAL (grün) Unteres Ende des Normalbereichs NETZSTROM (blau) BRIDGE PARALLEL Status des Eingangsmodusschalters (gelb) (orange)
Page 42
Symmetrische Stiftbelegung: XLR-EINGANGSANSCHLÜSSE Buchse und Stecker, für Daisy-Chain- Verbindungen mit Zusatzausrüstung parallel verdrahtet. Symmetrische Eingänge, Impedanz >10 K Symmetrisch: Asymmetrisch: QSC DATAPORT Unterstützt QSC-DataPort-Produkte CLIPBEGRENZUNGSSCHALTER (Ch1, Ch2) Aus (keine LED), Ein (gelb) Asymmetrische Stiftbelegung: VERSTÄRKUNGS- EMPFINDLICHKEITS- SCHALTER 26 dB(orange) 32 dB (grün)
Page 43
BELÜFTUNGSSCHLITZE KENNZEICHEN VON SICHERHEITSBEHÖRDEN Hinterer Lufteinlass von UND RECYCLING- Behinderungen frei halten. MARKIERUNGEN NETZSTROMKABEL Position und Typ sind nach Modell und Netzspannung verschieden. HINTERE MONTAGEWINKEL Siehe Seite 46. NETZTRENNSCHALTER SERIENNUMMERNSCHILD Nur PL380.
Page 44
FRONTPLATTEN-LÜFTUNGSSCHLITZE •QSC-Verstärker saugen Luft von der Rückseite an und stoßen Sie auf der Vorderseite aus, sodass die Wärme ohne Erwärmung des Racks abgeführt werden kann. Wenn dem Verstärker mehr Leistung abverlangt wird, dreht sich der Lüfter schneller und es wird mehr warme Luft ausgestoßen.
Page 45
FUNKTIONSMERKMALE DER HINTEREN PLATTE EINGANGSANSCHLÜSSE •Symmetrische Präzisionseingänge bieten eine ausgezeichnete Netzbrummunterdrückung und nehmen bei allen Empfindlichkeitseinstellungen Eingangspegel von >21 dBu auf (siehe technische Daten). •Alle XLR-Stecker und -Buchsen, steckbaren Klemmenleisten und DataPort-Eingangssignale sind für jeden Kanal parallel verdrahtet. •Paralleles DataPort-Routing wird erstmals in der PL3-Serie verwendet. Somit können über den DataPort verbundene Signale zu anderen Verstärkern durchgeschaltet werden.
Page 46
Bei tragbaren, mobilen oder anderen Anwendungen, bei denen die Rackbaugruppe bewegt werden kann, empfehlen wir dringend, die Rückseite des Verstärkers abzustützen. Ein Rackeinbau-Montagewinkel-Kit zur Befestigung an der Rückseite ist beim technischen Kundendienst von QSC erhältlich. Optionale Rackgriffe sehen Griffstellen an jedem Ende vor, um das Anheben des Geräts und sein Absetzen im Rack zu erleichtern.
Technische Daten MAX. AUSGANGSLEISTUNG 1 kHz, 1-%-Clipping 8 Ohm, beide Kanäle angesteuert 4 Ohm, beide Kanäle angesteuert 2 Ohm, beide Kanäle angesteuert 8 Ohm, Bridge-Mono 4 Ohm, Bridge-Mono *Burst-Mode-Tests wegen Netzstrombegrenzungen erforderlich) TYPISCHE VERZERRUNG 20-3 kHz, 3 dB unter Clip oder 20-5 kHz, 10 dB unter Clip oder 20-20 kHz, 20 dB unter Clip 8 Ohm 4 Ohm 2 Ohm...
Page 48
Beschränkte Dreijahresgarantie durch QSC Audio Products QSC Audio Products, LLC („QSC“) gewährleistet, dass seine Produkte für einen Zeitraum von drei (3) Jahren ab dem Kaufdatum keine Material- und/oder Ausführungsfehler aufweisen werden, und QSC verpflichtet sich zum Ersatz defekter Teile und zur Reparatur funktionsgestörter Produkte gemäß...
POWER POWER POWER TD-000235-05 rev.D PL325 2500 WATT POWER AMPLIFIER 2500 WATT POWER AMPLIFIER PL340 4000 WATT POWER AMPLIFIER 4000 WATT POWER AMPLIFIER PL380 8000 WATT POWER AMPLIFIER 8000 WATT POWER AMPLIFIER POWERLIGHT 3 PL325 1250 W/ 通道, 2 欧姆 PL340 2000 W/ 通道,...
