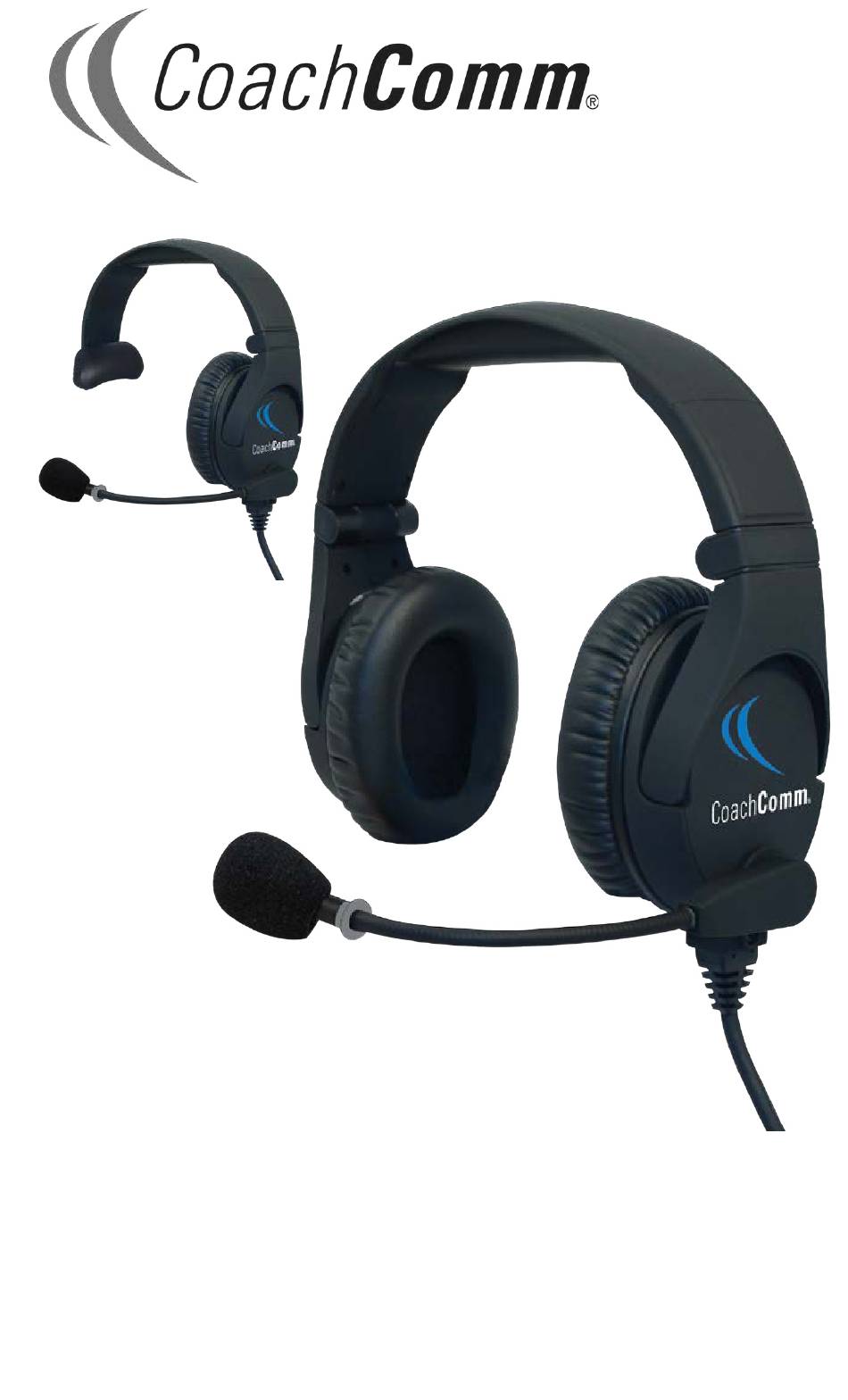

- Page 1 SmartBoom ® SBP-191E / SBP-192E...
-
Page 2: Safety Information
800.749.2761 Copyright ©2019 CoachComm, LLC. All rights reserved. The CoachComm logo and SmartBoom ® word mark are trademarks of CoachComm, LLC. All other trademarks are property of their respective owners. Document Reference: 2019.01 D0000485_A Safety Information The following section details important safety information related to the ownership and operation of SmartBoom PRO. -
Page 3: Operation
What’s included with SmartBoom PRO? Each SmartBoom PRO headset comes complete with everything needed to get started. Unpack your device and familiarize yourself with the following components: • Headset (assembled with ear and head pads) • Removable connector cable (arrives attached to headset) •... - Page 4 SmartBoom Mic Mute: During operation, swiveling the boom up above the brow at approximately 45 degrees will mute the microphone. To activate the microphone again, simply lower the boom back down. Mute/Unmute at 45 Figure 4 SmartBoom Mute On/Off Note: To adjust the boom, swivel it so that the microphone is on the preferred side (right or left).
-
Page 5: Troubleshooting
Cable Clip Installation: Gently stretch the clip loops to separate them. Insert the XLR headset connector through the middle loop of the cable clip. Wiring for Connector Inputs PIN CONNECTIONS Headset Wire Dual Mini Plug Pin (Color and Description) Blue - Speaker R+ R (Right) Brown - Speaker L+ Red - Speaker R-... -
Page 6: Physical Features
Cable 3.8 oz (107.73 g) *Notice about Specifications: While CoachComm makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice. Performance specifications included in this manual are design-centered specifications and are included for customer guidance and do facilitate system installation. -
Page 7: Product Care And Maintenance
Authorization (RMA) Number. Obtaining an RMA Number will ensure that your equipment is handled promptly. All shipments of CoachComm products should be made via UPS, or the best available shipper, prepaid and insured. The equipment should be shipped in the original packing carton; if that is not available, use any suitable container that is rigid and of adequate size to surround the equipment with at least four inches of shock-absorbing material. -
Page 8: Warranty Information
The sole obligation of CoachComm, LLC during the warranty period is to provide, without charge, parts and labor necessary to remedy covered defects appearing in products returned prepaid to CoachComm, LLC.
