CoachComm Connex Quick Start Manual

S E T T I N G

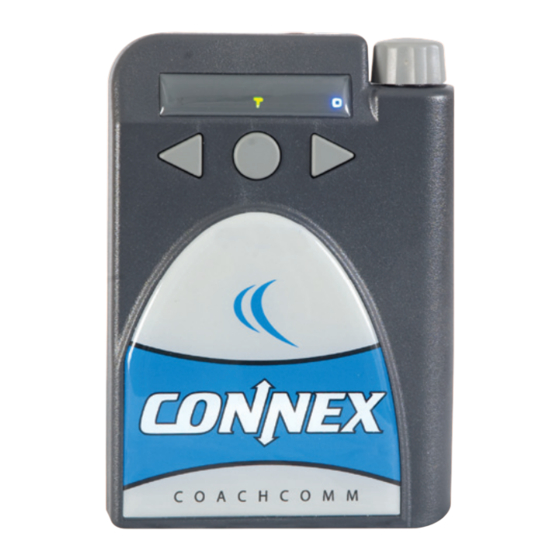

Wired Beltpack
1
Connect Beltpack to Command Center
Cat5 Cable
2
Connect and Position Headset
Place the microphone directly in front of Place the microphone directly in front of
mouth, almost touching the lips.
3
Power ON the Beltpack
Turn the volume knob clockwise to turn on
Note: Wired Beltpack must be plugged into Command
Center to receive power.
Powered by
CXQSG_REV7_2013.indd 1
U P T H E
4
Adjust the Volume Level
A) Press the Talk Button
and the Talk LED light turns
green.
B) Turn the Volume up all
the way and then back
down a quarter of a turn.
Your own voice may
sound low to you, but
others will hear you loud
and clear.
5
Set the Channel
Defense Offense
6
Repeat
Repeat this procedure for the other wired
beltpacks that will be in use.
Contact Information
Customer Service Department
1.800.749.2761
8 AM – 5 PM CST M–F
customer.service@coachcomm.com
Refer to the Connex User Manual for Important FCC
Information
CXQSG-REV7 ©Copyright 2013 CoachComm, LLC. All Rights Reserved.
CX_QSG_D0000101_2013_RevA
