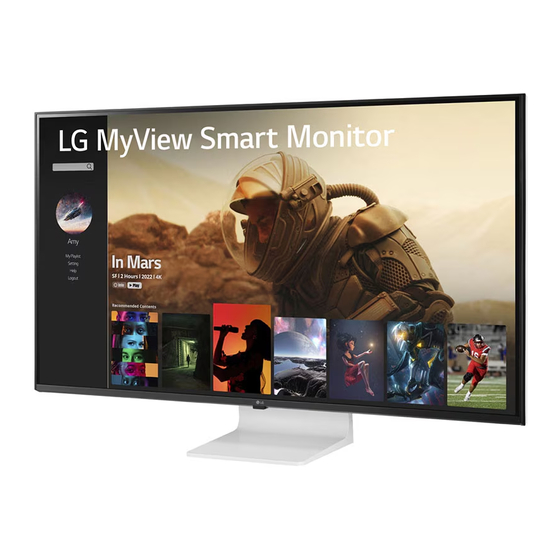

LG 43SQ700S Owner's Manual

Smart display
Hide thumbs Also See for 43SQ700S:
Table of Contents

Advertisement

Quick Links

LG SMART Display
OWNER'S MANUAL
Please read this manual carefully before
operating your set and retain it for future
reference.
43SQ700S
The model and serial number of the product are located on the
back and on one side of the product. Record them below in case
you ever need service.
Model
Serial No.
www.lg.com
Copyright © 2023 LG Electronics Inc.
All Rights Reserved.
Supplier's Declaration of Conformity
Trade Name
LG
Responsible
LG Electronics USA,
Party
Inc.
Address
111 Sylvan Avenue,
North Building,
Englewood Cliffs,
NJ 07632
E-mail
lg.environmental@
lge.com

Advertisement

Table of Contents
loading

Related Manuals for LG 43SQ700S

Summary of Contents for LG 43SQ700S

  • Page 1 Copyright © 2023 LG Electronics Inc. All Rights Reserved. LG SMART Display OWNER’S MANUAL Please read this manual carefully before operating your set and retain it for future reference. 43SQ700S Supplier's Declaration of Conformity Trade Name Responsible LG Electronics USA, Party Inc.

  • Page 2: Before Reading This Manual

    • The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies. • Magic Remote Control : MR22GA (MR22GA model can be used in common with some TV products and this LG Smart Display) Check whether your model supports Bluetooth in the Wireless Module Specification to verify whether it can be used with the Magic Remote.

  • Page 3: Precautions In Installing The Product

    • Never disassemble, repair or modify the power cord or AC adapter. - This may cause a fire or electric shock. • Use only the power cord supplied with the unit or another manufacturer's authorized cord. - Failure to do so may result in fire or electrical shock or damage to the product. •...

  • Page 4: Precautions In Moving The Product

    • If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG Customer Service. - If you continue to use without taking proper measures, electrical shock or fire can occur.

  • Page 5: Precautions In Using/Cleaning The Product

    - Fire or electric shock can occur. - Contact LG Customer Service for repair. • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product.

  • Page 6: Installing On A Table

    Installation Installing on a Table • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm (3.9 inches) away from the wall to ensure sufficient ventilation. : 100 mm (3.9 inches) • Unplug the power cord before moving or installing the monitor. There is risk of electric shock. •...

  • Page 7: Adjusting The Angle

    Leveling the Screen If the screen appears crooked to one side after the product has been placed in position, straighten the angle horizontally as follows. Adjusting the Angle Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -5 ° to 10 °...

  • Page 8: Using The Kensington Lock

    Using the Kensington Lock For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website at http://www.kensington.com. Connect the monitor to a table using the Kensington security system cable. Note • The Kensington security system is optional. You can obtain optional accessories from most electronics stores.
  • Page 9 Insert the webcam according to the direction in which you wish the camera to shoot, and use it after connecting it to the monitor. Note • The webcam is an optional feature and is not supplied as an accessory. This part can be purchased from LG Electronics Service Center. - Part Number : EBP64154901 •...

  • Page 10: Moving And Lifting The Monitor

    Moving and Lifting the Monitor When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • Place the monitor in the original box or packing material before attempting to move it. •...

  • Page 11: Hdmi Connection

    Connections You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided.

  • Page 12: Usb-C Connection

    • Do not press the screen with your finger for a prolonged period as this may result in temporary distortion on the screen. • Avoid displaying static images on the screen for a long period of time to prevent retention. Use a screensaver if possible. •...

  • Page 13: External Device Connection

    External Device Connection Some of the cables are not provided. Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode. For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended. USB Device connection The USB port on the product functions as a USB hub.

  • Page 14: Starting Display

    Starting Display Parts and Buttons The image may be different according to the model. Power On (Press) 1) All running apps will close. Power Off (Press and Hold) 2) You can access and adjust the menu by pressing the button. Menu Control (Press 3) You can use the function when you access menu control.

  • Page 15: Specifications

    Specifications Environment Condition Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity Less than 85 % Product Information Wireless module(LGSBWAC03)Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 20 dBm 5,150 to 5,725 MHz...
  • Page 16 HDMI/USB-C DTV supported HDMI/USB-C PC supported mode Mode • PC audio is not supported. Horizontal Frequency Vertical Frequency Resolution (kHz) (Hz) Horizontal Frequency Vertical Frequency Resolution (kHz) (Hz) 31.46 59.94 640 x 480p 31.50 60.00 640 x 350 31.46 70.09 31.46 59.94 720 x 400...

  • Page 17: Open Source Software Notice Information

    LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

  • Page 18: Troubleshooting

    Troubleshooting Nothing is displayed on the screen. • Is the monitor's power cord plugged in? - Check if the power cord is correctly plugged into the power outlet. • Is the [No Signal] message being displayed? - This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it. Screen display is unstable and shaky.
  • Page 19 Do you see an "Unrecognized monitor, monitor found" message? • Have you installed the display driver? - Be sure to install the display driver from our web site: https://www.lg.com. - Make sure to check if the graphics card supports function.

  • Page 20: Using Remote Control

    Using Remote Control Replacing the Remote Control Battery Remove the screws to open the battery cover. Insert the battery to be replaced (CR2025/ 3 V) with the side aligned with the label on the battery compartment. Close the battery cover and tighten the screw. To remove the battery, perform the installation actions in reverse.
