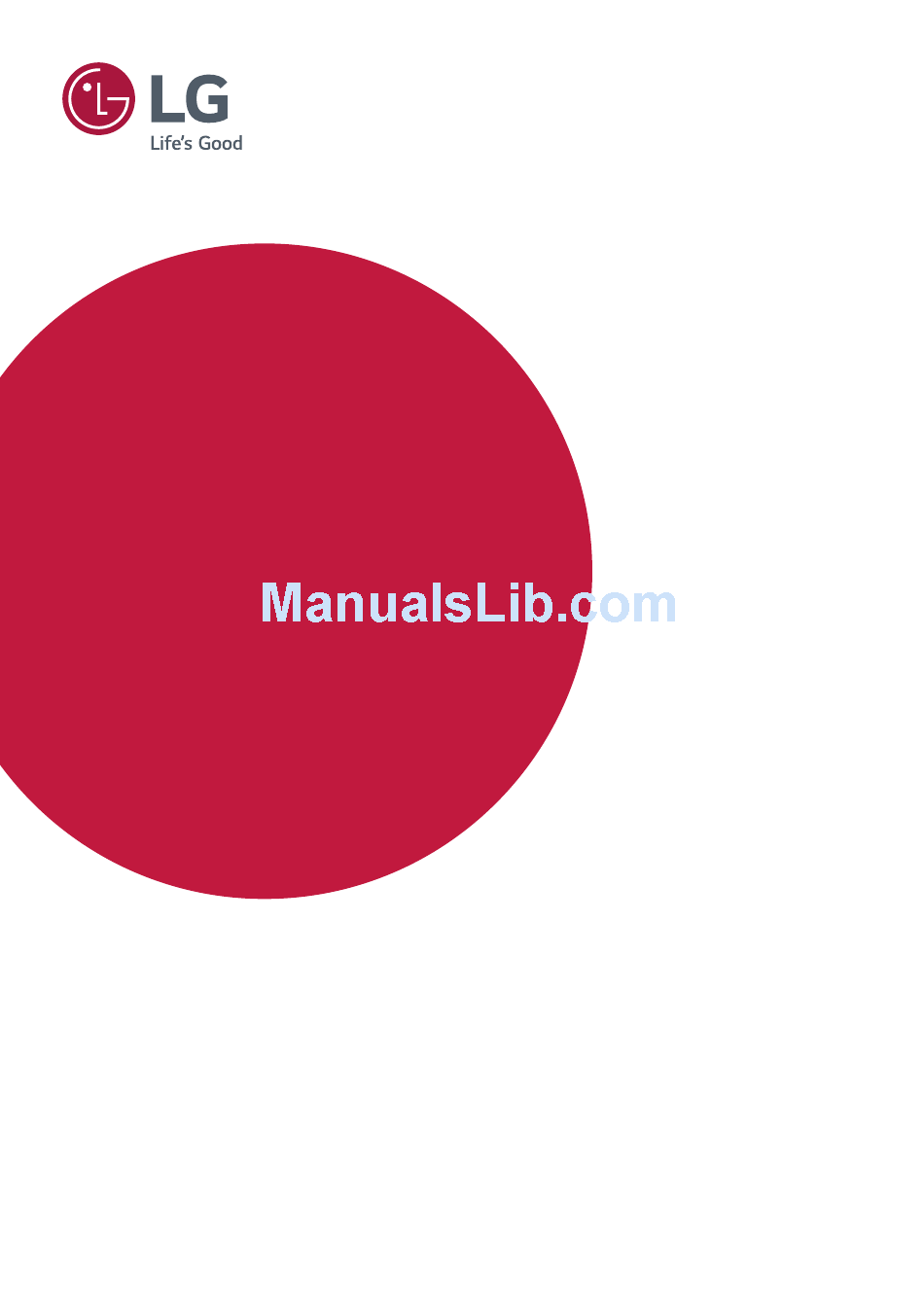

- Page 1 OWNER’S MANUAL LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 43SE3DD 49SE3DD 55SE3DD www.lg.com Copyright © 2017 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
- Connecting the Speakers ..........15 - Using the IR Receiver ...........16 - Portrait Layout ..............17 - Attaching and removing the LG Logo Bracket ............18 - Installing on a Wall ............20 REMOTE CONTROL ....23 - Displaying the Device Name Connected to an Input Port ................25... -
Page 3: Safety Precaution
WARNING - This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. SAFETY PRECAUTION Please read these safety precautions carefully before using the product. WARNING If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. - Page 4 If you install the product in a place that does not meet the recommended conditions, this may cause serious damage to the product’s picture quality, life cycle, and appearance. Please check with LG or a qualified installer before installing. This caution applies to a place where there is an abundance of fine dust or oil mist, chemical substances are used, the temperature is very high or low, the humidity is very high, or the product is likely to remain turned on for a long period of time (airport and train station).
-
Page 5: Precautions To The Ac Adapter And Electrical Power
- If loosely connected, the poor connection may cause a fire or electric shock. • Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc. - The use of non-approved products may cause a fire or electric shock. - Page 6 • Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. - You may be electrocuted due to excess moisture. • If you don’t intend to use the product for a long time, unplug the power cable from the product.
-
Page 7: Precautions In Moving The Product
Precautions In Moving the Product WARNING • Make sure to turn off the product. - You may be electrocuted or the product can be damaged. • Make sure to remove all cables before moving the product. - You may be electrocuted or the product can be damaged. •... -
Page 8: Mounting On A Wall
CAUTION • Do not put or store inflammable substances near the product. - There is a danger of explosion or fire due to careless handling of the inflammable substances. • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. -
Page 9: Licenses
LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -
Page 10: Assembly And Preparation
SuperSign Software & Manual - Downloading from the LG Electronics website. - Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model. • The warranty will not cover any damage caused by using the product in an excessively dusty environment. -
Page 11: Optional Accessories
The illustrations in this manual may differ from the actual product and accessories. Stand kit Stand Stand Spacers Screws Diameter 4.0 mm x Pitch 0.7 mm ST-432T 43SE3DD x Length 14 mm (including spring ST-492T 49SE3DD, 55SE3DD washer) Speaker kit Speakers... - Page 12 Media Player kit Media Player Screws CD (Owner’s Manual)/ Cards MP500/ MP700 Wi-Fi Dongle kit AN-WF500 NOTE • Cable holder/Cable tie may not be available in some areas or for some models. • Optional accessories are available for some models. If necessary, please purchase them separately. •...
-
Page 13: Parts And Buttons
Parts and Buttons The image may be different according to the model. Buttons • INPUT: Changes the input source. • MENU: Accesses the main menus, or saves your input and exits the menus. • : Adjust the up and down. •... -
Page 14: Connecting The Stand
Connecting the Stand - For certain models only. - The image may be different according to the model. -
Page 15: Connecting The Speakers
Connecting the Speakers - For certain models only. - The image may be different according to the model. Connect an input signal cable before installing the speakers. Mount the speakers by using screws as shown below. Make sure the power cable is disconnected before making a connection. -
Page 16: Using The Ir Receiver
Using the IR Receiver - The image may be different according to the model. This allows a remote control sensor to be placed in a custom location. Then that display can control other displays via an RS-232C cable. Install the IR receiver towards the front of the set. IR Receiver cable NOTE •... -
Page 17: Portrait Layout
Portrait Layout When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen). Using Kensington Lock (This is not available for all models.) The Kensington security system connector is located at the back of the monitor. For more information on installation and use of this system, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. -
Page 18: Attaching And Removing The Lg Logo Bracket
LG Logo Bracket to the bottom rear of the monitor. LG Logo Bracket After removing the screw, remove the LG Logo Bracket. When re-attaching the LG Logo Bracket, repeat the process in reverse order. - Page 19 LG Logo Bracket to the bottom rear of the monitor. LG Logo Bracket After removing the screw, remove the LG Logo Bracket. Attach the LG Logo Bracket with a screw, aligning it with the hole on the right side.
-
Page 20: Installing On A Wall
Screws which are longer than standard length may damage the inside of the monitor. A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents related to the use of non-standard screws. - Page 21 Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock. • If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. Use an authorized LG wall mount and contact your local dealer or qualified personnel to assist with the installation.
- Page 22 Securing the monitor to a wall (optional) (Depending on model) Insert and tighten the eyebolts, or brackets and bolts on the back of the monitor. - If there are already bolts inserted in the eyebolts’ position, remove the other bolts first. Mount the wall brackets with the bolts to the wall.
-
Page 23: Remote Control
REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching terminals to the labels inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. - Page 24 Selects the Picture Mode. Views the information of the currently program and the screen. Enters the White Balance menu. Accesses the main menus or saves your input and exit menus. SuperSign menu key. Navigation Buttons Scrolls through menus or options. Selects menus or options and confirms your input.
-
Page 25: Displaying The Device Name Connected To An Input Port
Displaying the Device Name Connected to an Input Port Display which devices are connected to which external input ports. Access the Input list screen and press the red (input label) button on the remote control. You can assign an input label for every input except USB. NOTE •... -
Page 26: Making Connections
MAKING CONNECTIONS You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided. - Page 27 NOTE • The monitor set with the HDMI connection for the best image quality. • To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a D-sub 15-pin cable and HDMI cable. •...
-
Page 28: Troubleshooting
TROUBLESHOOTING No image is displayed. Problem Action Is the product power cord connected? • Check if the power cord is correctly plugged into the power outlet. Does the ‘Invalid Format’ message • The signal from your PC (graphics card) is out of the vertical or appear? horizontal frequency range of the monitor. - Page 29 The screen image looks abnormal. Problem Action Is the screen position incorrect? • Check the D-Sub analog signal: Press the AUTO button on your remote control to automatically select an optimal screen setting that matches the current mode. If you are not satisfied with the adjustment, go to [PICTURE] →...
- Page 30 The audio function does not work. Problem Action No sound? • See if the audio cable is connected properly. • Adjust the volume. • See if the sound is set properly. Sound is too dull. • Select the appropriate equalizer sound. Sound is too low.
- Page 31 CAUTION • Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood of image sticking occurring when using a fixed image.
-
Page 32: Product Specifications
PRODUCT SPECIFICATIONS The product specifications below may be changed without prior notice due to upgrade of product functions. “ ” refers to alternating current (AC), and “ ” refers to direct current (DC). LCD screen Screen type Thin Film Transistor (TFT) Liquid Crystal Display (LCD) Screen Video signal Maximum resolution... - Page 33 43SE3DD LCD Panel Pixel Pitch 0.4902 mm (H) x 0.4902 mm (V) Power Rated Voltage AC 100-240 V ~ 50/60 Hz 0.9 A Power Consumption On Mode: 55 W (Typ.) Sleep Mode: ≤ 0.5 W Off Mode: ≤ 0.5 W...
- Page 34 RGB (PC) Support mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) 720 x 400 31.468 70.8 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 720 44.772 59.855 1280 x 960 1152 x 864 57.717 59.934 1280 x 1024...
- Page 35 HDMI (DTV) Support mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) 480/60p 31.5 576/50p 31.25 720/50p 37.5 720/60p 1080/50i 28.1 1080/60i 33.75 1080/50p 56.25 1080/60p 67.5 NOTE • Resolutions available for the Input Label option in RGB, HDMI input modes. - PC resolutions: 640 x 480 / 60 Hz, 1280 x 720 / 60 Hz, 1920 x 1080 / 60 Hz - DTV resolutions: 480p, 720p, 1080p •...
- Page 36 Make sure to read the Safety Precautions before using the ENERGY STAR is a set of power-saving ® product. guidelines issued by the U.S.Environmental Protection Agency The model and serial numbers of the SET are located on the (EPA). As an ENERGY STAR Partner LGE ®...
