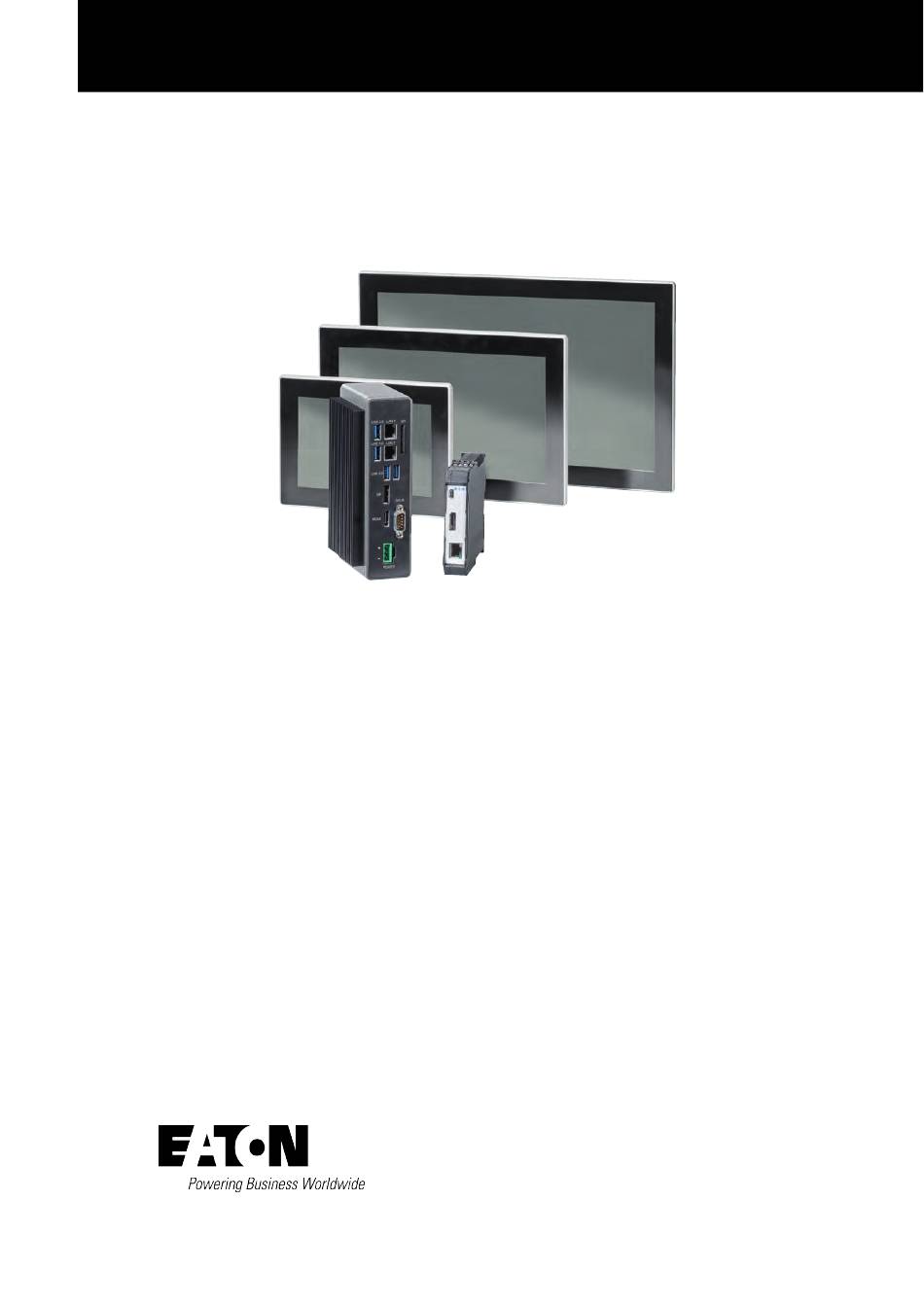

Page 1: Industrial Pc Xp-504 Manual
11/2022 MN048028EN Manual Industrial PC XP-504 Manual...
Page 2: Company Information
No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, micro-filming, record- ing, or otherwise, without the prior written permission of Eaton Industries GmbH, Bonn. Subject to alteration.
Page 3: Before Starting With The Installation
DANGER! Hazardous electrical voltage! Before starting with the installation Installation requires qualified electrician desktop devices and portable devices only when the housing is closed. Disconnect the power supply of the device. Measures should be taken to ensure the proper Secure against retriggering restarting of programs interrupted after a voltage Verify isolation from the supply dip or outage.
Page 5: Table Of Contents
Accessory devices Support Conditions for Underwriters Laboratories Inc. (UL) listing Conditions for Underwriters Laboratories Inc. (UL) listing in haz- ardous locations - UL-EX Use in hazardous locations - ATEX 1.10 Marine approvals Safety regulations Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 6 Terminal with Extender RX 3.3.4 Box-PC 3.3.5 Extender TX Unpacking and checking the equipment supplied Mounting 3.5.1 Panel-PC, Terminal and Terminal with Extender RX 3.5.1.1 Preparations 3.5.1.2 Installing the Panel-PC and Terminals 3.5.2 Box-PC Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 7 SD card USB interfaces 4.3.1 USB Host 4.3.2 USB-B 4.3.3 Mini USB-B Ethernet Display interfaces 4.5.1 DisplayPort (DP) 4.5.2 High Definition Multimedia Interface (HDMI) Serial interfaces RS232/RS422/RS485 DVI-I Commissioning Initial commissioning 5.1.1 Connecting peripheral devices Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 8 Dedicated features 7.2.3.1 Protect Mode (Operated with two drives, C:\ and D:\) 7.2.3.2 Protect-Mode data organization 7.2.4 Managing users and configuring the XP-504 7.2.5 Modifying an Account Name or Password 7.2.6 Device start without user login dialog box 7.2.7 License Eaton Galileo-Open Runtime 7.2.8...
Page 9 XP-504-10-...Terminal with Extender RX A.1.2.9 XP-504-15-...Terminal with Extender RX A.1.2.10 XP-504-21-...Terminal with Extender RX A.1.2.11 XP-504-EXT module A.1.3 General data A.1.4 Information on the power supply A.1.5 Approvals and declarations Further usage information Alphabetical index Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 10: About This Documentation
0.1 About this documentation 0.1 About this documentation This Manual contains all the information you will need in order to use the XP-504 safely and effectively. The Manual XP-504 manual is considered an integral part of the device and must always be readily available in the device's close proximity so that users have access to it.
Page 11: Target Group
Installation requires qualified electrician Follow the safety instructions for the XP-504! The section on safety instructions must be read and understood by everyone who will be working with the XP-504 before the actual work is performed Human-machine interface. WARNING Incomplete documents...
Page 12: Legal Disclaimer
Do not use the XP-504 before reading and understanding this manual. Hazards posed by the XP-504 cannot be eliminated if the safety instructions are not observed – especially if the XP-504 is installed and commissioned by unqualified per- sonnel and/or is used improperly.
Page 13: Writing Conventions
Dangerous Electrical Voltage! CAUTION Warns of the possibility of hazardous situations that can cause injury. Property damage warning CAUTION Warns about the possibility of material damage. Prohibited uses, actions, etc. Explains the prohibition Explains the instruction Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 14: Additional User Information
Documents (such as manuals) are listed after the icon together with the cor- responding name and Eaton number. Publication title For identifying the Eaton publication code External Internet addresses. They will be shown after the icon. Destination address Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 15: Description
1. Description XP-504 devices can be used as control and monitoring devices. XP-504 devices are the answer to the growing demand of machine and system manu- facturers for high-precision, cost-effective HMI solutions with industrial-grade capa- citive multi-touch technology. Accordingly, the XP-504 series offers Widescreen devices with sizes of 10.1", 15.6", and 21.5".
Page 16 1. Description Fig. 2: Series overview Combining XP-504 devices with each other Each PC can be connected to a maximum of two terminals. Each Panel-PC or Box-PC can be expanded with two Terminals, two Terminal with Extender RX, or one Terminal and one Terminal with Extender RX.
Page 17: Use As Intended
1.1 Use as intended 1.1 Use as intended The devices of the XP-504 series are primarily intended for use in machine and sys- tem building applications. They are suitable for use in industrial environments and are typically used indoors for automation purposes.
Page 18: Configuration Of The Xp-504-Widescreen Device
1. Description 1.2 Device models Up to two Widescreen device terminals of the XP-504 series can be connected to each XP-504 PC. 1.2.2 Configuration of the XP-504-Widescreen device In addition, every Widescreen device is a Color display, TFT and can be used with gestures (Multi-touch touch panel).
Page 19: Interfaces
1. Description 1.2 Device models 1.2.3.3 Interfaces The number and type of interfaces on the devices in the XP-504 series varies. Panel-PC/ Terminal with Terminal Extender TX Box-PC Extender RX 2 x Ethernet, 1 x USB Type-B (used by the...
Page 20: Nameplate
Type approval and certification marks and information Layout of interfaces To get fast and effective support, make sure to always provide Customer Service with the following information from the nameplate: Article No. (part No. or article No.) Serial No. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 21: What The Different Parts Of The Part Number Mean
Display size (screen XP-504 - Type diagonal) 10.1" (25.65 TERMINAL Terminal 15.6" (39.6 cm) TERM-EXT TERM-EXT for USA TERMINAL-EXT otherwise TERMINAL-EXT Terminal with Extender RX 21.5" (54.6 cm) Extender TX transmitter module XP-504 - Type EXT-MODUL Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 22: Accessory Devices
1. Description 1.5 Accessory devices 1.5 Accessory devices A variety of accessories are available for XP-504 devices. CAUTION Only use original accessories. Order accessories through your supplier or through the Eaton online catalog Eaton.com/ecat 1.6 Support To get fast and effective support, make sure to provide Customer Service with the fol- lowing information from the nameplate: Part-No.
Page 23: Conditions For Underwriters Laboratories Inc. (Ul) Listing
Technical conditions for acceptance by Underwriters Laboratories Inc. (UL). Panel-PC: → page 45 Terminal: → page 46 Terminal with Extender RX: → page 47 Box-PC:→ page 48 Extender TX: → page 48 Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 24: Conditions For Underwriters Laboratories Inc. (Ul) Listing In Hazardous Locations - Ul-Ex
1.8 Conditions for Underwriters Laboratories Inc. (UL) listing in hazardous locations - UL-EX 1.8 Conditions for Underwriters Laboratories Inc. (UL) listing in hazardous locations - UL-EX Approval has been granted for the XP-504-..-TERMINAL and XP-504-..-TERMINAL- EXT devices. EXPLOSION HAZARD Only these devices: XP-504-..-A10-A01-2.
Page 25: Use In Hazardous Locations - Atex
The II 3D Ex tc IIIC T70°C Dc U and II 3G Ex ec IIC T105°C Gc U ATEX certification is only valid for the Widescreen device: Panel-PCs, Terminals, and Terminal with Extender RX, which are professionally pla- ced in an enclosure: IP54 for Zone 2 ("gas"), IP6x for Zone 22 ("dust"). Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 26 For booths Zone 2 and Zone 22 valid: The environment has to be designed to avoid any bunch discharge. For safe installation, comply with the specification to holding brackets and tightening torque in the respective Instruction leaflet for the device. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 27: Marine Approvals
1. Description 1.10 Marine approvals 1.10 Marine approvals An application for approval for the XP-504 has been submitted to Det Norske Veritas. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 28: Safety Regulations
Do not run any XP-504 device unless it is in perfect technical condition. Make sure to always operate it as specified in this document and as intended.
Page 29: Information On How To Use The Device
504 and must always be readily available in the device's close proximity so that users have access to it. Make sure that every person who will be working with the XP-504, regardless of the lifecycle stage involved, has read and understood the relevant parts of the infor- mation for use for the XP-504.
Page 30: Prerequisites For Proper Operation
2.2 Mandatory requirements, personnel requirements 2.2.5 Prerequisites for proper operation In order for XP-504 devices to be able to meet the contractually stipulated terms, the following must be observed: Only qualified personnel should be allowed to work with the XP-504.
Page 31: Device-Specific Hazards
C, D, Class II, Division 2 Groups F and G, Class III or non-hazardous locations only. Use XP-504 devices in non-hazardous-location environments For safe installation, as well as to meet approval requirements, make sure to adhere to the specifications for holding brackets and tightening torques in the respective instruction leaflet for the device.
Page 32 For booths Zone 2 and Zone 22 valid: The environment has to be designed to avoid any bunch discharge. For safe installation, comply with the specification to holding brackets and tightening torque in the respective Instruction leaflet for the device. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 33 Do not replace batteries in hazardous locations Dispose of the XP-504 unit professionally. CAUTION DESTRUCTION The XP-504 should only be opened by the manufacturer or by an aut- horized center. Operate the device until only with the enclosure fully closed and sealed. CAUTION ELECTROSTATIC DISCHARGE Do not touch components (e.g., connector pins) that are elec-...
Page 34 Wire cross-sectional area ≧ 6 mm², length ≦ 350 mm, width ≥ 20 mm The XP-504 needs to be connected to the conductive structure in, e.g., the control panel using the central earth point. This method of earthing is mandatory required for proper function.
Page 35 UV LIGHT Plastics will become brittle when exposed to UV light. This artificial aging will reduce the XP-504 unit's lifespan. Protect the XP-504 series devices from direct sunlight and other sources of UV radiation. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 36 Do not use any pointy or sharp objects (e.g., knives). Do not use aggressive or abrasive cleaning products or solvents. Make sure that no liquids get into the XP-504 unit (short-circuit hazard) and that the XP-504 unit is not damaged in any way. CAUTION INSTALLATION CUT-OUTHUMAN-MACHINE INTERFACE...
Page 37 Protect the RJ45 plug-in connection from tensile forces at the socket. WARNING XP-504 units are products designed for use in industrial envi- ronments as defined in ICE/EN 61000−6-4. These products can cause radio interference in domestic environments. In this case, the party operating the products must implement appropriate radio inter- ference suppression measures.
Page 38: Installation
UV LIGHT Plastics will become brittle when exposed to UV light. This artificial aging will reduce the XP-504 unit's lifespan. Protect the XP-504 series devices from direct sunlight and other sources of UV radiation. Make sure that the XP-504 devices do not overheat.
Page 39: Temperatures
Ambient air Free of corrosive gases 3.1.1 Aeration and de-aeration Do not cover the ventilation openings, cooling fins and housing of the XP-504 PCs during installation: They are designed to allow air to circulate in order to cool the device.
Page 40 The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data as necessary for design verification in conformity with IEC EN 61439 – please refer to the data sheet for the XP-504 in the online catalog at Eaton.com/ecat...
Page 41: Installation Position
≦ 0.5 mm (0.02") at the installation cutout with a surface rough- ness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) 3.2.1.2 Mounting position The Panel-PC, Terminal, and Terminal with Extender RX devices in the XP-504 series are designed for installation in landscape or portrait orientation. √ √...
Page 42 Panel-PC, Terminal and Terminal with Extender RX. Make sure to consider the space required to remove the SD card and replace the battery, as well as the space needed for the inter- face connections. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...

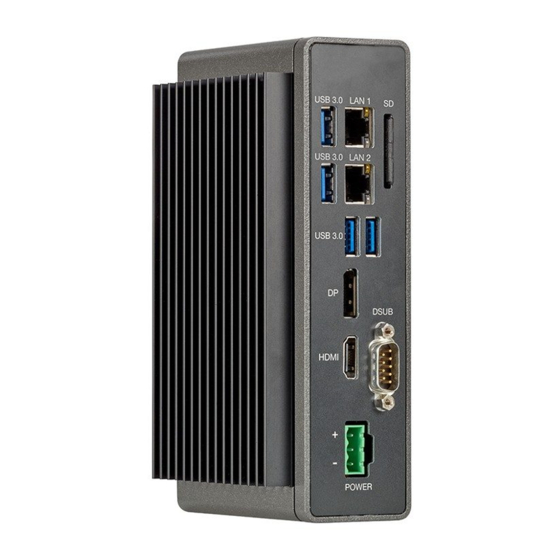

Page 43: Box-Pc
3.2 Installation position 3.2.2 Box-PC 3.2.2.1 Mounting position The XP-504-BP-... or XP-504-BOXPC-... is designed to be vertically flush-mounted in control cabinets. A mounting bracket is used for installation on the DIN-rail in the control cabinet. Alternatively, the device can be installed in a horizontal or vertical position on a mounting wall with the help of the two mounting plates.
Page 44 The connectors must remain accessible even after the device has been installed. The interfaces are located on the front of the Extender TX. Make sure to maintain the required space for the interface connec- tions. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 45: Technical Conditions For Acceptance By Underwriters Laboratories Inc. (Ul)
The devices shall be installed inside or as part of a tool secured enclosure. USB and HDMI Connectors are for maintenance only, except when installed together with strain relief metal plate with the cable ties provided. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 46: Terminal
0.5 - 0.6 Nm (4.4 -5.3 lb-in). The devices shall be installed inside or as part of a tool secured enclosure. USB shall be installed together with strain relief metal plate with the cable tie pro- vided. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 47: Terminal With Extender Rx
Use in type 4X or type 12 enclosures, use indoors only, at dry locations only IPxx not evaluated by UL Ambient temperature 0°C to 45°C Maximum relative humidity of 95% for temperatures of up to 45 °C, derated linearly to a relative humidity of 50% at 40 °C. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 48: Box-Pc
Suitable power supply for class III (SELV in conformity with UL 61010-2-201) Permissible operating voltage range from 4.6 V to 31.2 V Use indoors only, at dry locations only IP20 not evaluated by UL Ambient temperature -20°C to +50°C Relative humidity from 10% to 80% Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 49: Unpacking And Checking The Equipment Supplied
Missing parts or damage If you notice anything wrong, please contact your distributor or Eaton Service +1 877-386-2273 (en) / 877-ETN-CARE (877-386-2273) The packages for this device series come with: Tab. 2: Std. packPanel-PC XP-504-...
Page 50 Internal hexagon M 4 x 25 DIN 914 galvanized XP-504-10-... 10 x XP-504-15-... 12 x XP-504-21-... USB-A to USB-B cable DisplayPort cable Cable binder Strain relief metal plate Tab. 5: Std. packTerminal with Extender RX Description Unit XP-504-..-TERM-EXT or XP-504-..-TERMINAL-EXT Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 51 Installation instructions IL048019ZU Plug connector MSTBT 2.5/4-ST-5.08 The XP-504 series is sturdily built, but the components inside it are sensitive to exces- sively strong vibrations and/or mechanical shock. Accordingly, make sure to protect the XP-504 from mechanical loads that exceed the scope of the unit's intended use.
Page 52: Mounting
List of tools: Wrench for 2 mm Allen key (5/64") PZ2 Pozidriv screwdriver Open-ended wrench SW10 Ground strap: length ≤ 35 cm, width ≥ 20 cm with eyelet Torque wrench with Newton meter scale Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 53: Preparations
The purpose of the holding brackets is to secure the Panel-PC, Terminal and Terminal with Extender RX in the installation cutout, e.g., on the control panel door. To this end, the brackets must be hooked into the enclosure and screwed against the control panel door, etc. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 54 On the left and right sides of the device: One holding bracket each at the center fixing position Fig. 15: Location of holding brackets for IP65 on the XP-504-10-... 15" devices Locations for ten holding brackets for an IP65 degree of protection...
Page 55 On the left and right sides of the device: One holding bracket each at the upper and lower fixing positions Fig. 17: Location of holding brackets for IP65 on the XP-504-21-... IP rating If the gasket is resting in the correct position and the holding brackets are installed...
Page 56: Installing The Panel-Pc And Terminals
3.5 Mounting 3.5.1.2 Installing the Panel-PC and Terminals 1. Insert the XP-504 into the mounting cutout from the front. Fig. 18: Mounting in the installation cutout 2. As long as the device has not been secured with all holding brackets, make sure to secure it so that it will not fall down.
Page 57: Box-Pc
Push down on the mounting bracket spring so that the device will snap into place. To do this, push the bottom of the Box-PC onto the DIN-rail at the same time. Check to make sure that the device is securely mounted on the DIN-rail. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 58: Mounting Wall
For mounting on the mounting wall, you will need to use M4 screw assemblies through the mounting plates. Make sure to use both mounting points. Tighten each M4 screw assembly with a torque of 2.2 Nm (19.4716 lb-in). Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 59: Extender Tx
To do this, push down on the mounting clamp spring and push the bottom of the XP-504-EXT module onto the DIN-rail. Check to make sure that the device is securely mounted on the DIN-rail. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 60: Preparing The Device For Operation
Wire cross-sectional area ≧ 6 mm², length ≦ 350 mm, width ≥ 20 mm The XP-504 needs to be connected to the conductive structure in, e.g., the control panel using the central earth point. This method of earthing is mandatory required for proper function.
Page 61: E Lectrical Connection
XP-504 devices feature an internal fuse and protection against polarity reversal for the galvanically isolated power supply. The PCs in the XP-504 series and terminals with Extender RX, as well as the XP-504- EXT module, require a 24 V rated operating voltage from a power supply with safe isolation (SELV).
Page 62 3. Installation 3.6 Preparing the device for operation Power consumption Extender TX module: max. 0.13 A, Box-PC: 1.3 A at 24V Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 63 XP-504-10-... max. 38.4 W XP-504-15-..., max. 43.2 W XP-504-21-... max. 48.0 W XP-504-BP-... or XP-504-BOXPC-... max. 31.2 W Widescreen devices of the device series XP-504 10" terminal max. 7.2 W 15" terminal max. 9.6 W 21" terminal max. 16.8 W 10"...
Page 64: Functional Earthing Widescreen Device
Wire cross-sectional area ≧ 6 mm², length ≦ 350 mm, width ≥ 20 mm The XP-504 needs to be connected to the conductive structure in, e.g., the control panel using the central earth point. This method of earthing is mandatory required for proper function.
Page 65 +24 V DC Panel-PC +24 V DC Terminal +24 V DC Terminal with Extender RX Fig. 22: Screwing the functional earth conductor/ground strap onto the enclosure, with a Panel-PC used here as an example Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 66: Functional Earthing Box-Pc And Extender Tx
3.6 Preparing the device for operation 3.6.1.2 Functional earthing Box-PC and Extender TX For Box-PCs and XP-504-EXT modules, a functional earth via the connection on the plug connector is enough. Make sure to observe the power supply specification. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 67: Power Supply Via Plug Connector
/ max. 2.5 mm (drain wire or conductor) min. AWG19 / max. AWG14 Tightening torque 0.5 - 0.6 Nm (4.4 -5.3 lb-in) for the screws on the respective plug connector Strip length 7 mm Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 68: Power Supply Panel-Pc, Terminal And Terminal With Extender Rx
Fig. 23: Connecting the screw terminals with MSTBT 2.5/3-ST-5.08 Tab. 9: ConfigurationMSTBT 2.5/3-ST-5.08 Signal Connection Configuration Power Supply 24 VDC + 24 VDC SELV (safety extra low voltage) +24 V DC n.c. n.c. not used 0 V power supply Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 69: Power Supply Box-Pc
Fig. 24: Connecting the screw terminals with MSTBT 2.5/3-ST-5.08 Tab. 10: ConfigurationMSTBT 2.5/3-ST-5.08 Signal Connection Configuration Power Supply 24 VDC + 24 VDC SELV (safety extra low voltage) +24 V DC Functional Functional earth earth 0 V power supply Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 70: Power Supply Extender Tx
Fig. 25: Connecting the screw terminals with MSTBT 2.5/4-ST-5.08 Tab. 11: ConfigurationMSTBT 2.5/4-ST-5.08 Signal Connection Configuration Functional earth n.c. Internally connected n.c. +24 V DC Power Supply 24 VDC + 24 VDC SELV (safety extra low voltage) 0 V power supply Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 71: Using Peripheral Devices - External Connections
4. Using peripheral devices - External connections 4. Using peripheral devices - External connections With its ports, Eaton's XP-504 series makes it possible to connect a variety of peri- pheral devices and components. The features on the individual devices in the XP-504 series are based on the devices' needs.
Page 72: Layout Of Interfaces
Can be configured in BIOS; default setting: RS-232 full duplex ⑪ Strain relief Metal plate for fixing the USB and HDMI ports ⑫ power supply 24 VDC MSTBT 2.5/3-ST-5.08 ⑬ Battery BR2032 (190mAh, 3V) from Panasonic Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 73: Box-Pc
Default display interface ⑨ HDMI Default display interface 1.4b ⑩ RS232/422/485 9-pin D-sub plug, not galvanically isolated Can be configured in BIOS; default setting: RS-232 full duplex ⑪ 24 VDC power supply MSTBT 2.5/3-ST-5.08 Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 74: Terminal
RJ-45 socket, 8-pole, 2 LEDs (CAT5e/6) EXT IN The RJ45 sockets on Terminal with Extender RX and Extender TX are used by the transmitter/receiver cable. Do not connect the RJ45 (Extender RX) EXT IN port to an Ethernet network. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 75: Extender Tx
24 VDC power supply MSTBT 2.5/4-ST-5.08 The RJ45 sockets on Terminal with Extender RX and Extender TX are used by the transmitter/receiver cable. Do not connect the RJ45 (Extender TX) port to an Ethernet network. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 76: Sd Card
If the SD card is being written to and a voltage drop occurs or the card is removed, data may be lost or the SD card may be ruined. Insert the SD card only when the XP-504 is de-energized. Avoid writing to SD cards. Reasons: SD cards have a limited number of write cycles.
Page 77 4. Using peripheral devices - External connections 4.2 SD card Fig. 31: Removing the SD card Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 78: Usb Interfaces
Only use standard USB cables with a shield. Max. cable length: 5 m. Dual-USB 3.0/2.0 Type A USB 3.0/2.0 Type A Fig. 32: USB ports on the PCs in the series Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 79: Usb-B
USB 3.0 SSTX+ Super Speed Transmitter SSTX+ Super Speed Transmitter (UP) data cable USB 3.0 (DOWN data cable USB 3.0 4.3.2 USB-B Available on: Terminal Fig. 35: USB-B 2.0, not galvanically isolated, plug type B Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 80: Mini Usb-B
4.3.3 Mini USB-B Available on: Extender TX module Fig. 36: Type-B mini-USB port pinout specification Wire Function Power + 5V Data - White Data - Data + Green Data + n.c. – Host device Black ground Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 81: Ethernet
8 7 6 5 4 3 2 1 Fig. 37: LAN connections, e.g. on the Panel-PC The XP-504 is only allowed to be connected to internal Ethernet net- works without this closed network being left or being subordinate to TNVs.
Page 82: Display Interfaces
LANE 0+ Return LANE 2+ DP Power LANE 1- Available on: Extender TX n.c. AUX CH+ LANE 1+ n.c. LANE 0- AUX CH- n.c. Hot Plug Detect LANE 0+ Return n.c. n.c. LANE 1- Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 83: High Definition Multimedia Interface (Hdmi)
T.D.M.S. Data 2+ 8 DDC Clock T.D.M.S. Data 0- 16 DDC DATA T.D.M.S. Data 2- 10 T.D.M.S. Clock+ T.D.M.S. Data 1+ 11 T.D.M.S. Clock- Hot Plug Detect T.D.M.S. Data 1- 13 n.c. T.D.M.S. Data 0+ 14 n.c. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 84: Serial Interfaces Rs232/Rs422/Rs485
RS422 RX+ n.c. RS422 RX- n.c. Tab. 14: Pin assignment (RS485 mode) signal signal RS485 Data+ 6 n.c. The BIOS will need to be RS485 Data- n.c. set to RS485 mode. n.c. n.c. n.c. n.c. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 85: Dvi-I
T.D.M.S. Clock - DDC Clock (Return for +5V, H-Sync, and V-Sync) n.c. DDC Data Hot Plug-Detect n.c. n.c. T.D.M.S. Data 0- n.c. T.D.M.S. Data 1- T.D.M.S. Data 0+ n.c. T.D.M.S. Data 1+ T.D.M.S. Data 0/5 Shield Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 86 4. Using peripheral devices - External connections 4.7 DVI-I Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 87: Commissioning
5. Commissioning 5. Commissioning When the device series XP-504 is used as intended, it will often be installed in a machine or system to function as controls and will be wired accordingly. In this case, the devices will need to be switched on and off using the corresponding machine controller.
Page 88: Initial Commissioning
An external display unit (various display types) can be connected to the display ports (DP or HDMI). Ethernet The XP-504 can be connected to various computer networks using the two RJ-45 ports that serve network as Ethernet ports. Ethernet is a standard used for local networks, and requires twisted-pair cables in order to con- nect the computers.
Page 89: Running The
5.2 Running the XP-504 5.2 Running the XP-504 Once the XP-504 has been initially commissioned, it will run whenever it is connected to the power supply. In other words, it does not have to be separately switched on and off.
Page 90 5. Commissioning 5.2 Running the XP-504 Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 91: Operation Touch Display
Concerns: Panel-PC, Terminal and Terminal with Extender RX 6.1 Safety Instructions Using the Widescreen devices of the XP-504 series entails additional risks asso- ciated with using the multi-touch function Observe the following instructions in order to keep you and others safe and avoid property damage.
Page 92 Scratches and other damage on the device's glass panel may trigger unexpected operator actions. When functions are triggered incor- rectly in the system, bodily injury and property damage may occur. Make sure that the glass panel is not damaged during installation or use. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 93: Handling
The Widescreen device of the XP-504 series feature a Touch display with multi-touch capabilities. It is controlled by means of touching, inching, and gestures, all of which require the operator to touch the Touch display with their fingertips.
Page 94: Touch Setup
6.3 Touch setup 6.3 Touch setup If you connect an additional Widescreen device to an XP-504 PC, the Windows oper- ating system may not automatically recognize both devices as input devices. In this case, touch input will only be allowed on one of the devices, making it necessary to manually change the configuration and set up both devices as touchscreens.
Page 95: Operating System
ONLY BE TRIGGERED BY USING MULTIPLE FINGERS AT THE SAME TIME Important operating functions must be programmed in such a way that they can only be triggered by gestures requiring multiple fingers on the touch panel at the same time. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 96 If there is static contact on the touch panel during booting, this may result in functional restrictions. To prevent this, take the measures below: Do not touch the touch panel during booting! If you do touch it, make sure to move your finger(s) slightly! Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 97: Windows 10 Enterprise Ltsc
The Microsoft® Windows 10 Enterprise LTSC operating system comes pre-installed on XP-504 devices with part No. XP-504-..-…-…-2B or XP-504-..-…-…-2V. If your XP-504 is not a standard device or XP-504 is operated with a different oper- ating system these operating system specific descriptions may or may not apply to your device.
Page 98: Protect-Mode Data Organization
Protect Mode. To do this, go to "Start → Eaton → Protect Mode Manager" in Windows, select the "Advanced" tab, and click on the "Enable Protect Mode" button. The system will then restart and return the XP-504 device to its normal protected state.
Page 99: Managing Users And Configuring The
Windows shutdown mechanism to prevent potential corruption of the operating system. It is recommended that the XP-504 unit be removed from any plant network while Pro- tect Mode is disabled and that all media used for software installation to be con- nected to the unit are scanned for malware prior to attachment.
Page 100: Modifying An Account Name Or Password
Panel "Start → Windows System → Control Panel → User Accounts → User Accounts“. If you have made changes and you have configured the XP-504 for starting auto- matically without a login, please update the corresponding settings in the Windows Registry.
Page 101: Enabling / Disabling Iis Communication For Visual Designer
Visual Designer functions (e.g., remote project setup and WEB visualization). There are two applications for enabling and disabling this service (and the cor- responding TCP/UDP ports) that can be accessed by clicking on "Start → Eaton" in Windows: Activate IIS.cmd Deactivate IIS.cmd...
Page 102 7. Operating System 7.2 Windows 10 Enterprise LTSC Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 103: Faults
8. Faults 8. Faults This section provides troubleshooting information for your XP-504 in case it does not behave as expected. Fault Cause Remedy Panel-PC or Box-PC will not Check the power cord and No 24 VDC power supply boot up...
Page 104 8. Faults Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 105: Maintenance
Clean the frame and the display only with a clean soft antistatic damp cloth. 9.1.2 Replacing the Battery Panel-PC and Box-PC Only the PCs of the device series XP-504 contain a battery. This battery can be replaced. Replacing the battery is only required if, for example, the device is not powered for a period of more than six years.
Page 106 Remove the battery from the battery holder (red arrow) and insert the new bat- tery BR2032 (190mAh, 3V) from Panasonic into the holder with the + terminal in front. Slide the battery holder back into its slot. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 107 ESD protection measures. CAUTION Installation requires qualified electrician CAUTION Arrange for a qualified electrician or for EATON Service to replace the battery. In order to prevent damage to the device, do the following before opening the enclos- ure: Shut down the operating system.
Page 108 Set the SD card holder with the bracket to the side so that you can get to the bat- tery. Disconnect the plug from the motherboard and carefully remove the battery from the inside of the enclosure. Put in the new battery in the same place on the motherboard. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 109 Close Box-PC Put the enclosure cover back in place. Screw the six screws (Torx A2 M3x8 ISO 14581) back in. 0.9 Nm (7.97 lb-in) Tighten the six Torx screws with a torque of 0.9 Nm. Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 110: Repairs
For repairs, please contact your vendor or Eaton's Technical Support. CAUTION DESTRUCTION The XP-504 should only be opened by the manufacturer or by an authorized center. Operate the device until only with the enclosure fully closed and sealed. Use the original packaging to ship the device.
Page 111: Storage, Transport And Disposal
Do not expose the device to direct thermal radiation from heating appliances. The ambient conditions must be met when transporting and storing the XP-504. The ambient air temperature for storage and transportation must not exceed the max- imum specified limit of: -20 –...
Page 112 Use the original packaging to ship the device. The XP-504 series is sturdily built, but the components inside it are sensitive to excessively strong vibrations and/or mechanical shock. Accordingly, make sure to protect the XP-504 from mechanical loads that exceed the scope of the unit's intended use.
Page 113: Disposal
The lithium battery installed in Panel-PC or Box-PC may explode if handled incorrectly. Do not replace batteries in hazardous locations Dispose of the XP-504 unit professionally. Dispose of recyclables as required by your local recycling reg- ulations. Panel-PC devices no longer being used must be professionally disposed or returned to the manufacturer or relevant sales department.
Page 114: Appendix
Appendix Appendix A.1 Technical data A.1.1 Data sheet A.1.2 Dimension and weight specifications A.1.3 General data A.1.4 Information on the power supply A.1.5 Approvals and declarations A.2 Further usage information Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 115: Technical Data
Appendix A.1 Technical data A.1 Technical data A.1.1 Data sheet The current specifications can be found in the data sheet for the device in the Eaton online catalog. Eaton.com/ecat Catalog No. Type Panel-PC 199996 XP-504-10-A10-A01-2B 199997 XP-504-10-A10-A01-2V 199998 XP-504-15-A10-A01-2B 199999...
Page 116: Dimension And Weight Specifications
≦ 0.5 mm (0.02") with a surface roughness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) Hole diameter built-in: e = 256 mm (10.07") ±0.5 (0.02"), f = 175 mm (6.88") ±0.5 (0.02") Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 117: Xp-504-15
≦ 0.5 mm (0.02") with a surface roughness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) Hole diameter built-in: e = 388 mm (15.28") ±0.5 (0.02"), f = 239 mm (9.40") ±0.5 (0.02") Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 118: Xp-504-21
≦ 0.5 mm (0.02") with a surface roughness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) Hole diameter built-in: e = 519 mm (20.43") ±0.5 (0.02"), f = 313 mm (12.32") ±0.5 (0.02") Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 119 55 mm (2.17") 7 mm (0.28") Fig. 48: Dimensions Box-PC devices in mm (Inch) Width x Height x Depth 55 mm x 170 mm x 92.3 mm +/- 0.2 mm (without plug) Weight 1.15 kg Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 120 ≦ 0.5 mm (0.02") with a surface roughness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) Hole diameter built-in: e = 256 mm (10.07") ±0.5 (0.02"), f = 175 mm (6.88") ±0.5 (0.02") Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 121 ≦ 0.5 mm (0.02") with a surface roughness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) Hole diameter built-in: e = 388 mm (15.28") ±0.5 (0.02"), f = 239 mm (9.40") ±0.5 (0.02") Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 122 ≦ 0.5 mm (0.02") with a surface roughness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) Hole diameter built-in: e = 519 mm (20.43") ±0.5 (0.02"), f = 313 mm (12.32") ±0.5 (0.02") Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 123: Xp-504-10
≦ 0.5 mm (0.02") with a surface roughness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) Hole diameter built-in: e = 256 mm (10.07") ±0.5 (0.02"), f = 175 mm (6.88") ±0.5 (0.02") Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 124: Xp-504-15
≦ 0.5 mm (0.02") with a surface roughness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) Hole diameter built-in: e = 388 mm (15.28") ±0.5 (0.02"), f = 239 mm (9.40") ±0.5 (0.02") Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 125: Xp-504-21
≦ 0.5 mm (0.02") with a surface roughness Rz ≦ 120; IP 65 ￫ DIN ISO 2768-2 (K) Hole diameter built-in: e = 519 mm (20.43") ±0.5 (0.02"), f = 313 mm (12.32") ±0.5 (0.02") Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 126: Xp-504-Ext Module
A.1.2.11 XP-504-EXT module 22.6 mm 114 mm (4.49") (0.89") 43.5 mm (1.71") Fig. 55: Dimensions XP-504-EXT module in mm (Inch) Width x Height x Depth 22.6 mm x 99.35 mm x 113.65 mm +/- 0.2 mm (without plug) Weight 0.17 kg...
Page 127: General Data
Appendix A.1 Technical data A.1.3 General data The following specifications apply to all XP-504 units or to the specified part nos. where applicable. Ambient climatic conditions Air pressure (in operation) 795 - 1080 hPa Max. 2000 m above sea level...
Page 128 Windows 10 Enterprise LTSC Cooling Fanless CPU and system cooling, natural convection- based passive cooling Battery BR2032 (190mAh, 3V) from Panasonic lifespan, backup time Maintenance-Free, normally 5 years at 25° C (77°F) (at zero voltage) Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 129 Normally 350 cd/m2 Backlight dimmable via software Lifespan of backlight Normally 50000 h at 25 °C Format XP-504-10-... 16:10 XP-504-15-... 16:9 XP-504-21-... 16:9 Viewing range [left/right/above/below] normally 85°/85°/85°/85° XP-504-10-... normally 85°/85°/80°/80° XP-504-15-... XP-504-21-... normally 89°/89°/89°/89° Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 130: Information On The Power Supply
XP-504-10-... max. 38.4 W XP-504-15-..., max. 43.2 W XP-504-21-... max. 48.0 W XP-504-BP-... or XP-504-BOXPC-... max. 31.2 W Widescreen devices of the device series XP-504 10" terminal max. 7.2 W 15" terminal max. 9.6 W 21" terminal max. 16.8 W 10"...
Page 131: Approvals And Declarations
Appendix A.1 Technical data A.1.5 Approvals and declarations Approvals anddeclarations The XP-504 devices comply with all applicable European Union (EU) Directives and fea- ture the CE marking. UKCA XP-504 devices are conform to the applicable regulations in the United Kingdom cULus (UL 61010-2-201) certification, UL File No.
Page 132 Displacement amplitude: 5–9 Hz: 3.5 mm; 9–60 Hz: 0.15 mm Acceleration amplitude: 60–150 Hz: 2 g Free fall, packaged IEC/EN 60068-2-32 Climatic proofing Cold to IEC 60068-2-1 Damp heat as per EN 60068-2-3 Dry heat to IEC60068-2-2 Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 133: Further Usage Information
IL048016ZU XP-504 Panel-PC Instruction Leaflet IL048017ZU XP-504 Box-PC Instruction Leaflet IL048018ZU Widescreen devices of the device series XP-504 Instruction Leaflet IL048019ZU Extender TX Networks in Brief MN05010009Z Information on networks in general and on how to integrate PCs and touch displays in networks Download Center, Eaton Online Catalog Enter "XP500"...
Page 134 Appendix A.2 Further usage information Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 135: Alphabetical Index
Company information Features Connections Functional earthing External Specifications Cooling Further reading Copy-protected Copyright Current 61, 130 General data Damage Hazards Declarations Device-specific Description HDMI 72-73 Device variants Dimensions Directives Initial commissioning Display Installation Installation cutout Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 136 75, 80 Safety Missing parts Screen area Mounting 52, 57, 59 Visible Mounting distance Screen diagonal Mounting position SD card SD card 42-43 SD card slot 72-73 Service Standards Std. pack 49-51 Nameplate Storage Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 137 Support Technical data Touch-Sensor Transit damage Transport Troubleshooting UL-EX listing UL listing 23, 45 USB-B USB-Device USB-Host 72-73 USB host Versions Voltage range 61, 130 Weight Industrial PC XP-504 11/2022 MN048028EN Eaton.com...
Page 138 Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future.
