Oregon Scientific BA169 - Weather Hub Manual

PRODUCT OVERVIEW

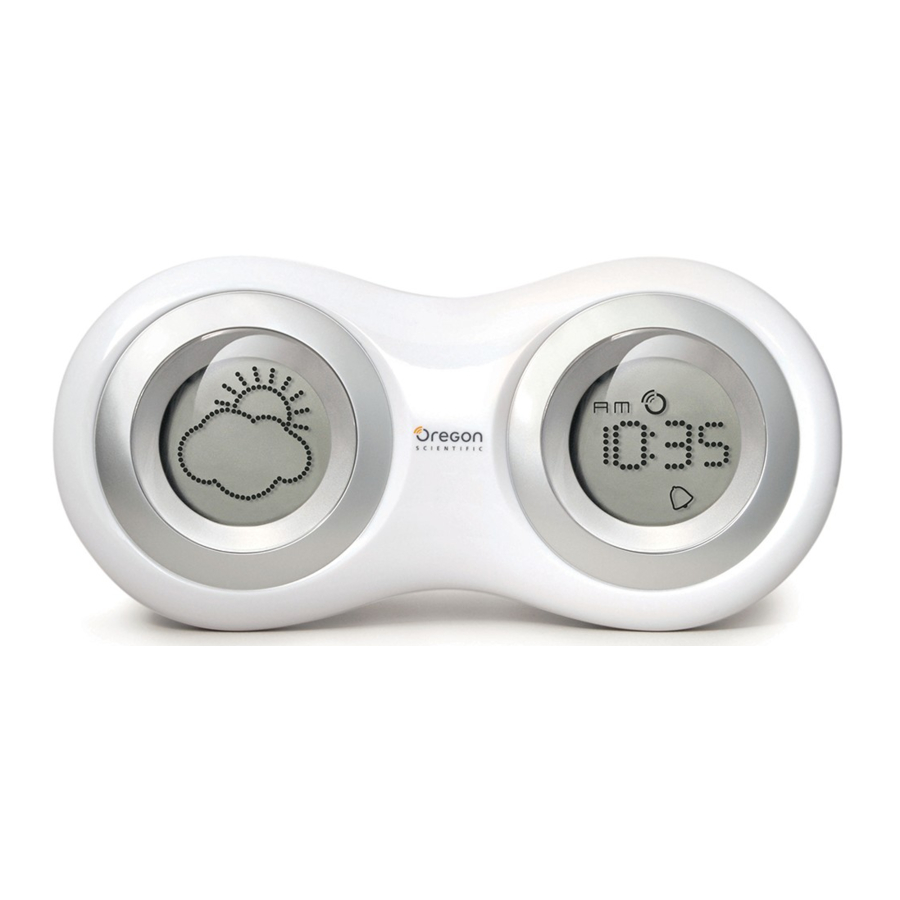

FRONT VIEW – FIG. 1

1. Weather forecast
2. Time and temperature display

BACK VIEW – FIG. 2

1. Wall mount hole
2. : Enter alarm mode
3. + / - : Change settings
4. : Enter clock setting mode; toggle display
5. Stand
6. Magnet
7. Battery compartment
8. RESET: Reset unit to default settings
9. °C / °F: Select temperature unit

GETTING STARTED

BATTERIES

Insert the batteries as shown, taking care to match the polarities (+ / -).

indicates the batteries are low.

STAND

Unclip the stand to place on a horizontal surface.

WALL MOUNT

Use the magnets to fix to a metallic object or wall mount on a screw or nail.

DISPLAY

The time and temperature display will automatically toggle between the clock and the temperature.
Press to change the display immediately.

CLOCK

SET CLOCK

1. Press and hold for 2 seconds.
2. Press + / - to change the settings.
3. Press to confirm.
4. The settings order is: 12 / 24 hr format, hour, minute.

NOTE:
Time zone offset sets the clock + / - 23 hours from the set clock time.

ALARM

To set the alarm:

1. Press to enter alarm mode. AL will appear.
2. Press and hold to enter alarm setting mode.
3. Press + / - to set hour / minute.
4. Press to confirm. appears when the alarm is ON.

To toggle alarms ON / OFF:

1. Press to display alarm time.
2. Press again to turn alarm ON / OFF.

To silence the alarm:
Press any other key to turn the alarm off and activate it again after 24 hours.

WEATHER FORECAST

This product uses an internal barometric sensor to forecast a projection of the next 12 to 24 hours of weather within a 30-50 km (19-31 mile) radius.

Sunny	Partially Cloudy	Cloudy	Rainy

TEMPERATURE

Press °C / °F to select the temperature unit.

RESET

Press RESET to return the unit to default settings.

PRECAUTIONS

• Do not subject the unit to excessive force, shock, dust, temperature or humidity.
• Do not cover the ventilation holes with any items such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive materials.
• Do not tamper with the unit 's internal components. This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old batteries.
• Images shown in this manual may differ from the actual display.
• When disposing of this product, ensure it is collected separately for special treatment.
• Placement of this product on certain types of wood may result in damage to its finish for which Oregon Scientific will not be responsible. Consult the furniture manufacturer's care instructions for information.
• The contents of this manual may not be reproduced without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
• Please note that some units are equipped with a battery safety strip. Remove the strip from the battery compartment before first use.

NOTE:
The technical specifications for this product and the contents of the user manual are subject to change without notice.

SPECIFICATIONS
