Pyle PLTV7R Owner's Manual

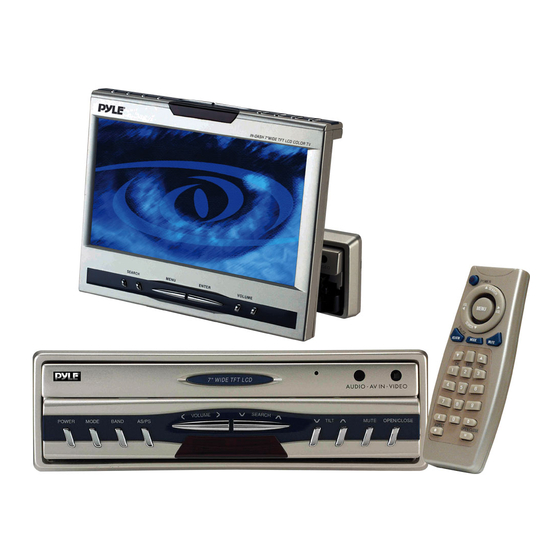

Motorized 7”in -dash color lcd monitor with am/fm stereo radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLTV7R and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PLTV7R

Summary of Contents for Pyle PLTV7R

  • Page 2 MOTORIZED 7 ” ” IN -DASH COLOR LCD MONITOR WITH AM/FM STEREO RADIO PLTV7R MODEL: OWNER ’ ’ S S MANUAL...
  • Page 3 Any changes or modifications in construction of this device which is not expressly approved by the party responsible for compliance could void the user’ ’ s authority to operate the equipment.
  • Page 4 WARNING The exclamation point within an equilateral triangle and “ “ WARNING” ” are intended to alert the user to the presence of important operating instructions. Failure to heed the instruction will result in severe injury or death. DO NOT WATCH VIDEO WHILE DRIVING Watching the video may distract the driver from looking ahead of the vehicle and cause an accident.
  • Page 5 CAUTION The exclamation point within an equilateral triangle and “ “ CAUTION” ” are intended to alert the user to the presence of important operating instructions. Failure to heed the instructions can result in injury or material damage. DO NOT RAISE THE VOLUME EXCESSIVELY Keep the volume at a level, where you can still hear outside noises while driving .

  • Page 6: Fuse Replacement

    CAUTION The exclamation point within an equilateral triangle and “ “ CAUTION” ” are intended to alert the user to the presence of important operating instructions. Failure to heed the instructions can result in injury or material damage. Operation of some of the functions of this unit is very complex. Because of this, it was deemed necessary to place these functions into a special SETUP screen.
  • Page 7 MONITOR ⑩ ① ② ⑨ ⑤ ⑥ ③ ① ① POWER ON/OFF BUTTON ② ② MODE SELECTION BUTTON ③ ③ AS/ATM BUTTON ④ ④ SOUND MUTE BUTTON ⑤ ⑤ VOLUME UP/DOWN BUTTON ⑥ ⑥ SEARCH UP/DOWN BUTTON ⑦ ⑦ OPEN/CLOSE BUTTON ⑧...

  • Page 8: Remote Controller

    REMOTE CONTROLLER ① POWER POWER ⑫ MENU MENU ③ AS/ATM AS/ATM MODE MODE ② ⑨ NAVI NAVI ⑪ ① ① POWER ON/OFF BUTTON ⑥ ② ② MODE SELECTION BUTTON ③ ③ AS/ATM BUTTON ⑤ ④ ④ SOUND MUTE BUTTON ④ ⑤...

  • Page 9: Remote Control Unit

    REMOTE CONTROL UNIT Replacing battery Applicable battery : Use two “AAA” sized dry batteries. 1. Opening the battery cover. Push and slide the cover in the arrow direction, and the cover will be removed. 2.Replacing the battery. Remove the old batteries. Insert new ones matching the (+) and (-) polarities as shown in the diagram inside the unit.

  • Page 10: Basic Operation

    POWER ON / OFF 1.POWER ON 1) Press the POWER button to turn the power on. But the monitor will not open. 2) You can also turn the power on by pressing the OPEN/CLOSE button. The power will be on and the monitor will open. 2.

  • Page 11: Closing The Monitor

    CLOSING THE MONITOR 1. Hold left and right upper side of the monitor and set the left and right angle of the monitor parallel with the front of the unit as the picture. 2. Press OPEN/CLOSE button. The monitor will close. NOTE 1.If the left and right angle of the monitor is not parallel to the the front of the unit, the monitor can not be closed.

  • Page 12: Adjusting The Slide Position

    ADJUSTING THE SLIDE POSITION 1.Press the MENU button three times on radio mode or twice on AV mode to select the USER SELECTOR menu 2.Press the SEARCH UP/DOWN button to select MOVE 3.Press the VOLUME > button to select FORWARD. The monitor will slide one step (15mm) to the front.

  • Page 13: Selecting Mode

    SELECTING MODE Press the MODE button to select the desired mode. Each time you press the button, the mode changes as follows. RADIO -> AV1 -> AV2 -> AV3 (CD OR VCD CHANGER) -> AV4 (TV) -> RADIO NOTE 1.The CD or VCD changer must be connected to AV3. 2.The TV tuner box must be connected to AV4.
  • Page 14 ADJUSTING THE TV/VIDEO PICTURE MODE (ASPECT) Each time you press A (ASPECT) button, the picture mode switches between Normal, Full, Zoom and Wide. NORMAL MODE The monitor displays normal picture at the center of the screen with the proportion of 4 to 3.

  • Page 15: Radio Control

    Press the OPEN/CLOSE button to turn the power on and to open the monitor. The monitor shows following picture. (Radio mode) MANUAL TUNING Press the CH UP/DOWN button to move downward or upward one step respectively until the desired station frequency is selected. MANUAL STORING OF STATION 1.

  • Page 16: Radio Band

    NOTE On CD changer mode, you can pause or playback the current CD by pushing the AS/ATM button. TUNING TO THE STORED STATION Press the SEARCH UP/DOWN button repeatedly until the desired band is selected. SELECTING THE BAND AREA FOR YOUR COUNTRY 1.
  • Page 17 TREBLE 1. Press the SEARCH UP/DOWN button to select TREBLE. 2. Press the VOLUME < or > button to adjust treble level. BASS 1. Press the SEARCH UP/DOWN button to select BASS. 2. Press the VOLUME < or > button to adjust bass level. SUB WOOFER 1.
  • Page 18 SETTING THE NAVIGATION 1. Connect a NAVIGATION system only to AV1 or AV2 Input terminals on the rear of the unit. 2. Press the MODE button to select radio mode. 3. Press the MENU button to select following picture. 4. Press the SEARCH UP/DOWN button to select NAVIGATION. 5.

  • Page 19: Setting The Camera In

    SETTING THE CAMERA IN 1. Connect a Back View Camera only to AV1,2 or 3 Input terminals on the rear of the unit. * When the VCD changer is connected to AV3 Video input, The back view camera can be connected only to AV1 or AV2 video input. 2.

  • Page 20: Cd Changer Control

    When a CD (VCD) changer is connected to AV3 of this unit, AV3 mode changes to CDC mode and CDC control menu is displayed on the screen. 1. Press the MODE button to select CD CHANGER (AV3) mode. Each time you press this button, the display changes as follows. RADIO->...

  • Page 21: Intro Scan

    INTRO SCAN 1. Press the SEARCH button to select INTRO SCAN. 2. Press the CH UP/DOWN button to select the item. Each time you press the CH UP/DOWN button or the BAND button, the item changes as ONE -> ALL -> OFF -> ONE. ALL: The first 10 seconds of first track of all the discs will be played in succession.
  • Page 22 You can adjust the volume level of each channel of the radio or AV sources. ADJUSTING THE VOLUME OF EACH CHANNEL OF RADIO 1.Press the MENU button twice on radio mode. But to adjust volume level of each channel of AV sources, press the MENU button once on AV mode.
  • Page 23 1. Press the MENU button when the monitor shows following picture. The monitor shows following picture. 2. Press the SEARCH UP/DOWN button to select the items that you want to adjust. 3. Press the VOLUME < or > button to adjust the level of the selected item. FINE ADJUSTMENT FOR CENTER FREQUENCY AND TILT/SLIDE POSITION USER SELECTOR...

  • Page 24: Screen Control

    1. Press the MENU button when the monitor shows following picture. The monitor shows following picture. 2. Press the SEARCH UP/DOWN button to select the items that you want to adjust. 3. Press the VOLUME < or > button to adjust the level of the selected item. SCREEN CONTROL USER SELECTOR TILT POSITON...
  • Page 25 1. Press the SEARCH UP/DOWN button to select COLOR SYSTEM for the video source on SCREEN CONTROL menu. 2. Press the VOLUME < or > button to select PAL or NTSC for the video source. To select the color system for the TV When the TV tuner box is NOTE connected to the AV4 of monitor unit, 1.
  • Page 26 VOLUME CONTROL ON AV MODE To adjust audio level of AV sources on AV mode, 1. Press the VOULME < or > button. The monitor shows following picture. 2. Press the SEARCH UP/DOWN button to select the items that you want to adjust. 3.

  • Page 27: Warning Screen

    WARNING SCREEN The monitor shows following warning picture when the parking brake is not set or when driving to prevent traffic accident that may be caused while watching the screen. The monitor shows the warning picture only and does not show any other pictures, but you can enjoy the sound only by adjusting the volume.

  • Page 28: Installation

    PRECAUTIONS Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.

  • Page 29: Basic Connections

    (Brown) (Yellow) (Blue) (Red) (Orange) (Black) SPEAKER RIGHT FRONT SPEAKER RIGHT REAR SPEAKER LEFT REAR SPEAKER LEFT FRONT 1. Be sure that the PARKING SENSOR WIRE must be grounded or NOTE opened. If it is connected to ACC (B+). The unit can be damaged. 2.
  • Page 30 CONNECTING TO CD CHANGER AND TV TUNER BOX...
  • Page 31 AV INPUT FACE PLATE OF THE UNIT NOTE 3.5 Ø AV input on the front face of the unit is same input with AV1 input on the rear of the unit. If the sources are connected both input terminals,the 3.5Ø input has priority in working.

  • Page 32: Specifications

    AM SECTION USA BAND Frequency Range Frequency Step EUROPE BAND Frequency Range Frequency Step Intermediate Frequency Usable Sensitivity Image Rejection Ratio IF Rejection Ratio FM SECTION Frequency Range Frequency Step Manual tuning Seek tuning Intermediate Frequency Usable Sensitivity Image Rejection Ratio If Rejection Ratio CD CHANGER Signal/Noise radio...
