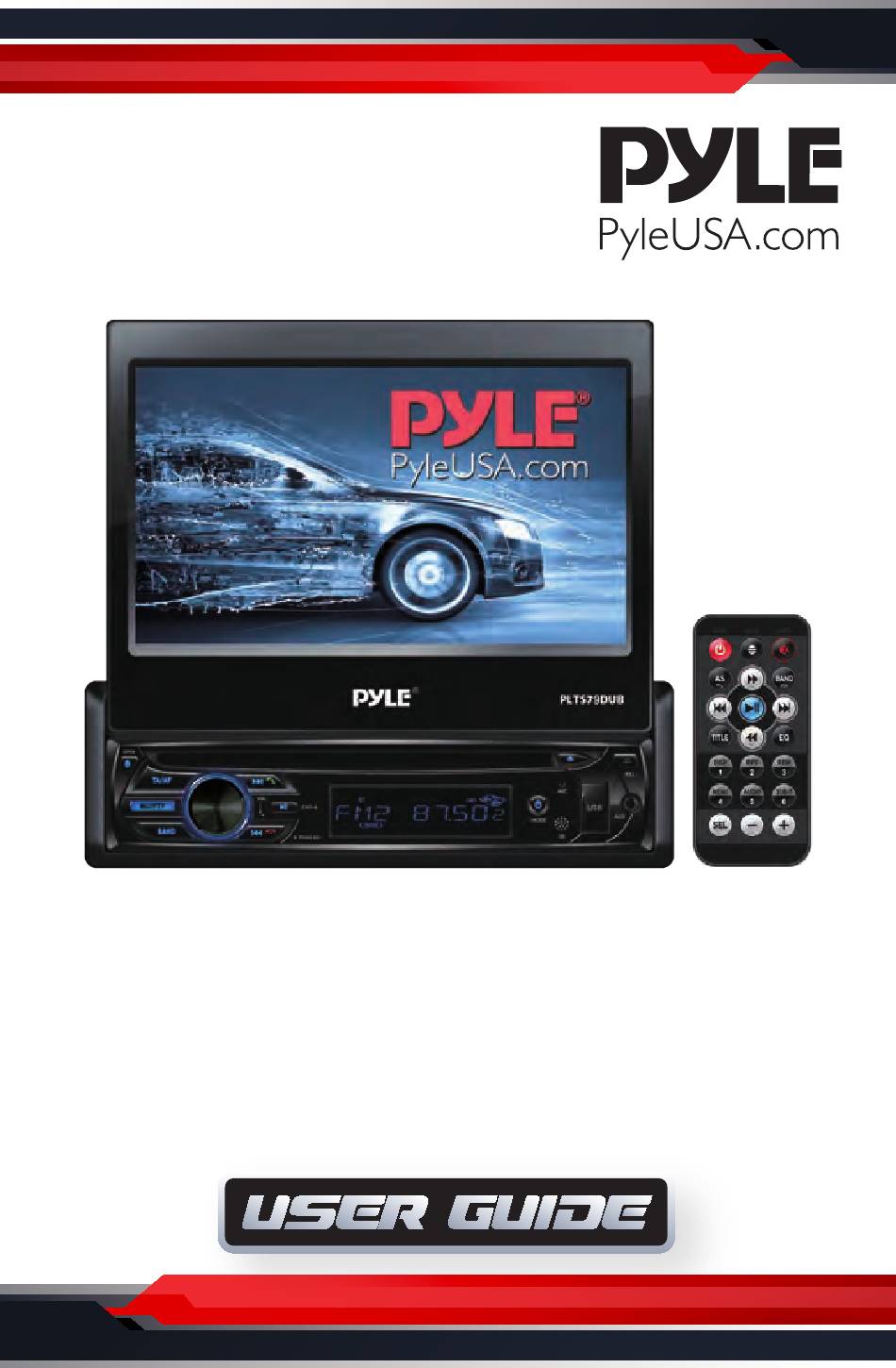

- Page 1 PLTS79DUB Car Stereo Video Receiver with Multimedia Disc Player, BT Wireless Streaming, Hands-Free Talking, Motorized Fold-Out 7’’ Touchscreen Display, DVD/CDMP4/MP3/USB/AM/FM Radio, Single DIN...
-
Page 2: Table Of Contents
CONTENTS Safety Information Precautions Installation Control Panel Remote Control Set Up Operations Radio Operations DVD/CD/MP3/USB Device Operations Wireless BT Operations Features Technical Specs Download the “Phonelink” Apk from Google Play Store www.PyleUSA.com... - Page 3 IMPORTANT: • Do not operate this digital video player while the vehicle is moving. • This is a safety feature to prevent driver distraction. • It’s illegal in most country for the driver to view video while the vehicle is moving.
-
Page 4: Installation
Copyright Notes: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. - Page 5 INSTALLATION: Dash Board Metal Mounting Hex Nut Strap Spring Washer Console Plain Washer Tapping Screw Slide Bracket Housing Hex Bolt Screwdriver Key Plate Plastic Tabs Trim Out Key Plate Wiring Connections: RADIO ANTENNA JACK CAM-R V-IN V-OUT1 V-OUT2 CAM-F AV-L SUB OUT AV-R www.PyleUSA.com...
- Page 6 BLACK SWC - GND BROWN SWC - 1 BROWN / WHITE SWC - 2 YELLOW ORANGE REVERSE (+) PINK BLACK PARKING BRAKE (B-) GROUND ORANGE / BLACK BLUE ILLUMINATION (+) POWER ANTENNA WHITE GRAY FRONT LEFT FRONT RIGHT CHANNEL SPEAKER CHANNEL SPEAKER WHITE/BLACK GRAY / BLACK...
-
Page 7: Control Panel
Control Panel Buttons: 1. OPEN/ BUTTON • Briefly press this button to slide the monitor out of slot. • Repeatedly press this button to tilt up and down the monitor. • Press and hold this button to slide the monitor inside of the slot. /MODE BUTTON In power on mode, short press it repeatedly to select one mode of the DISC, RADIO, USB, Phonelink, BT and AUX IN (AV IN). - Page 8 8. MUTE ON/OFF, PTY (Program Types) In power on mode, press the MUTE In radio mode, press and hold the PTY (PLAY/PAUSE) /CH 1-6 (PRESET RADIO STATION) In Disc/USB/BT music playback mode Press this button to pause playback, touch again to resume playback. In Radio Mode Press repeatedly to preset radio station.
-
Page 9: Remote Control
15. Release the detachable front panel If you want to reset the system of unit, when the LCD does not display normally or sound is distorted, or some controls are disabled, press the release button to detach the front panel. 16. - Page 10 1. OPEN / Briefly press this button to slide the monitor out of slot. Repeatedly press this button to tilt up and down the monitor. Press and hold this button to slide the monitor inside of the slot. 2. Power ON/OFF, MODE Press it to turn the unit ON , press and hold to turn the unit OFF.
-
Page 11: Setup Operations
14. SEL Press to turn to Pop/Classic/Rock/Jazz. 15. MUTE In power on mode, press the MUTE 16. BAND / Press the BAND button to select between FM1, FM2, FM3, AM1 and AM2 bands. In BT mode, press to reject an income call or end a call. 18. - Page 12 A. System: Logo Setting, Radio Area, OSD Language, Screensaver Mode, Key Beep, Setting, Time Setting, Default. • Logo Setting: To set a logo as the splash screen for this DVD player. • Radio Area: To choose the radio area: EUROPE, Northen America, South America, Russia, Japan, Asia.
- Page 13 can change the password for parental control rating as your favour. The factory default password is “0000”. • Rating: Every time changing parental control rating, user have to input the password. User can select one of below suitable parental control rating: 1 Kid Safe, 2 G, 3 PG, 4 PG 13, 5 PG-R, 6 R, 7 NC-17, 8 Adult.
-
Page 14: Radio Operations
Radio Operations: Press MODE button on the control panel or on the remote control, or tap the “Radio” icon on touch screen until Tuner is selected. 1. Home Page 2. Clock Time 3. Volume Level Adjust 4. TFT Screen Backlight brightness Adjust 5. - Page 15 Radio Operations: None, News, A airs, Info, Sport, Educate, Drama, Culture, Science, Varied, Pop M, Rock M, Easy M, Light M, Classics, Other M, Weather, Finance, Children, Social, Religion, Phone in, Travel, Leisure, Jazz, Country, Nation (national) M, Oldies, Folk M, Document, Test, Alarm! 18.
-
Page 16: Dvd/Cd/Mp3/Usb Device Operations
DVD/CD/MP3/USB Operations: Insert DVD/CD Disc Insert a video disc in the disc slot for video disc playback. Playback will begin automatically. Eject DVD/CD Disc on faceplate) or tap the icon on the touch sceen to eject the disc. USB Connection Note: The USB port of this car radio is also designed for phone link and charging for iPhone/android mobile phone. - Page 17 DVD/CD/MP3/USB Operations: VCD Playback: 10 11 12 13 14 15 16 17 18 1. Home Page 10. Stop Playback 2. Time 11. Repeat Playback 3. Volume Level Adjust 12. Next Page of the Menu Bar 4. TFT Screen Backlight brightness Adjust 13.
- Page 18 DVD/CD/MP3/USB Operations: MP3 Disc/USB Playback: 10 11 12 13 14 15 16 17 18 19 20 21 1. Home Page 12. Next Page of the Menu Bar 2. Time 13. Previous Page of the Menu Bar 3. Volume Level Adjust 14.
-
Page 19: Wireless Bt Operations
Wireless BT Streaming Operations: Pairing and Connecting Before using a BT phone with this unit, the phone must be paired and connected. The BT signal of the unit will broadcast when the power is on. This DVD player will displayed as "PyleUSA" on your phone. When prompted, enter the pass code "0000"... - Page 20 Android Phone Link Operations: Phone link allows you to mirror the screen of certain Android smartphones on the screen of this car DVD player. Simply connect your device to the USB port and you're ready to see your favorite smartphone apps directly on the screen. - Android phone link: 1) Please scan one of QR code on right side to download the “Phonelink”...
- Page 21 www.PyleUSA.com...
-
Page 22: Features
Features: • Multimedia Stereo Radio Receiver • 7’’ -inch HD Video Display • Wireless BT Music Streaming • Built-in Microphone for Hands-Free Talking • CD/DVD Player • Touchscreen Control • User-Friendly Control Interface • AM/FM Radio with LCD Display • Connect & Stream Audio from External Devices •... -
Page 23: Technical Specs
What’s in the Box: • Single DIN Receiver • Detachable Radio Face • Remote Control • Power & Wiring Harness Technical Specs: • Single DIN Size Universal Standard • Power Output: 4 x 80 Watt (320 Max.) • Wide Screen TFT - LCD Display •... - Page 24 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
