Summary of Contents for Projecta SPM25

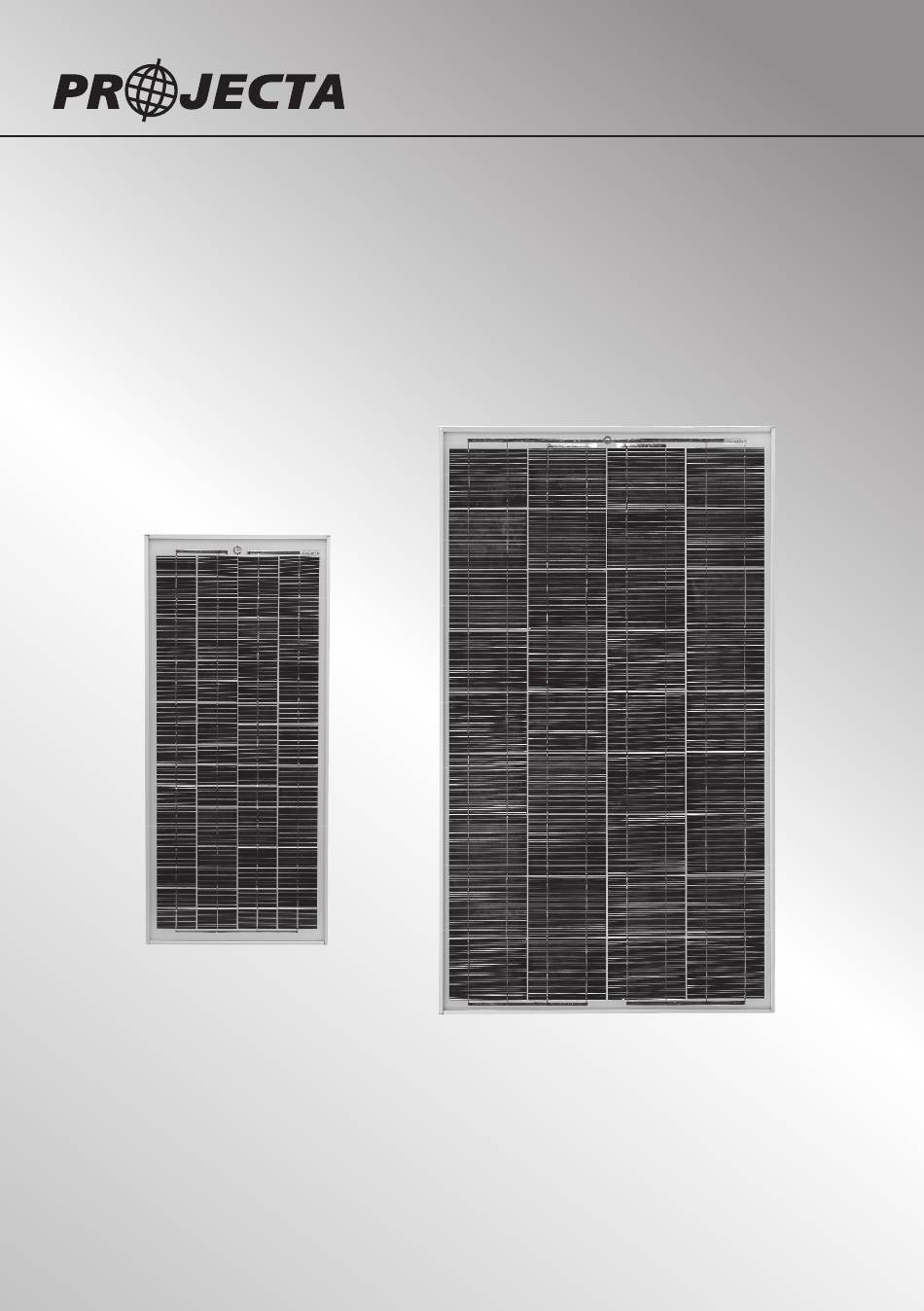

  • Page 1 MONOCRYSTALLINE SOLAR PANELS P/No SPM25, SPM50, SPM80, SPM95, SPM155-MC4, SPM170-MC4, SPM200-MC4...
  • Page 2 WARNING • For installations with lead acid batteries, avoid sparks or flames near the batteries and always use proper eye protection. • Given sufficient light, solar panels always generate energy even when they are disconnected. Accidental ‘shorting’ of the terminals or wiring can result in sparks causing personal injury or a fire hazard. It is recommended that the front face of the panel(s) are covered with a soft cloth to block incoming light during installation and wiring.
  • Page 3: Specifications

    SPECIFICATIONS Table 1 SPM25 SPM50 SPM80 SPM95 SPM155-MC4 SPM170-MC4 SPM200-MC4 TYPE Monocrystalline Monocrystalline Monocrystalline Monocrystalline Monocrystalline Monocrystalline Monocrystalline RATED POWER 155W 170W 200W OPEN CIRCUIT 23.2V VOLTAGES SHORT CIRCUIT 1.56A 3.13A 5.00A 5.94A 9.69A 10.63A 11.27A CURRENT PEAK POWER 17.5V 17.5V...
  • Page 4: Installation

    INSTALLATION PLACEMENT Locate the panel in a position where it is exposed to the sun for the majority of the day. For best results use a northern orientation. Make sure that the front side (dark side) of the solar panel faces the sun. Although the panel will function in the horizontal position, for best performance tilt the panel towards the sun especially during the winter months in the southern states.
  • Page 5 MOUNTING The panels are supplied with four or eight mounting holes (depending on the model). Use suitable fasteners and mount the panel to a flat surface or mounting frame as per fig. 1, 2 & 3. Ensure the battens or frame does not twist or bend the solar panel’s aluminium frame. FIG 1 FIG 2...
  • Page 6 FIG 3 SPM25 SPM50 All panels: 25mm depth SPM80 SPM95 All panels: 30mm depth FIXING HOLE DIMENSIONS (NOT DRAWN TO SCALE)
  • Page 7 FIG 3 (continued) SPM155-MC4 SPM170-MC4 1570 1320 All panels: 30mm depth SPM200-MC4 1476 FIXING HOLE DIMENSIONS (NOT 35mm depth DRAWN TO SCALE)
  • Page 8: Charge Control

    CHARGE CONTROL Solar panels are most commonly used to charge lead acid batteries. Projecta solar panels are designed to charge 12 VDC batteries. 24VDC batteries can be charged using 2 panels wired in series and using a 24VDC solar charge controller.
  • Page 9 CONNECTING SOLAR PANEL TO BATTERY Projecta products are covered by a 12 month warranty. Failure to follow the operating instructions may damage the product and will void warranty. Please read these operating instructions carefully before use. For a warranty claim please return unit to the place of purchase with your sales receipt as proof of purchase date.
  • Page 10 FIG 4 FIG 5 P/No. SPM80 & SPM95 P/No. SPM25 & SPM50 P/No. SPM150-MC4, SPM170-MC4, SPM200-MC4...
  • Page 11 9 metres use 6mm. It is not recommended to run longer than 9m.) • 10A Fuse or circuit breaker • 2 diodes (Projecta P/No. SPPDIODE) required on SPM25 & SPM50 as bypass diodes. Bypass diodes are built in on SPM80, SPM95, SPM155-MC4, SPM170-MC4, SPM200-MC4.
  • Page 12 FIG 6 FIG 7 P/No. SPM25 & SPM50 P/No. SPM80 & SPM95 P/No. SPM150-MC4, SPM170-MC4, SPM200-MC4...
  • Page 13 • Correct rated fuse or circuit breaker • 2 diodes (Projecta P/No. SPPDIODE suitable for up to 80W) used as blocking diodes. 1. Connect a fuse or circuit breaker to the positive terminal of the battery, (As near to the battery as possible) refer to Fig.
  • Page 14 FIG 8 FIG 9 P/No. SPM25 & SPM50 P/No. SPM80 & SPM95 Extra wiring post. Only on SPM25 & SPM50 P/No. SPM150-MC4, SPM170-MC4, SPM200-MC4...
  • Page 15 • Correct rated fuse or circuit breaker • 2 diodes for blocking (Projecta P/No. SPPDIODE suitable for up to 80W) plus 4 more bypass diodes if using SPM25 or SPM50. Bypass diodes are not necessary using the SPM80, SPM95, SPM155-MC4, SPM170-MC4, SPM200-MC4 as they are already built in.
  • Page 16 FIG 10 FIG 11 P/No. SPM25 & SPM50 P/No. SPM80 & SPM95 Extra wiring post. Only on SPM25 & SPM50 P/No. SPM150-MC4, SPM170-MC4, SPM200-MC4...
  • Page 17: Maintenance

    MAINTENANCE Periodically inspect the electrical connections and panel mounting bolts. Make sure they are all tight and free from corrosion. If necessary clean the surface of the solar panels with a soft dump cloth. Mild detergent can also be used. Any dirt or residue on the glass may effect performance. FREQUENTLY ASKED QUESTIONS Q.
  • Page 18 Q. Will the solar panel charge my flat battery & how long will it take? A. 1. The SPM25 is designed for ‘topping up’ and maintaining batteries. Given sufficient time it will put some charge back into the battery. 2. The SPM50, SPM80, SPM95, SPM155-MC4, SPM170-MC4, SPM200-MC4 will charge a battery.
  • Page 19 NOTES...
  • Page 20: Warranty Statement

    This warranty does not cover ordinary wear and tear, abuse, alteration of products or damage caused by the consumer. Projecta solar panels are covered by a 1 year warranty for materials and workmanship and a 20 year warranty for at least 80% power output.
