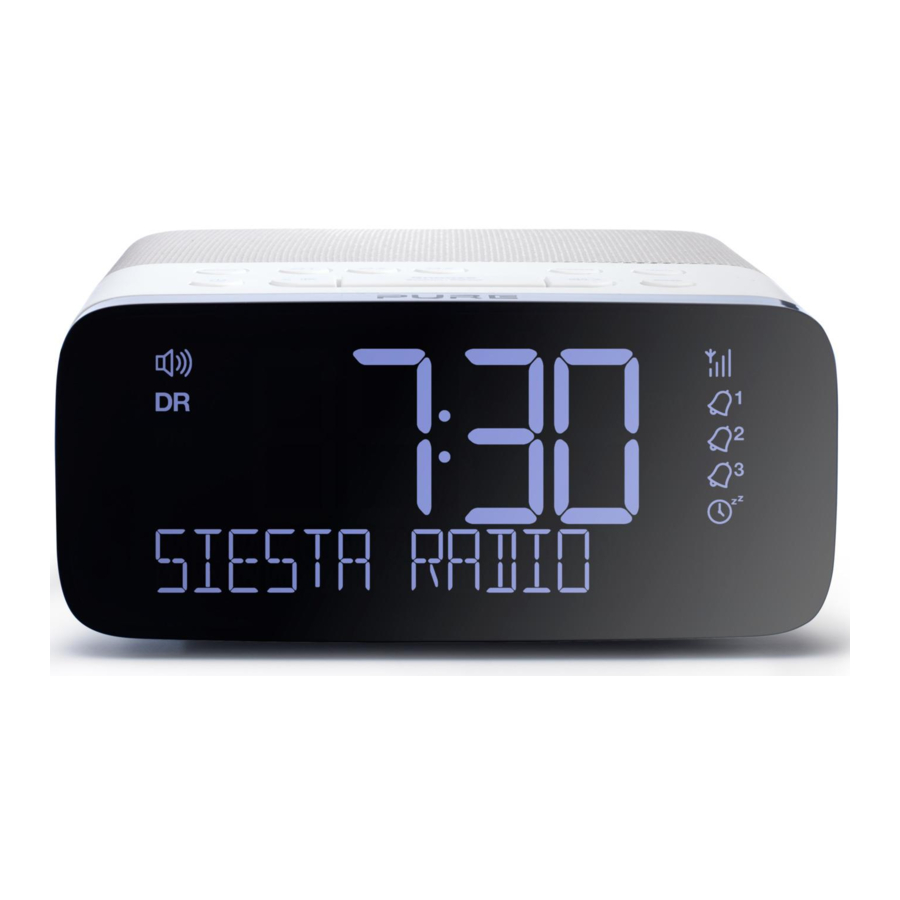

Pure Siesta Rise - Alarm Clock Radio Manual

Introduction

Top panel controls

1. Source button: Press to switch between listening to digital radio and FM radio.
2. Alarm buttons: Set or cancel individual alarms.
3. Preset button: Store up to 10 digital or 10 FM radio preset stations.
4. Menu button: Press to change various settings on Siesta.
5. Power button: Push to switch Siesta between on and standby.
6. Volume/Select buttons: Press to adjust volume. Press the and Select buttons to change radio stations or scroll and select menu options.
7. Sleep button: Press to set the sleep timer.

Rear panel connectors

	A. USB power connector
	B. USB connector for charging phone or tablet
	C. Stereo headphone socket
	D. Aerial

Display

1. Displays current time
2. AM/PM indicator
3. Signal strength
4. Alarm set indicators
5. () Kitchen timer indicator, () Sleep timer indicator
6. Displays station name, information and menu options
7. Source indicator (DR= digital radio, FM= FM radio)
8. Volume indicator

Getting started

• Position aerial (A) and connect power (B)

• Push () to switch on.

• Wait for Autotune to complete.

Listening to radio

Listening to digital radio

Press the Source button to switch to 'DAB'.

Changing digital stations

1. Press the Station button so that the < > symbols are shown on the display.
2. Scroll < > to the desired station.
3. Press the Station button to tune into the station.

Listening to FM radio

Press the Source button to switch to 'FM'.

Seek tuning

1. Press the Station button so that the < > symbols are shown on the display.
2. Hold either the scroll up or scroll down < > button until Siesta starts to automatically scan for the next station. The scan will stop when a station with a strong signal is found.

Manual tuning

1. Press the Station button so that the < > symbols are shown on the display.
2. Scroll < > to the required frequency.

Storing and selecting presets

You can store up to 10 digital and 10 FM radio stations for quick access and for use when setting a radio alarm.

Storing a radio preset

1. Tune into the station that you want to store.
2. Press the Presets buttons so that the < > symbols are shown on the display.
3. Scroll < > to the required Preset (1-10).
4. Press and hold the Select button to store the radio station as a preset.

Note: To overwrite a radio preset, tune into the station that you want to store and follow the above steps.

Selecting a radio preset

1. Press the Presets button.
2. Scroll < > to the station that you want to listen to.
3. Press the Select button to tune to the station.

Using the alarms

Siesta Rise has three alarms. The alarms switch the radio on (if in standby) and tune to a digital or FM radio station or sound a tone.

Setting a radio alarm

1. Press the , or button.
2. Scroll < > to 'On' and press the Select button.

3. Scroll < > to set the hour for the alarm and press the Select button.

4. Scroll < > to set the minute for the alarm and press the Select button.
5. Scroll < > to specify 'DAB' or 'FM' and press the Select button to confirm.

6. Scroll < > to specify the radio station that you want to play when the alarm goes off. You have the option of selecting one of your preset stations or you can select 'LAST USED' to select the station that you were last listening to. Press the Select button to confirm.

   Note: See "Storing and selecting presets" to find out how to set up a preset station.
7. Scroll < > to specify one of the following alarm frequency options: 'DAILY', 'ONCE', 'WEEKENDS' and 'WEEKDAYS' and press the Select button to confirm.

8. Press the and buttons to set the volume of the radio station when the alarm sounds and press the Select button to confirm.

9. The icon of the alarm you have set will appear on the display.


Setting a tone alarm

1. Press the , or button.
2. Scroll < > to 'ON' and press the Select button.

3. Scroll < > to set the hour for the alarm and press the Select button.

4. Scroll < > to set the minute for the alarm and press the Select button.
5. Scroll < > to specify 'TONE' and press the Select button to confirm.

6. Scroll < > to specify one of the following alarm frequency options: 'DAILY', 'ONCE', 'WEEKENDS' and 'WEEKDAYS' and press the Select button to confirm.

7. Press the and buttons to set the volume the radio will play at when the alarm sounds and press Select to confirm.

8. The icon of the alarm you have set will appear on the display.


Switching an alarm on/off

Press the , or utton to toggle an alarm on or off.

The icon of the alarm that you have switched on will display to indicate that an alarm is set.

Snoozing a sounding alarm

Press the Snooze button to snooze a sounding alarm (default 10 minutes). See information on setting the snooze time. Siesta will display a countdown timer to show how long the alarm will snooze for.

The alarm will reactivate after the snooze time has expired.

Cancelling a sounding alarm

Press any back row button to cancel a sounding alarm.
Press the Standby ( ) button to turn Siesta off.

Setting the sleep timer

You can set the sleep timer to switch Siesta off after a specified period of time.

1. Press the Sleep button.
2. Scroll < > until the amount of time that you want to set the sleep timer to is displayed (15-90 minutes) and press the Select button to confirm.


The sleep timer icon will appear when a sleep timer is set.

Setting the kitchen timer

Siesta includes a countdown kitchen timer which will sound an alarm after a set time period.

1. Press theMenu button.
2. Scroll< > to 'KITCHEN TIMER' and press the Select button.

3. Scroll< > to change the hours and press the Select button.

4. Scroll< > again to change the minutes and push to confirm and start the countdown timer.

The alarm will sound after the time period you have set whether the radio is on or in standby. Cancel the beeping alarm tone by pressing any button on the back row. Press the Standby ( ) button to turn Siesta off.

Options and settings

General settings

Changing the language shown on the display

To switch the display language on Siesta between English, French, German, Italian and Spanish:

1. Press the Menu button.
2. Scroll < > to 'SETTINGS' and press the Select button.
3. Scroll < > to 'LANGUAGE' and press the Select button.
4. Scroll < > and press the Select button to choose the language that you want Siesta to display.

Resetting Siesta to factory settings

Resetting your Siesta radio removes all presets, clears the station list and resets all options to defaults. To carry out a factory reset:

1. Press the Menu button.
2. Scroll < > to 'SETTINGS' and press the Select button.
3. Scroll < > to 'FACTORY RESET' and press the Select button.
4. Scroll < > to 'YES' and press the Select button.

Displaying Siesta's software version

To display software version that is currently running on Siesta:

1. Press the Menu button.
2. Scroll < > to 'SETTINGS' and press the Select button.
3. Scroll < > to 'VERSION' and press the Select button.

Updating Siesta to the latest version of software

Contact Pure technical support (http://support-uk.pure.com) for more information on how to update Siesta to the latest software version.

Audio settings

You can use Siesta's audio menu to adjust the bass and treble.

1. Press the Menu button.
2. Scroll < > to 'AUDIO' and press the Select button.
3. Scroll < > to 'BASS' or 'TREBLE' and press the Select button.
4. Scroll < > to adjust the bass or treble levels. You can choose a level between '-3' and '+3'.
5. Press the Select button to confirm the bass or treble level.

Display settings

Adjusting the display brightness

You can adjust the brightness of the display when Siesta is switched on or in standby. To change the brightness of Siesta's display:

1. Press the Menu button.
2. Scroll < > to 'DISPLAY' and press the Select button.
3. Scroll < > to 'BACKLIGHT' and press the Select button.
4. S croll < > to 'ACTIVE' and press the Select button to change the settings that apply when Siesta is switched on, or scroll to < > 'STANDBY' and press the Select button to change settings that apply in standby.
5. Scroll< > to 'LEVEL' and press the Select button.
6. Scroll < > to choose a brightness level between '1' and '5'.
7. Press the Select button to confirm the brightness setting.

Adjusting how long the display backlight stays on for

You can adjust how long Siesta's display backlight stays on for:

1. Press the Menu button.
2. Scroll < > to 'DISPLAY' and press the Select button.
3. Scroll < > to 'BACKLIGHT' and press the Select button.
4. S croll < > to 'ACTIVE' and press the Select button to change the settings that apply when Siesta is switched on, or scroll to < > 'STANDBY' and press the Select button to change settings that apply in standby.
5. Scroll < > to 'DURATION' and press the Select button.
6. Scroll < > and press the Select button to choose one of the following options:
   ALWAYS ON: Choose this option if you want the backlight to always stay on.
   TIMED OFF: Choose this option if you want the backlight to turn off after 10 seconds.

Changing the information shown on Siesta's display

If you are listening to a digital or FM radio station, you can change the information that is shown on Siesta's display:

1. Press the Menu button.
2. Scroll < > to 'DISPLAY' and press the Select button.
3. Scroll < > to 'INFORMATION' and press the Select button.
4. Scroll < > to 'ACTIVE' and press the Select button to change the settings that apply when Siesta is switched on, or scroll to < > 'STANDBY' and press the Select button to change settings that apply in standby. The following options are available in 'ACTIVE' mode:

STATION NAME: Scroll < > to this option and press the Select button if you want to display the name of the radio station that is currently playing.

SCROLLING TEXT: Scroll < > to this option and press the Select button if you want to display the information broadcast by the station you are currently listening to. The information displayed may include song titles, programme details, news, etc.

SIGNAL STRENGTH: Scroll < > to this option and press the Select button if you want to display the signal strength of the radio station you are currently listening to. The number of asterisks indicate the reliable reception level.

DATE: Scroll < > to this option and press the Select button if you want to display the current date.

The following options are available in 'STANDBY' mode.

TIME: Scroll < > to this option and press the Select button if you only want to display the time when Siesta is in standby.

TIME AND DATE: Scroll < > to this option and press the Select button if you want to display the time and date when Siesta is in standby.

Clock settings

Setting the time and date

The time and date on Siesta are automatically set by the FM or digital radio signal. If the time/date on Siesta is not updating automatically, you can manually set it.

1. Press the Menu button.
2. Scroll < > to 'CLOCK' and press the Select button.
3. Scroll < > to 'SET TIME/DATE' and press the Select button.
4. Scroll < > to set the hour and press the Select button. Repeat to set the minutes.
5. Scroll < > to set the day and press the Select button. Repeat to set the month and the year.

Changing the time format

1. Press the Menu button.
2. Scroll < > to 'CLOCK' and press the Select button.
3. Scroll < > to 'SET 12/24 HOUR' and press the Select button.
4. Scroll < > to choose between '12 HOUR' and '24 HOUR' and press the Select button to confirm.

Changing the date format

1. Press the Menu button.
2. Scroll < > to 'CLOCK' and press the Select button.
3. Scroll < > to 'SET DATE FORMAT' and press the Select button.
4. Scroll < > to choose between 'DD-MM-YYYY' and 'MM-DD-YYYY' and press the Select button to confirm.

Clock synchronization options

You can select the radio sources that you want to use for setting the time. By default, Siesta uses both the FM and digital radio signals to synchronize the time.

To specify the clock synchronization options:

1. Press the Menu button.
2. Scroll < > to 'CLOCK' and press the Select button.
3. Scroll < > to 'CLOCK SYNC' and press the Select button.
4. Scroll < > to choose the required clock synchronization option and press the Select button to confirm.

Changing the alarm snooze time

You can change the amount of time an alarm will snooze for when you press Siesta's Snooze button during a sounding alarm. By default, Siesta's snooze time is set to 10 minutes.

To change Siesta's snooze time:

1. Press the Menu button.
2. S croll < > to 'CLOCK' and press the Select button.
3. Scroll < > to 'SNOOZE' and press the Select button.
4. Scroll < > to choose a snooze time between '5' and '59' minutes and press the Select button to confirm.

Autotune

You can use the autotune function to automatically scan for new digital radio stations and remove inactive ones.

Note: The 'Autotune' function is only visible when you have selected 'DAB' as the radio source.

1. Press the Menu button.
2. Scroll < > to 'AUTOTUNE' and press Select.
3. The number of stations found will be displayed during the autotune.
4. When the autotune has finished, Siesta will tune to the last station that you were listening to.

FM stereo

You can use the FM stereo menu to make switch between stereo and mono reception. You may want to select 'STEREO' if you are listening to Siesta using headphones.

Note: The 'FM STEREO' option is only visible when you have selected 'FM' as the radio source.

To change Siesta's FM stereo setting:

1. Press the Menu button.
2. Scroll < > to 'FM STEREO' and press the Select button.
3. Scroll < > to choose between 'STEREO' and 'MONO' and press the Select button to confirm.

Technical specifications

Radio	Digital and FM radio
Frequencies	DAB/DAB+, FM radio 87.5-108 MHz
Speaker	Full-range 2.5" drive unit. 2W RMS amplifier.
Input connectors	5.5V (2A) Micro USB power adapter socket (also for software updates)
Output connectors	USB-A (1A) socket for charging phone or tablet, 3.5mm headphone socket
Controls	Power on/Standby, Volume/Snooze/Select, Source, Alarms, Presets, Menu, Sleep
Presets	10 digital radio and 10 FM presets
Power	100-240V AC to 5.5V (2A) DC Micro USB external power adapter
Dimensions	141.4 mm wide x 137 mm deep x 63 mm high
Weight	0.521 kg
Aerial	Wire aerial attached
Warranty	Comprehensive three year warranty
Approvals	CE marked. Compliant with the EMC and Low Voltage Directives (2004/108/EC and 2006/95/EC) ETSI EN 300 401 compliant
