ChyTV HD multi-SDI
Quick Start Guide
Rev. 8 12/7/17
Thank you for choosing our ChyTV HD multi-SDI graphics system. This Quick
Start Guide is a supplement to the ChyTV User Guide, which can be found in
the USB thumb drive Manuals folder. While most of the information in the
current ChyTV User Guide is applicable to the ChyTV Plus, HD 100, HD 150,
HD 250, HD BB, HD multi-SDI, HD Alert, and other ChyTV products, this
Quick Start includes brief descriptions of HD multi-SDI specific information not

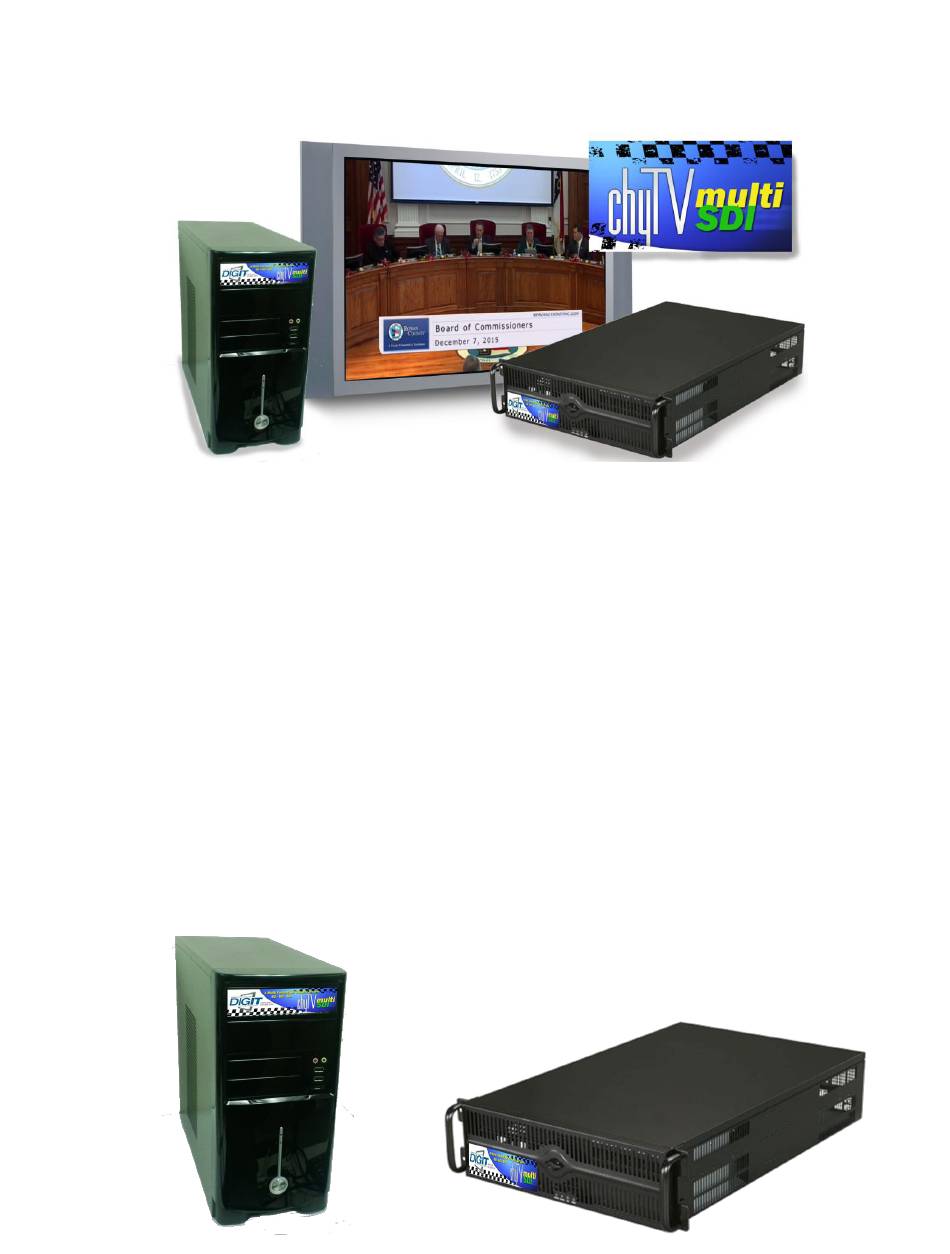

included in the current User Guide. Note that the HD multi-SDI system is
available in either a PC tower or a 3 RU redundant power supply rack-mount
chassis.
Please contact ChyTV Customer Support with any questions at:
631-845-2092.
Advertisement
Related Manuals for ChyTV HD multi-SDI
Summary of Contents for ChyTV HD multi-SDI
- Page 1 Thank you for choosing our ChyTV HD multi-SDI graphics system. This Quick Start Guide is a supplement to the ChyTV User Guide, which can be found in the USB thumb drive Manuals folder. While most of the information in the...
- Page 2 220 volts. The switch is located on the rear of the device near the line cord receptacle. By default the ChyTV HD device may come set for 220 with a sticker covering it that says “Switch for 110”. This is to protect the system from damage when shipped overseas.
- Page 3 Before the ChyTV HD device can be connected to directly across the network from ChyTV Tools, it must be configured with a valid IP address. Since the ChyTV HD device is a stand-alone appliance, configuring custom parameters such as the IP address are achieved using the included USB thumb drive.
- Page 4 5. Power on ChyTV HD device. Wait for complete boot. 6. On the ChyTV HD device, insert the USB thumb drive into an empty USB slot. Note that only USB 2.0 is currently supported. Therefore the best choice would be one of the USB slots on the rear panel next to the Ethernet port.
- Page 5 ChyTV Author WYSIWYG tool. Having set the IP address on the ChyTV HD device, the device can be connected to via any Windows PC on the network using ChyTV Tools. A newer version of ChyTV Tools is available on the shipped USB drive and is called ChyTV_Tools2_1.0.xxxx.msi.
- Page 6 Please contact ChyTV customer support at 631-845-2092 for help and training. Configuring IP Addresses in ChyTV Tools To connect to one or more ChyTV devices, the IP addresses must be configured in ChyTV Tools. To add IP Addresses, select the magnifying glass next to the Devices drop-down on the middle Tools menu bar.
- Page 7 The device can now be selected from the Device drop-down. See image below: Note that alternate projects can be selected to be the current project from the Current Project dropdown.
- Page 8 Configuring Projects Using ChyTV Tools A ChyTV Project is a folder that includes all content, assets and schedule information for playback. A project is resident on a PC and managed using ChyTV Tools. When appropriate, ChyTV Tools is used to transfer the project from the PC to the HD-mini device.
- Page 9 The Update All button is used to transfer the currently selected project from the PC to the ChyTV device. Users will generally want their computer project (top half of Tools) to match the device project (bottom half of Tools). If there is any kind of mismatch in the two project names, Tools will generate the following warning.
- Page 10 ‘synchronized’. Configuring the Hardware The Hardware Configuration Manager has been incorporated into ChyTV Tools. It is used to set a variety of system settings, including: • Audio volume levels for Line In, Video Clip and Line Out.
- Page 11 Select A/V/O menu. See image below: To modify audio settings, modify the settings to desired values and press Save to send the settings to the ChyTV device. Select Restart ChyTV App to apply the settings. To modify video settings, select the Video Tab and modify settings to desired values and press Save to send the settings to the ChyTV device.
- Page 12 To install ChyTV Tools, double-click the installation msi file: ChyTV_Tools2_1.0.xxxx.msi. ChyTV Author also requires version 9.03C of DirectX. This can be found on the USB drive in the “DX Setup / DX” folder. Navigate there and run the “DXSETUP.exe” application. See image below:...
- Page 13 Author canvas can be configured in a variety of formats, including NTSC, PAL, HD 720 and HD 1080, all in 4 x 3 or 16 x 9 and landscape or portrait. ChyTV Author imports a wide variety of graphic, animation and video clip formats, including jpg, png, tif, tga,...
