ChyTV HD BB
Quick Start Guide
Rev. 9 7/7/18
Thank you for choosing our ChyTV HD graphics system. This Quick Start
Guide is a supplement to the ChyTV User Guide, which can be found in the
USB thumb drive Manuals folder. While most of the information in the current
ChyTV User Guide is applicable to the ChyTV Plus, HD 100, HD 150, HD 250,
HD BB, HD multi-SDI, HD Alert, and other ChyTV products, this Quick Start
includes brief descriptions of HD BB specific information not included in the

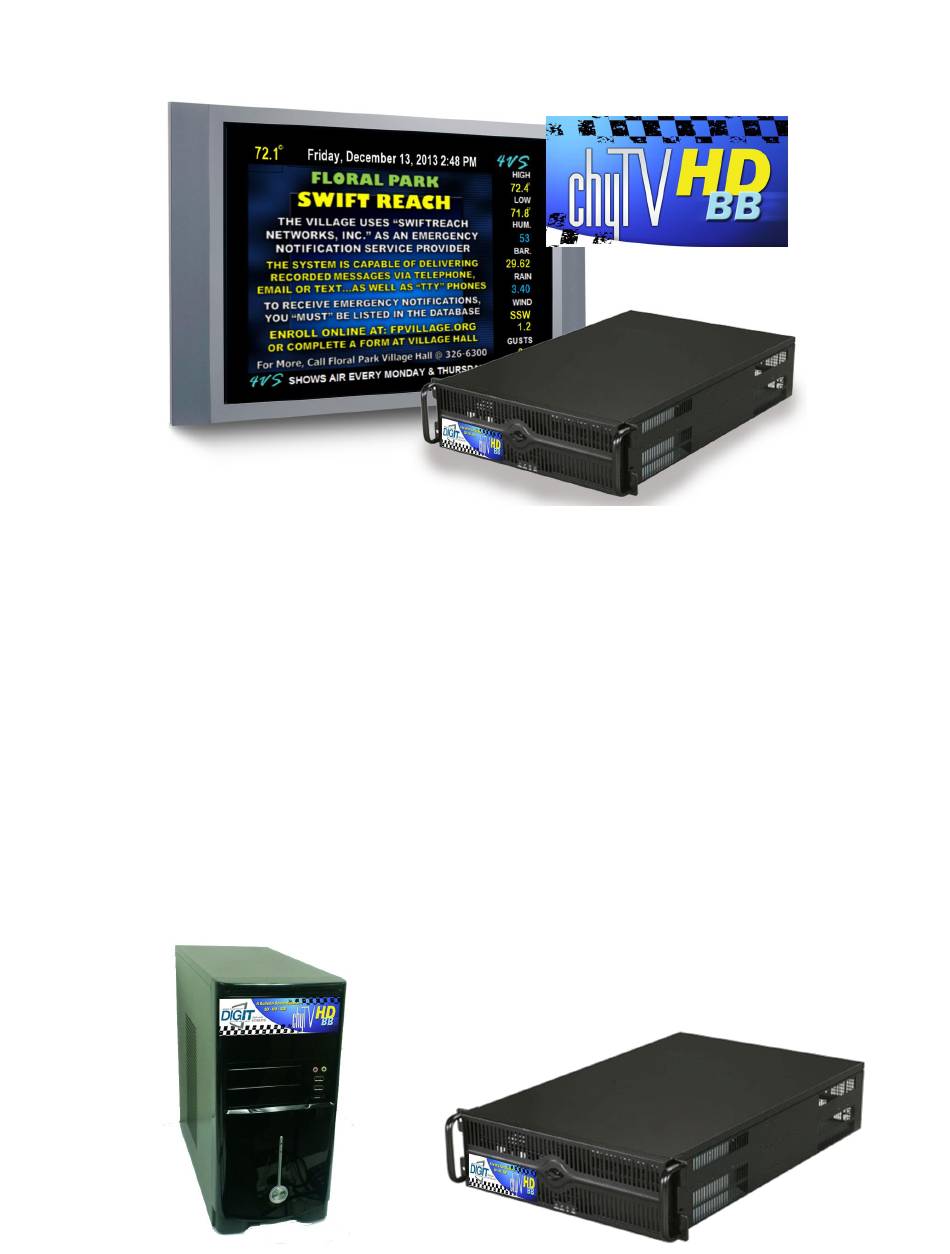

current User Guide. Note that the HD BB system is available in either a PC
tower or a 3 RU redundant power supply rack-mount chassis.
Please contact ChyTV Customer Support with any questions at:
631-845-2092.
Advertisement
Related Manuals for ChyTV HD BB
Summary of Contents for ChyTV HD BB
- Page 1 HD BB, HD multi-SDI, HD Alert, and other ChyTV products, this Quick Start includes brief descriptions of HD BB specific information not included in the current User Guide. Note that the HD BB system is available in either a PC tower or a 3 RU redundant power supply rack-mount chassis.
- Page 2 220 volts. The switch is located on the rear of the device near the line cord receptacle. By default the ChyTV HD device may come set for 220 with a sticker covering it that says “Switch for 110”. This is to protect the system from damage when shipped overseas.
- Page 3 Before the ChyTV HD device can be connected to directly across the network from ChyTV Tools, it must be configured with a valid IP address. Since the ChyTV HD device is a stand-alone appliance, configuring custom parameters such as the IP address are...
- Page 4 5. Power on ChyTV HD device. Wait for complete boot. 6. On the ChyTV HD device, insert the USB thumb drive into an empty USB slot. Note that only USB 2.0 is currently supported. Therefore the best choice would be one of the USB slots on the rear panel next to the Ethernet port.
- Page 5 Installing the Software The ChyTV management and creation applications can be found on the included USB thumb drive. The drive also includes several Sample Projects and utilities and can be used to initialize the ChyTV device IP address. Opening the USB drive on a PC will show something like the following: The same exact thumb drive image is used for all of our products.
- Page 6 ChyTV Author WYSIWYG tool. Having set the IP address on the ChyTV HD device, the device can be connected to via any Windows PC on the network using ChyTV Tools. A newer version of ChyTV Tools is is available on the shipped USB drive and is called ChyTV_Tools2_1.0.xxxx.msi.
- Page 7 Next give the device and name and enter its IP address. See image below:...
- Page 8 The device can now be selected from the Device drop-down. See image below: Note that alternate projects can be selected to be the current project from the Current Project dropdown.
- Page 9 Configuring Projects Using ChyTV Tools A ChyTV Project is a folder that includes all content, assets and schedule information for playback. A project is resident on a PC and managed using ChyTV Tools. When appropriate, ChyTV Tools is used to transfer the project from the PC to the HD-mini device.
- Page 10 The Update All button is used to transfer the currently selected project from the PC to the ChyTV device. Users will generally want their computer project (top half of Tools) to match the device project (bottom half of Tools). If there is any kind of mismatch in the two project names, Tools will generate the following warning.
- Page 11 ‘synchronized’. Configuring the Hardware The Hardware Configuration Manager has been incorporated into ChyTV Tools. It is used to set a variety of system settings, including: • Audio volume levels for Line In, Video Clip and Line Out.
- Page 12 Select A/V/O menu. See image below: To modify audio settings, modify the settings to desired values and press Save to send the settings to the ChyTV device. Select Restart ChyTV App to apply the settings. To modify video settings, select the Video Tab and modify settings to desired values and press Save to send the settings to the ChyTV device.
- Page 13 To install ChyTV Tools, double-click the installation msi file: ChyTV_Tools2_1.0.xxxx.msi. ChyTV Author also requires version 9.03C of DirectX. This can be found on the USB drive in the “DX Setup / DX” folder. Navigate there and run the “DXSETUP.exe” application. See image below:...
- Page 14 Author canvas can be configured in a variety of formats, including NTSC, PAL, HD 720 and HD 1080, all in 4 x 3 or 16 x 9 and landscape or portrait. ChyTV Author imports a wide variety of graphic, animation and video clip formats, including jpg, png, tif, tga,...
