Models 10959-201 and -203

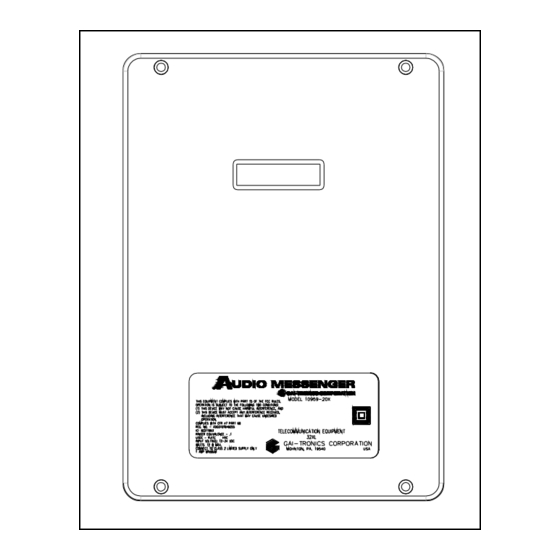

Wall-Mount Audio Messenger Interface
Confidentiality Notice .....................................................................................................................1
Product Overview ............................................................................................................................1
Features .................................................................................................................................................... 1
Options ..................................................................................................................................................... 2
Functions .................................................................................................................................................. 2
Alarms ................................................................................................................................................... 2
Inputs/Outputs ....................................................................................................................................... 2
Timed Events ........................................................................................................................................ 2
Optional Telephone Operation (Model 10959-203 only) ..................................................................... 3
®
Operation .......................................................................................................................... 3
Optional ADVANCE Operation ........................................................................................................... 3
Optional Zone Operation ...................................................................................................................... 4
Optional AMI Redundancy ................................................................................................................... 4
Installation ......................................................................................................................................4
Mounting .................................................................................................................................................. 5
Field Wiring ............................................................................................................................................. 6
Digital Outputs ...................................................................................................................................... 6
Digital Inputs ........................................................................................................................................ 7
Audio..................................................................................................................................................... 8
System ................................................................................................................................................... 8
Ethernet ................................................................................................................................................. 9
Power .................................................................................................................................................... 9
Optional PBX Connection (Model 10959-203 only) ............................................................................ 9
®
........................................................................................................................................... 9
Auxiliary Microphone ......................................................................................................................... 10
Settings and Adjustments ..............................................................................................................11
Opening the Unit ................................................................................................................................... 11
Level Adjustments ................................................................................................................................ 12
Display Brightness .............................................................................................................................. 12
Phone Line Levels ............................................................................................................................... 12
Party Line Levels ................................................................................................................................ 12
Page Line Levels ................................................................................................................................. 12
Jumper Settings ..................................................................................................................................... 12
600-Ohm Line Termination ................................................................................................................ 12
AUDBUS1 Termination ..................................................................................................................... 12
AUDBUS2 Termination ..................................................................................................................... 12
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374 800-492-1212 Fax: 610-796-5954
V
ISIT WWW
G A I - T R O N I C S
A H U B B E L L C O M P A N Y
T
A B L E O F
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
®
C
O N T E N T S
Pub. 42004-403G
Advertisement
Table of Contents
Related Manuals for Hubbell GAI-Tronics 10959-203
Summary of Contents for Hubbell GAI-Tronics 10959-203
-
Page 1: Table Of Contents
Pub. 42004-403G ® G A I - T R O N I C S A H U B B E L L C O M P A N Y Models 10959-201 and -203 Wall-Mount Audio Messenger Interface A B L E O F O N T E N T S Confidentiality Notice ........................1 Product Overview ..........................1... - Page 2 Table of Contents Pub. 42004-403G Audio Contact Supervision ......................... 12 Date and Time Set Up ........................... 14 Date Set Up ............................14 Time Set Up ............................14 AMI Configuration Tool (ACT) ....................14 Overview ..............................14 System Requirements ........................... 14 Configurable Parameters ........................15 Fragments ............................
-
Page 3: Confidentiality Notice
Pub. 42004-403G ® G A I - T R O N I C S A H U B B E L L C O M P A N Y Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Confidentiality Notice This manual is provided solely as an installation, operation, and maintenance guide and contains sensitive business and technical information that is confidential and proprietary to GAI-TRONICS. -
Page 4: Options
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 2 of 21 Options telephone access desktop paging microphone up to 40 user defined inputs and 40 user defined outputs audio routing to eight zones ... -
Page 5: Optional Telephone Operation (Model 10959-203 Only)
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 3 of 21 Optional Telephone Operation (Model 10959-203 only) The Model 10959-203 AMI can provide passcode-protected telephone access to the system to allow telephone access only if the correct Remote Access Security Code is entered. The remote access code is used to prevent unwanted callers from directly accessing the system. -
Page 6: Optional Zone Operation
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 4 of 21 Scheduled events and live pages can be played through the ADVANCE system to a specified zone group. Zone groups are configured using the ACT tool and the ADVANCE system configuration software. Configured zone groups can be assigned to individual events, messages, or the AMI auxiliary microphone jack. -
Page 7: Mounting
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 5 of 21 Mounting 1. Loosen the four screws on the front cover. 2. Open the hinged front cover of the enclosure and turn it to the left. 3. Remove the cable connections between the front cover and the rear enclosure. 4. -
Page 8: Field Wiring
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 6 of 21 Field Wiring Figure 2. Wiring Connections (Model 10959-203 shown) Digital Outputs Terminal block TB1, labeled DIGITAL OUTPUTS is located on the termination PCBA. It provides eight digital common ground outputs. -
Page 9: Digital Inputs
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 7 of 21 Table 2. Digital Output Connections Termination Internal Function or ACT PCBA Label Terminal Pin-Out Description TB1-1 Ground or dc common TB1-2 Output 1 TB1-3 Output 2 TB1-4 Output 3 TB1-5... -
Page 10: Audio
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 8 of 21 Audio Terminal block TB3, labeled AUDIO, is located on the termination PCBA. It provides connections for audio inputs, audio outputs, and local RS-485 data connections. Audio connections to a public address amplifier require shielded pair conductors. -
Page 11: Ethernet
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 9 of 21 Ethernet The Ethernet connector, jack J1, is located on the termination PCBA, and is reserved for future implementation. Power Terminal block, TB6, labeled CLASS 2 12–24 VDC, is located on the termination PCBA. It provides the required 12–24 V dc power connection to the AMI. -
Page 12: Auxiliary Microphone
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 10 of 21 Auxiliary Microphone Jack J1, located on the upper left corner of the main PCBA, provides connectivity for an auxiliary microphone. The pinout for the microphone jack is as follows: Table 8. -
Page 13: Settings And Adjustments
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 11 of 21 Settings and Adjustments Opening the Unit 1. Loosen the four screws on the front cover. 2. Open the hinged front cover of the enclosure and turn it to the left. Figure 3. -
Page 14: Level Adjustments
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 12 of 21 Level Adjustments Display Brightness Adjust potentiometer R237, on the main PCBA, to change the brightness of the LCD display on the front of the assembly. Phone Line Levels Two potentiometers on the optional telephone interface PCBA adjust the telephone audio levels: ... - Page 15 Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 13 of 21 Figure 4. Termination PCBA Table 9. Termination PCBA Jumper Functions Jumper Output Position Function 600-ohm resistor connected (ADVANCE position) TB3-5, 6 Audio bus 1 Default: unterminated 600-ohm resistor connected (ADVANCE position) TB3-1, 2 600 ohms...
-
Page 16: Date And Time Set Up
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 14 of 21 Date and Time Set Up Date Set Up Use the push buttons located on the top edge of the main PCBA to set the date (see Figure 3 for the locations of the push buttons). -
Page 17: Configurable Parameters
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 15 of 21 Configurable Parameters Fragments ® All tones and voice messages are digitally recorded and stored on the CompactFlash card as audio fragments stored in MP3 files. Messages Each message is a collection of fragments. -
Page 18: Optional Telephone Interface
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 16 of 21 Optional Telephone Interface Configure the following parameters if using the telephone interface: number of rings before answer paging mode (live or recorded) page delay, if recorded ... -
Page 19: Operation
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 17 of 21 Operation ® The AMI operates based on system inputs and outputs or by manual operation after the CompactFlash has been programmed and installed in the unit. LCD Display at Initial Power Up The AMI completes a self-diagnostic of its settings at initial power up. -
Page 20: Lcd Display During Operation
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 18 of 21 LCD Display during Operation The LCD uses various symbols to indicate AMI activity: The VU meter indicates the volume of a page playing. Mute indicates the page audio is muted. ... -
Page 21: Push-Button Menu Operation
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 19 of 21 Push-Button Menu Operation Front panel push buttons provide menu access for various control features including; play a message, stop a message, and firmware update. Stop Message This menu item halts the currently playing message. -
Page 22: Specifications
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 20 of 21 Specifications Power Supply Voltage ................. 12 to 24 V dc (UL listed) Class 2 power source (plug-in 12 V dc power supply included with AMI) Current ........................... 1 A (minimum) Power consumed ......................... -
Page 23: Environmental
Pub. 42004-403G Models 10959-201 and -203 Wall-Mount Audio Messenger Interface Page 21 of 21 Environmental Temperature range ................... +32 ºF to +122 ºF (0 ºC to +50 ºC) FCC Information Complies with CFR47, Part 15 ......................Class A Approvals Safety of Information Technology Equipment..UL 60950, CAN/CSA-C22.2 No. 60950-00, IEC 60950 Replacement Parts Table 10. - Page 24 Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
