Pub. 42004-503A
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y

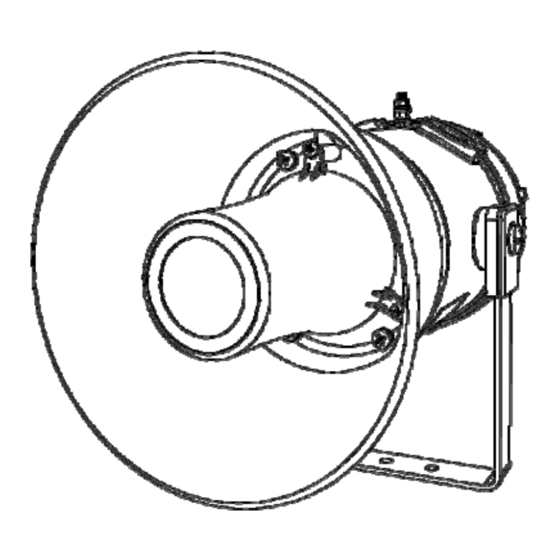

Model 13310-4xx Series
Loudspeakers
Instruction and Service Manual
This manual covers the following loudspeaker models:
Model 13310-411, 16-ohm, 25 watts, UL Class II Division 1
Model 13310-412, 8-ohm, 25 watts, UL Class II Division 1
Model 13310-413, 70 V line, 25 watts, UL Class II Division 1
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374 800-492-1212 Fax: 610-796-5954
V
.
-
.
ISIT WWW
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Advertisement
Related Manuals for Hubbell GAI-Tronics 13310-4 Series
Summary of Contents for Hubbell GAI-Tronics 13310-4 Series
- Page 1 Pub. 42004-503A G A I - T R O N I C S ® A H U B B E L L C O M P A N Y Model 13310-4xx Series Loudspeakers Instruction and Service Manual This manual covers the following loudspeaker models: ...
-
Page 2: Warranty
Pub. 42004-503A Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document. - Page 3 INSTRUCTION & SERVICE MANUAL 13310-4XX LOUDSPEAKERS For Use In Hazardous Locations - Dust Ratings and Markings 3.1 Class / Division Ratings for US and Canada The 13310-4xx Loudspeakers comply with the following standards for hazardous locations: UL 1203 CSA C22.2 NO. 30-M1966 The 13310-4xx Loudspeakers also comply with the following standards for signaling equipment: UL1480...
- Page 4 Pub. 42004-503A The Equipment must not be installed with the horn facing d. Replace the explosionproof cover of the loudspeaker, upwards of horizontal. taking care not to damage the explosionproof threads and checking that the O-ring seal is in place. Tighten the cover To maintain the ingress protection rating and mode of fully.
- Page 5 Pub. 42004-503A The cable connections are made into the terminal blocks on earth crimp ring should be located between the two M5 plain the PCB assembly located in the explosionproof enclosure. washers provided and securely locked down with the M5 spring ...
- Page 6 Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
