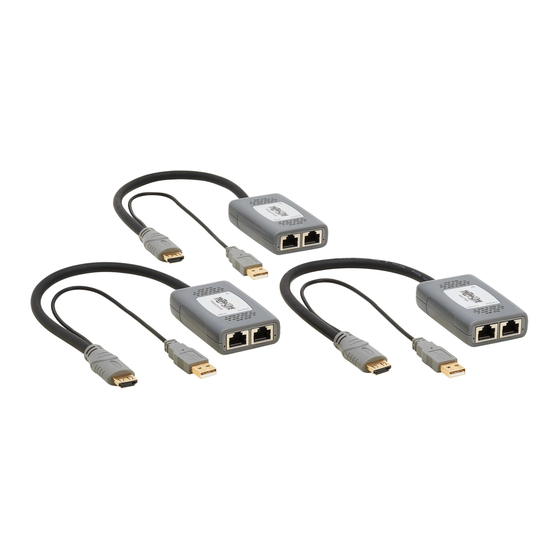

2-port displayport to hdmi over cat6 pigtail splitter/ extender kit, 4k/60 hz
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Owner's Manual
2-Port DisplayPort to HDMI
Over Cat6 Pigtail Splitter/
Extender Kit, 4K/60 Hz
Model: B127U-002-PDPH2
Este manual está disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:
tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2023 Tripp Lite. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B127U-002-PDPH2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tripp Lite B127U-002-PDPH2

Summary of Contents for Tripp Lite B127U-002-PDPH2

  • Page 1 Model: B127U-002-PDPH2 Este manual está disponible en español en la página de Tripp Lite: tripplite.com Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com Русскоязычная версия настоящего руководства представлена на веб-сайте компании Tripp Lite по адресу: tripplite.com Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:...

  • Page 2: Product Features

    Product Features • Extends a 4K x 2K (3840 x 2160) @ 60 Hz A/V signal from a DisplayPort source to two HDMI displays up to 230 ft. (70 m) from the source over 24 AWG Cat6 cabling • Transmitter and receiver units can be powered by the built- in 1 ft.

  • Page 3: Optional Accessories

    Optional Accessories • N202-Series Cat6 24 AWG Solid Wire Patch Cables • B127U-110-PD DisplayPort over Cat6 Receiver with Repeater • B127U-110-PH HDMI over Cat6 Receiver with Repeater • U280-W01-QC3-1 USB-A Wall Adapter, 18 Watts...

  • Page 4: Installation

    (AWG) size higher than 24 AWG will result in shorter extension distance. Higher-gauge cabling, such as 26 AWG, has a more limited transmission capability than lower-gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling. • The installation diagram shows a B127U-002-PDPH2 splitter/ extender kit.
  • Page 5 USB Power Adapter USB Power USB Power USB Power Adapter Adapter Adapter 4K or 1080p 4K or 1080p 4K or 1080p B127U-002-PDPH2 DisplayPort 4K/60Hz Source up to 230ft up to 230ft up to 230ft 24AWG Cat6 Cable 24AWG Cat6 Cable...
  • Page 6 Installation 6. Connect the pigtail USB-A connector on the remote receiver unit to a USB power adapter (5V/1A) or a USB 3.0 port on the display. The LEDs next to the RJ45 connectors will illuminate orange to indicate the ports are receiving power. Optional: The transmitter and receiver units can be charged via the Micro-USB ports on each unit by connecting a Micro- USB to USB-A cable between each unit and a USB power...

  • Page 7: Warranty And Product Registration

    PRODUCT REGISTRATION Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See...
  • Page 8 Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
