- Page 1 INSTRUCTION MANUAL BUILT-IN WINE COOLER MODEL: TYWC298S/TYWC510S E-mail: support@itylza.com Phone: 1-213-352-5535(US) Mon-Sat 10am-6pm (PST) Read this manual and follow all safety rules and operating instructions before first use of this wine cooler.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PRODUCT DIAGRAM INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler To Install Stainless Steel Handle To Install Your Wine Cooler OPERATION INSTRUCTIONS Controls Recommended Temperature Settings Storage Door Lock Shelves To Remove a Sliding Shelf CARE &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. This wine cooler complies with the applicable safety requirements and is safe for daily use. However, basic safety precautions should always be followed when using an electrical appliance, to reduce the risk of fire, electric shock, and personal injury. - Page 4 Do not use this wine cooler for other than its intended purpose. For indoor, household use only. Move this wine cooler by 2 people. Failure to do so can result in injury. Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and below 32°C (90°F).
-
Page 5: Product Diagram

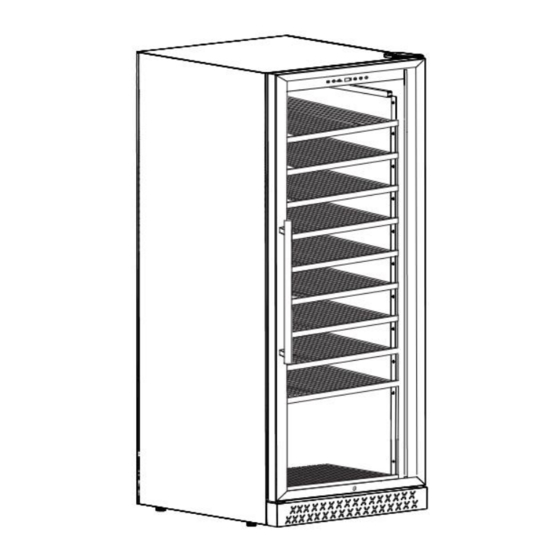

PRODUCT DIAGRAM TYWC298S/TYWC510S Control Panel Top Hinge Shelves Glass Door with Handle Exhaust Window Safety Child Lock Levelling Legs... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler Remove the exterior and interior packaging. Check to be sure you have all the following parts: TYWC298S 10 Shelves/TYWC510S 16 Shelves 2 Keys Stainless Steel Handle Instruction Manual 2 Extra Screws for Installing Handle ... -
Page 7: To Install Your Wine Cooler
Illustration #1 Illustration #2 1 Gasket 2 Screw 3 Screw Driver 4 Handle To Install Your Wine Cooler This wine cooler is designed for freestanding or built-in (fully recessed) installation. Place your wine cooler on a solid and level floor that is strong enough to support it when it is fully loaded. - Page 8 fluctuate, and the temperature range of 5ºC-18ºC (40ºF-65ºF) may not be reached. Connect the wine cooler to an exclusive, properly grounded, standard electrical supply (115 V AC only, 60 Hz), in accordance with the National Electrical Code and local codes and ordinances.
-
Page 9: Operation Instructions
OPERATION INSTRUCTIONS Controls After plugging the wine cooler into a wall outlet, the cooler would turn on automatically and the LCD screen would show the temperature inside the cooler. After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours before placing wine bottles in the wine cooler. -
Page 10: Recommended Temperature Settings
Light Control The light will automatically turns off 10 mins later for energy saving. Note: To keep the light staying on always, please press the lighting mark until you hear 2 “beep” Recommended Temperature Settings Storing wines at the proper temperature is important. To preserve them as long as possible, wine needs to be stored at approximately 55°... -
Page 11: Shelves
Shelves This wine cooler is equipped with a sliding rail assembly, and you can move the shelves out and in smoothly. The slide-out shelves allow bottles of wine to be viewed and removed more easily. Any of the shelves can be removed to store larger bottles. To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment. -
Page 12: Care & Maintenance
CARE & MAINTENANCE Cleaning Your Wine Cooler IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use harsh cleansers or scouring pads to clean any part of the cooler. Turn off the power, unplug the wine cooler, and remove all items including shelves. ... -
Page 13: Moving Your Wine Cooler
than this, turn the wine cooler off and leave the door slightly ajar to prevent odor from building inside the wine cooler. Moving Your Wine Cooler Remove all items (bottles) from the cooler. Securely tape down any loose items, such as shelves, inside the cooler. ... - Page 14 To replace the filter Remove the bottles of wine stored on the two (2) shelves in front of the filter. Remove the shelves and set aside to be replaced once you have changed the filter. Hold the filter and turn it at 45 degrees in the counter-clockwise direction, and then pull it out.
-
Page 15: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION The wine cooler may not be plugged Ensure the wine cooler has been in, or the plug may be loose. plugged in properly. The wine cooler The wine cooler is turned off. Press to turn on the cooler. does not run. - Page 16 PROBLEM POSSIBLE CAUSE SOLUTION Not plugged in. Plug the cooler in. The circuit breaker tripped The light does not Check the breaker and/or fuses. or a blown fuse. work. The light button is “OFF”. Press to turn the light ON. The cooler is not leveled.
- Page 17 30 days upon receipt of the product. 2. Customers are entitled to after sales service from TYLZA for any product proven defective in material or workmanship that results in product failure during normal consumer usage and conditions within the valid warranty period, which is 12 months counting from the date of selling.
