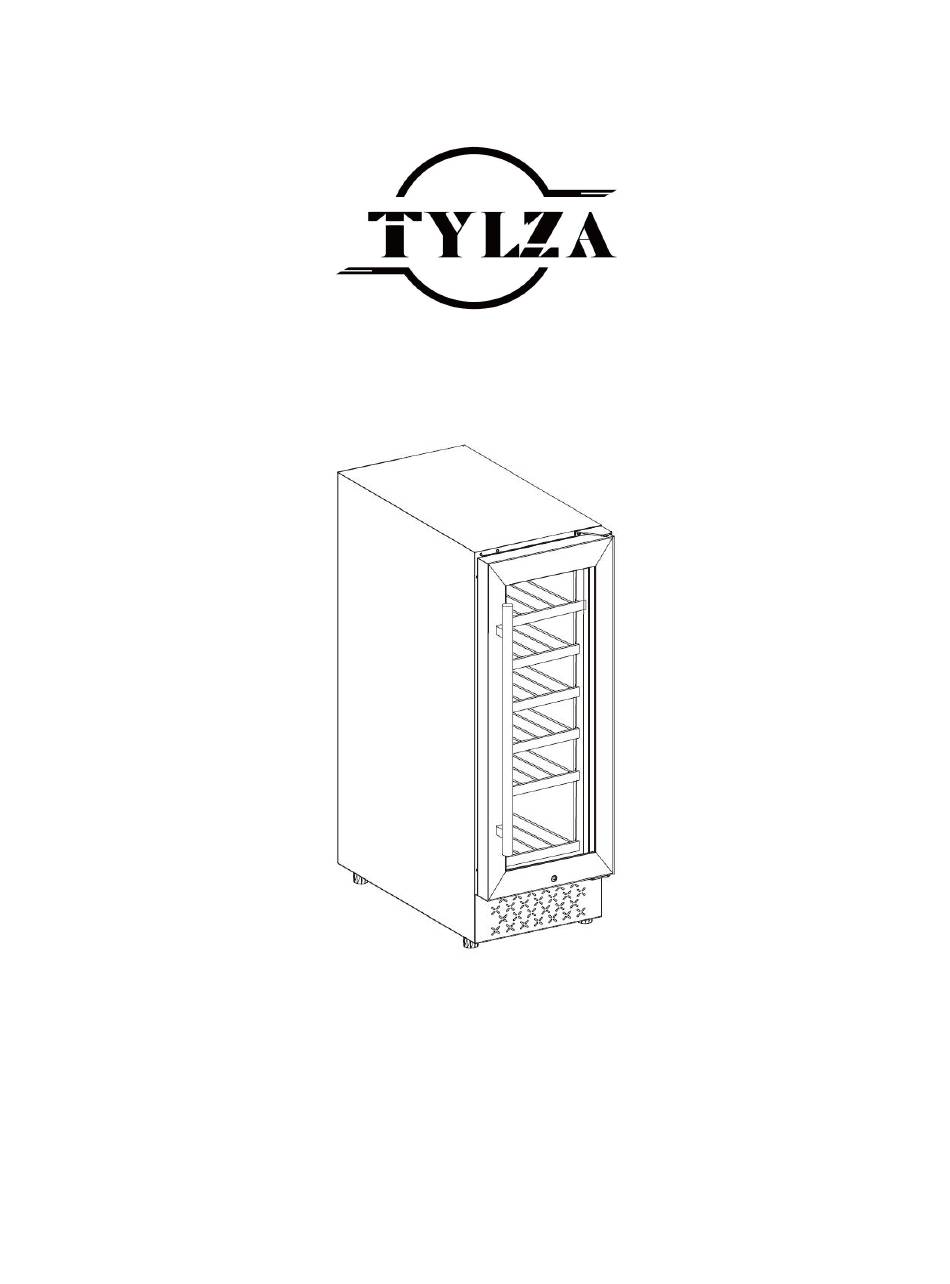

- Page 1 INSTRUCTION MANUAL BUILT-IN WINE COOLER MODEL: TYWC60 Read this manual and follow all safety rules and operating instructions before first use of this wine cooler.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PRODUCT DIAGRAM INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler To Install Stainless Steel Handle To Install Your Wine Cooler OPERATION INSTRUCTIONS Controls Recommended Temperature Settings Storage Door Lock Beech Shelves CARE & MAINTENANCE Cleaning Your Wine Cooler Power Failure Vacation Time Moving Your Wine Cooler... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. This wine cooler complies with the applicable safety requirements and is safe for daily use. However, basic safety precautions should always be followed when using an electrical appliance, to reduce the risk of fire, electric shock, and personal injury. -
Page 4: Product Diagram
Do not use this wine cooler for other than its intended purpose. For indoor, household use only. Move this wine cooler by 2 people. Failure to do so can result in injury. Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and below 32°C (90°F). -
Page 5: Installation Instructions
Control Panel Top Hinge Beech Shelves Glass Door with Handle Exhaust Window Safety Child Lock Leveling Legs INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler... -
Page 6: To Install Stainless Steel Handle
Remove the exterior and interior packaging. Check to be sure you have all of the following parts: 6 Beech Shelves 2 Keys Stainless Steel Handle Instruction Manual 2 Extra Screws for Installing Handle IMPORTANT: Before connecting this wine cooler to a power source, let it stand upright for approximately 24 hours. -
Page 7: To Install Your Wine Cooler
1 Gasket 2 Screw 3 Screw Driver 4 Handle To Install Your Wine Cooler This wine cooler is designed for free standing or built-in (fully recessed) installation. Place your wine cooler on a solid and level floor that is strong enough to support it when it is fully loaded. -
Page 8: Operation Instructions
V AC only, 60 Hz), in accordance with the National Electrical Code and local codes and ordinances. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized products service center. Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center. -
Page 9: Recommended Temperature Settings
After plugging the wine cooler into a wall outlet, the cooler would turn on automatically and the LCD screen would show the temperature inside of the cooler. After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours before placing wine bottles in the wine cooler. -
Page 10: Storage
the optimal drinking temperature for the different varietal of wine. Wine Varietal °F °C Rose and Sparkling Wines 41°F-46ºF 5°C-8ºC Dry/White Wines 48°F-53ºF 9°C-12ºC Red Wines 59°F-65ºF 14°C-18ºC Storage This wine cooler is designed to store standard Bordeaux 750 ml wine bottles.. Many bottles differ in size and dimensions. -
Page 11: Care & Maintenance
CARE & MAINTENANCE Cleaning Your Wine Cooler IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use harsh cleansers or scouring pads to clean any part of the cooler. Turn off the power, unplug the wine cooler, and remove all items including shelves. ... -
Page 12: Power Failure
Power failure Most power failures are corrected within a few hours and should not affect the temperature of your wine cooler. If the power is off for an extended period of time, proper steps should be taken to protect your contents. Vacation Time Leave the wine cooler operating during vacations of less than three weeks. -
Page 13: Charcoal Filtration System
Charcoal filtration system Your wine is a living object that breathes through the cork of its bottle. In order to preserve the quality and taste of your fine wines, they must be stored at the ideal temperature and ambient conditions. Your wine cooler is equipped with an active charcoal filtration system to ensure air purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION The wine cooler may not be Ensure the wine cooler has been plugged in, or plug may be loose. plugged in properly. The wine cooler does not The wine cooler is turned off. Press to turn on the cooler. - Page 15 PROBLEM POSSIBLE CAUSE SOLUTION Not plugged in. Plug the cooler in. The circuit breaker tripped The light does not Check the breaker and/or fuses. or a blown fuse. work. The light button is “OFF”. Press to turn the light ON. The cooler is not leveled.
