Application: Designed to lift a wide range of motor vehicles.
Item
Part
No.
No.
Qty.
Description
1
501238
1
Handle Assy
2
12368
1
Hex Hd. Cap Screw
3
509167
1
U-joint
4
10549
1
Spring Pin
5
501795
1
Hydraulic Assy
6
501283
1
Decal
7
501237
1
Saddle
8
217176
1
Cotter Pin
9
501800
2
Front Wheel
10
15953
2
Washer
11
14855
6
Retaining Ring
12
501814
2
Anchor Pin
13
513781
2
Spring
14
501290
1
Rod
2
1
23
18, 19
16, 17
25
15
20, 21

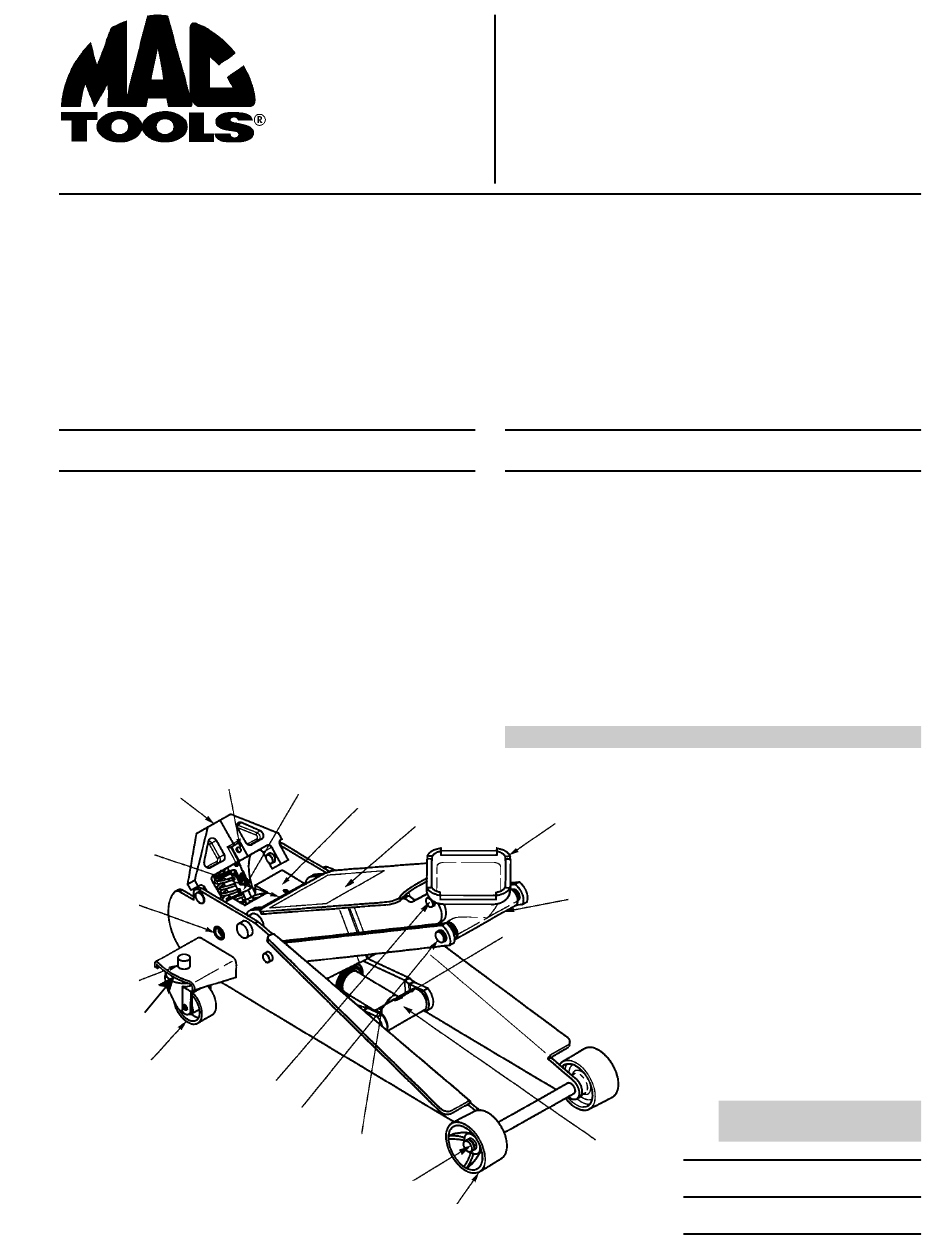

© SPX Corporation
Service Jack
Max. Capacity: 2-1/2 Tons
Saddle Low Point:
Saddle High Point:
Lifting Range:
Handle Length:
(not shown)
(3/8-16)
(see back)
(1/8-2")
(3/4")
(3/4")
5
(parts list
3, 4
on back
of this sheet)
6
14, 11
12, 13
10, 11
Parts List and
Operating Instructions
for:
4 in.
24 in.
19.5 in.
48 in.
Item
Part
No.
No.
Qty.
15
501288
16
10252
17
10397
18
501818
19
501805
20
501291
21
12101
22
501401
23
501817
24
501410
25
10236
PARTS INCLUDED BUT NOT SHOWN
501234
516675
7
24
8
22, 11
9
Form No. 106447
JSA250USA
Description
2
Caster
(3/4")
2
Lockwasher
(3/4")
2
Hex Nut
4
Spacer
(5/8-11 x 1")
4
Bolt
1
Rod
(5/8")
2
Retaining Ring
1
Load Block
1
Grease Fitting
1
Saddle Pivot
2
Washer
1
Pump Roller
1
Pin / Retaining Ring Set
Shaded areas reflect the last
revisions made to this form.
Sheet No.
