COMPETITION SERIES
AMPLIFIER
OWNER'S MANUAL

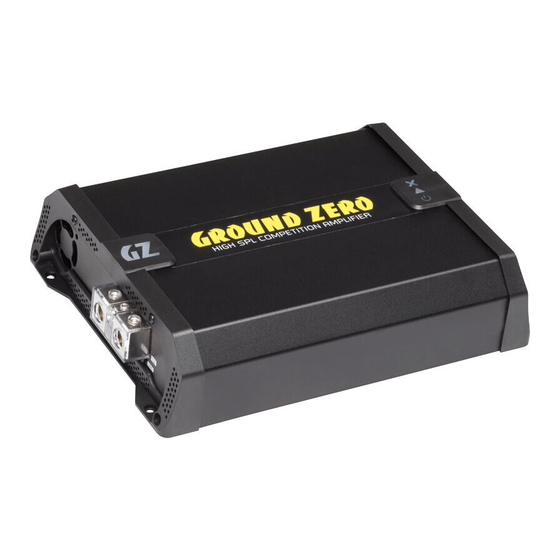

GZCA 5.0K-SPL
Features
•
1 Ohm stable mono wide range amplifier
•
High efficient class D technology
•
Status LED monitoring
•
Illuminated GZ logo
•
Up to 12 dB adjustable bass boost (@ 35 to 55 Hz)
•
Adjustable high-pass filter
•
Adjustable low-pass filter
•
Adjustable input sensitivity
•
Thermal / short circuit / overload protection

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GZCA 5.0K-SPL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ground Zero GZCA 5.0K-SPL

Summary of Contents for Ground Zero GZCA 5.0K-SPL

  • Page 1 COMPETITION SERIES AMPLIFIER OWNER’S MANUAL GZCA 5.0K-SPL Features • 1 Ohm stable mono wide range amplifier • High efficient class D technology • Status LED monitoring • Illuminated GZ logo • Up to 12 dB adjustable bass boost (@ 35 to 55 Hz) •...

  • Page 2: Recommended Wiring

    Recommended wiring GZCA 5.0K-SPL Speaker wires min 4.0 mm² / 11 AWG Power supply wires min 50.0 mm² / 0 AWG Remote wire min 0.75 mm² / 20 AWG Mounting instructions • As a precaution, it is recommended to disconnect the vehicles battery before mounting (also note the vehicles manual!) •...
  • Page 3 Controls & Features – GZCA 5.0K-SPL...
  • Page 4 Controls & Features – GZCA 5.0K-SPL INPUT socket to connect RCA wire* from the audio source / head unit OUTPUT socket to connect another amplifier /provides the original audio signal FILTER HP control to adjust the required high pass crossover point from 5 Hz to 80 Hz...
  • Page 5 Input & Output wiring – GZCA 5.0K-SPL...
  • Page 6 Signal Input wiring – GZCA 5.0K-SPL...

  • Page 7: Specifications

    Specifications Model GZCA 5.0K-SPL Amplifier type Mono wide range class D RMS Power @ 2 Ω 2800 W (0.1% THD+N) measured @ 14.4 V RMS Power @ 1 Ω 5600 W (0.1% THD+N) measured @ 14.4 V RMS Power @ 1 Ω...

  • Page 8: Troubleshooting Guide

    The battery voltage is below 9.5 V Terms of warranty The limited warranty for this product is covered by Ground Zero´s local distribution partners and their terms and conditions. For further information contact your local retailer or distributor. Ground Zero GmbH Erlenweg 25, 85658 Egmating, Germany Tel.
