Oreck ProShield Plus - Air Purifier Manual

Introduction

Read this manual carefully, and keep for future reference.

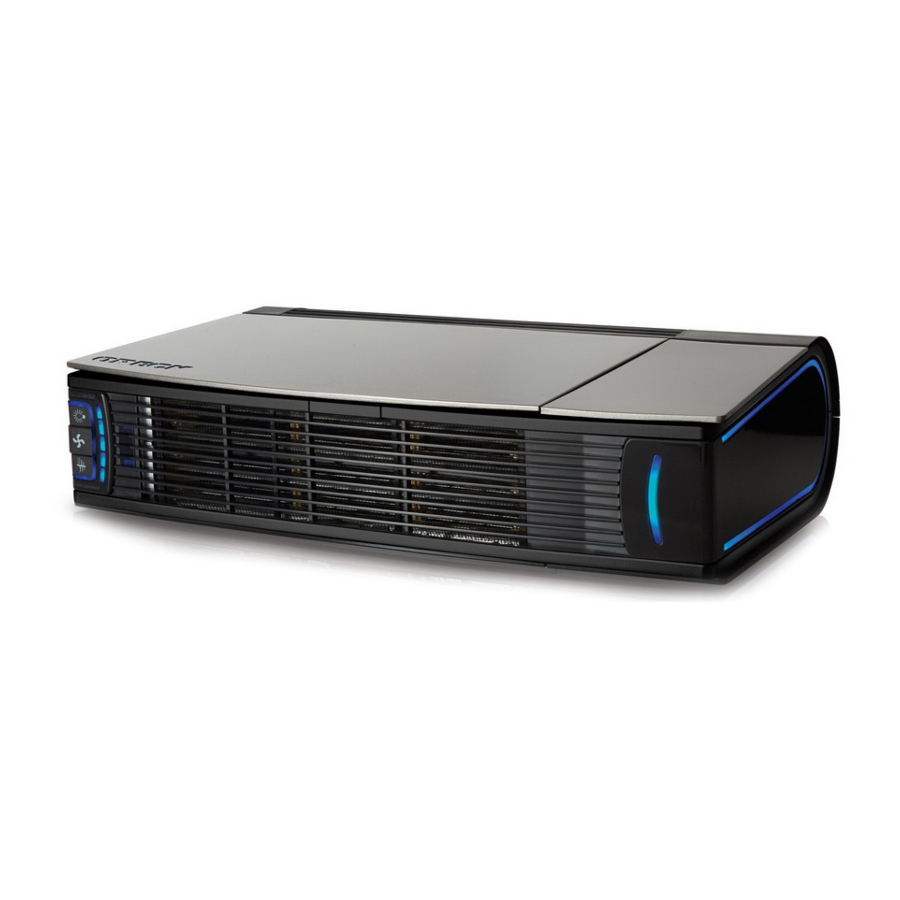

This user's guide describes the features of the Oreck ProShield^® Plus Air Purifier.

Safety

General Warnings
warning IMPORTANT SAFETY INSTRUCTIONS

Only use the air purifier as described in this user's guide. Failure to do so may result in serious injury or death.
Do not use the air purifier with a damaged cord or plug. Doing so may result in electric shock, serious injury or death. Have a qualified service technician replace any damaged cords or plugs.
Do not handle the unit with wet hands. Doing so may result in electrical shock, serious injury or death. Thoroughly dry your hands before handling any part of the air purifier.

Hair, loose clothing and body parts may get caught in the machine resulting in injury. Keep hair, loose clothing and body parts away from openings and moving parts.
Do not unplug by pulling on the cord. Doing so may result in electrical sparks and fire. Unplug the unit by grasping, and pulling the plug.
The Oreck ProShield Series is equipped with an ALCI (Appliance Leakage Current Interrupter). The ALCI shuts off the unit in potentially hazardous situations.
Note: A polarized plug has one rounded prong and one straight prong. The rounded end goes into the longest socket slot.

Note: The ALCI has a Test and Reset button which should be tested each time the unit is plugged in.
Do not remove the tag which provides test instructions from around the cord at the ALCI.

Improper installation of ALCI can result in electric shock.
Do not modify or bypass the ALCI. Do not replace any electrical component in this product with anything other than an authorized ORECK replacement part. The risk of electric shock can result if used in the vicinity of improperly grounded stationary appliances (stove, refrigerator, washer, etc.).

Do not use an extension cord.
Do not place the air purifier near sources of heat, such as stove tops, ovens, radiators or computers.

Placement Warnings

Do not use the air purifier outdoors or on wet surfaces. Doing so may result in electric shock, serious injury or death. Use only indoors and under dry conditions.
Do not use the air purifier in an enclosed space where flammable, combustible or explosive gases are present.
Do not use in an area where toxic vapors, flammable dust or oxygen tanks are present. Doing so may result in serious injury or death. Check the location and make sure these elements are not present.

Do not place open flames, including candles, directly in front of the air purifier.
Keep objects away from the air intake grille.

It is important to consider the following when deciding on where to locate the air purifier:

Position the air purifier on a flat, solid, stable surface.
Never place the unit on soft surfaces such as a bed or sofa.
Position the air purifier where the dirty air is not drawn across your head or body while sitting or sleeping.
Position the air purifier so the plug on the power cord easily reaches a standard electrical outlet for a polarized plug.

SAVE THESE INSTRUCTIONS

Features

Pre-Filter: Filter large particles such as dust, hair and lint.
Cleaning brush: Use to clean the front and back grilles. Stores snuggly in the compartment under the cover.
Helios Shield ® & Catalytic Oxygenator: This component combines technologies to reduce ozone and odors from the air that passes through its filter. It cannot be removed.
Truman Cell ®: Electrostatically charges and collects small particles such as dust, smoke, pollen, molds, and other allergens from the air that passes through the fiter.
Exhaust Grille: Directs the flow of air as it exits the unit.
Power Cord: Plug into the outlet to begin use.
Removable Base: Allows the air purifier to stand vertically. Simply stand the unit on its base with the Oreck logo facing front and the control panel buttons at the top.
Night Light: The right end will softly glow when the night light is activated. The logo will illuminate when the unit is sitting on its base, or serve as a night light on the front of the unit.
Cover Release Button: Press in to release the cover for maintenance access.
Truman Cell ® Light: A solid red light is included as a handy reminder to clean the Truman Cell ® after 30 days. A blinking light indicates a malfunction that has caused the Truman Cell ® to shut down and requires attention.
Speed Indicator Light: Lighting starts from the center for the lowest motor speed to all five lights for full motor speed.
Odor Control: This button turns the Helios Shield ® on or off as desired. If turned off, the unit will continue to filter particles from the air that passes through the filter, though the odor-reducing capability will be turned off.
Motor Speed/Power Button: Press the power button repeatedly for the desired speed.

Low for Silence Technology ®. It's the quietest operation.
Medium for normal use
High for maximum cleaning

Night Light Button: Repeatedly press this button to change the lighting scheme to best suit your preference.

Front Grille: Air enters here for the first stage of cleaning.
Remote Control: Remotely turns the Power ON/OFF, adjusts the Odor Control feature, Motor Speed and Night Light. Use these buttons in the same procedure as the unit.

Operation

Place. Locate the air purifier on a hard surface such as a table or desk. The unit can be placed horizontally or vertically depending on your space. Be sure the grille is not blocked by other objects and there are no candles or flames near the unit.
Plug In. Plug into nearest standard electrical outlet that accepts a polarized plug.
Select the air cleaning speed. Press the motor speed/power button until you reach the desired speed.

Cleaning

Cleaning Intervals
Proper care and cleaning of the air purifier is critical to performance. The following chart shows the cleaning intervals and method.

Part	Cleaning Time	Method
Cabinet	As needed	Wipe with damp cloth first. If required, follow with mild, non-abrasive cleaner.
Truman Cell®	to 4 weeks	Spray Oreck Assail-A-Cell® cleaner or soak in warm water or warm water with mild liquid detergent. Rinse.
Pre-Filter	to 4 weeks	Rinse thoroughly in warm water or as needed.
Air Direction Grille	As needed	Use the brush provided with the air purifier to brush away debris in between the slots.
Catalytic Ozone Converter	As needed	Vacuum the front surface gently with a soft brush attachment. Do not use any liquids for cleaning.

Cleaning the unit while it is plugged in may result in electric shock, electric spark and serious injury. Unplug the unit before cleaning or maintenance.

Cleaning the Pre-Filter

Unplug the air purifier and lay it on its side with the hinged cover on top.
Open the Top Cover by pressing the Cover Release button.
Pull the Pre-Filter straight up and out of the Cabinet.
Thoroughly rinse the Pre-Filter and let it air dry before placing it back in the Cabinet. Do not use heated or compressed air as part of the drying process.
Slide the Pre-Filter back into the unit.
Close the Top Cover securely.

Cleaning the Truman Cell ®
Note: The Truman Cell may require more frequent cleaning if "arcing" occurs. Arcing is a sharp snapping sound that occurs when large particles are collected in the Truman Cell longed or continuous arcing occurs the Truman Cell cleaned.

Unplug the air purifier and lay it on its side with the hinged cover on top.
Open the Top Cover by pressing the Cover Release button.
Remove the Truman Cell ® by pulling up on the handle (located across the top), lifting it straight up and out.
Place in sink, bathtub or other location where cleaner can cover every surface.

Spray Oreck Assail-a-Cell ® cleaner between each Cell Plate and cover each surface. Allow the cleaner to soak for a few minutes but do not let it dry. Thoroughly rinse the Truman Cell ® with clean water. An alternative method to clean the Truman Cell or soak it in warm water for loose debris. Mild liquid dish detergent in water may also be used to help break down tough dirt and residue. Thoroughly rinse the Truman Cell with clean water.
Note: To prevent damage to the components of the Truman Cell ®, do not put in dishwasher or use a cotton swab. Tough residue such as tar from tobacco smoke may need additional cleaning or longer soaking.
Shake excess water from the Truman Cell ® drying time. Do not use heated or compressed air to dry.
Place the Truman Cell ® back into the unit by sliding it straight down into the slots. The Truman Cell designed so that it can only be inserted in one direction.
Close the Top Cover securely.

Drying the Truman Cell^®
Note: The Truman Cell^® must be completely dry after cleaning in order to operate properly. A drying mode is available to help remove any residual moisture. While in this mode, the fan will be running on Medium speed, and no power will be supplied to the Truman Cell^®. Once the unit detects that the Truman Cell^® is completely dry, it will return to its original operating settings and function as normal.

"Dry Mode" Operation
If the power supply detects that the Truman Cell^® is wet, it shuts down power to the cell and causes the Collector Cell light to blink rapidly.

While the collector cell light is blinking, press and hold the power button to initiate "Dry Mode".
Next, the following will all happen simultaneously:

The lights directly above and below the power button will flash 3 times.
The unit will switch to medium speed.
The Collector Cell light will start to blink in a slow pattern.

Once in "Dry Mode"
- The unit will run for 60 minutes and then attempt to reset the power supply to the Truman Cell ®.
- If the power supply successfully restarts, the unit will return to its original speed and run as normal.
- If not successful, it will go through the same process up to two more times.
- If still not successful after the third try, the cell is likely damaged or is shorting out due to the presence of a foreign object; it will return to the original speed and the Collector Cell light will blink with a rapid blink pattern indefinitely until the unit is reset.

Cleaning the Catalytic Oxygenator

Unplug the air purifie and lay it on its side with the hinged cover on top.
Open the Top Cover by pressing the Cover Release button.
Remove the Pre-Filter and Truman Cell ®
Vacuum the front face of the filter with a soft-brush attachment only. Do not use liquids to clean.
Replace the Truman Cell ® and Pre-Filter.
Close the Top Cover securely.

Cleaning the Exhaust Grille

Remove the Cleaning Brush from the storage slot located under the Top Cover.
Brush away debris that has collected between the Grille Slots.
Return the Cleaning Brush to the storage slot.

Troubleshooting

Service problems that appear to be major can often be solved easily.
You can be your own troubleshooter by reviewing this guide.
All other servicing should be done by an Oreck authorized _{service center.}

Problem	Check	Solution
Unit does not turn ON	Power Cord Selector Switch Top Cover ALCI Plug	Plug in Power Cord Set Selector Switch for desired blower speed. Make sure the top cover is securely closed Press the red reset button each time you plug in the ALCI safety device.
Truman Cell ® light has turned solid red	Truman Cell ®	A solid red light is a 30 day cleaning reminder. Wash Truman Cell ®. Make sure it is thoroughly clean before reinstalling.
Truman Cell ® light is blinking red	Truman Cell ®	A fast blinking light indicates the power supply has shut down due to arcing or short circuit. The cell should be inspected and cleaned, repaired, or replaced. A slow blinking light indicates the unit is in Dry Mode.
Unit does not reduce particles	Truman Cell ®	Clean the Truman Cell ®. Truman Cell ® may be damaged. Contact Oreck for service.
Unit sparks, crackles and pops	Truman Cell ®	Sparking or popping noise (arcing) can occur when a large particle is captured in the Truman Cell ®. If the unit is arcing excessively, the cell may be dirty. Try cleaning the Truman Cell ®. If excessive arcing continues after proper cleaning, the Truman Cell ® may be damaged. If damaged, contact Oreck for service.
Unit still does not operate properly	Review all the above.	Contact Oreck for service.
