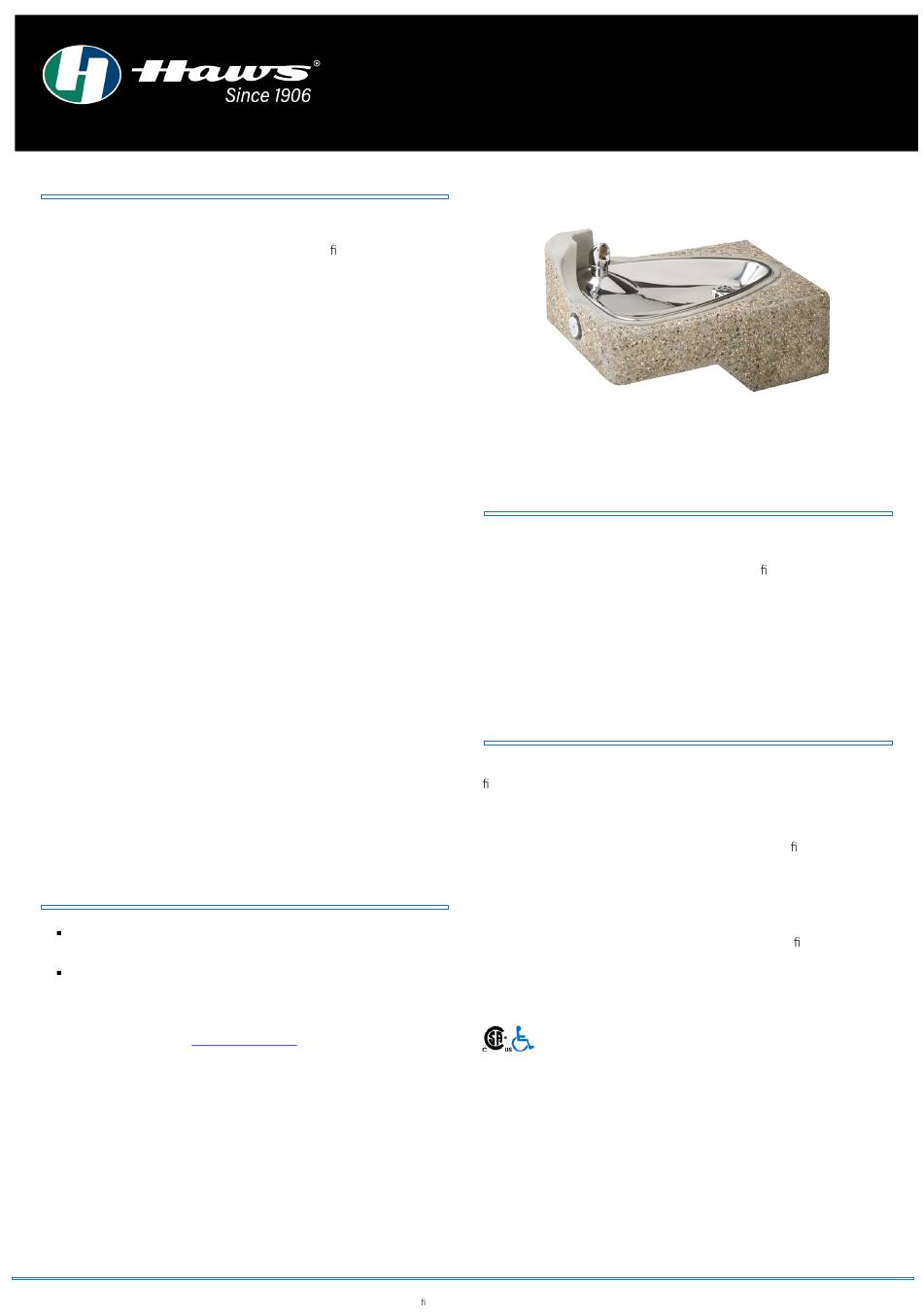

Haws 1047 Manual

CONSTRUCTION
Barrier-free designed fountain for child or adult ADA access. Made of
air-entrained concrete with exposed aggregate nish and galvanized
wire. Air entrainment ensures strength and freeze-thaw durability. Unit
has a stainless steel basin, and hood extension to protect the bubbler
head with a partial enclosure. Vandal-resistant bottom plate, and
chrome-plated 1-1/2" (3.81 cm) IPS trap.
DRAIN CLEAN-OUT
Top-down access to the drain allows the fountain portion to be
cleaned without taking the unit apart, good for outdoor settings with
drain-clogging sediment such as leaves, garbage, and other debris.
BARRIER FREE
Designed for Adult or Child ADA access, the spacious fountain design
allows for the trap to be internally mounted which allows for easy
access.
MOUNTING
3/16" (.47 cm) steel mounting plate (sold separately) with supplied
mounting hardware for a solid unit base allows for easy installation to
a framed wall.
BUBBLER HEAD
Polished chrome-plated brass bubbler head with integral basin shank
for added strength. Shielded, angled stream opening provides a
steady, sanitary source of drinking water at .45 gpm.
DRINKING FOUNTAIN VALVE
The push-button activated valve offers the only all stainless steel
valve body that is machined out of solid bar stock, is fully serviceable
through the front of the push button assembly offering access to the
water control cartridge and integral water supply strainer, and with
front access to the water stream height adjustment for easy
maintenance without having to remove the valve. Operating pressure
range of 30 to 90 psi (2.1 to 6.2 bar).
VANDAL RESISTANT
The bubbler head, push button, drain strainer and bottom plate are
locked in place, discouraging unwanted vandal tampering.
Support Frame: Model 6800 universal in-wall mounting support for
use with most fountains.
Remote Drinking Fountain Water chiller: Model HCR8, 8 gph (30.3
L) remote water chiller provides instantaneous cooling to meet a
continuous demand for chilled water.
For more information, visit www.hawsco.com
DISCLAIMER: Continued product improvements make speci cations subject to change without notice. Check www.hawsco.com for the latest product information and updates.
FEATURES & BENEFITS
OPTIONS
or call (888) 640-4297.
1455 Kleppe Lane :: Sparks, NV 89431 :: p. 775.359.4712 :: f. 775.359.7424 :: e. info@hawsco.com :: www.hawsco.com :: 24 Apr, 2023

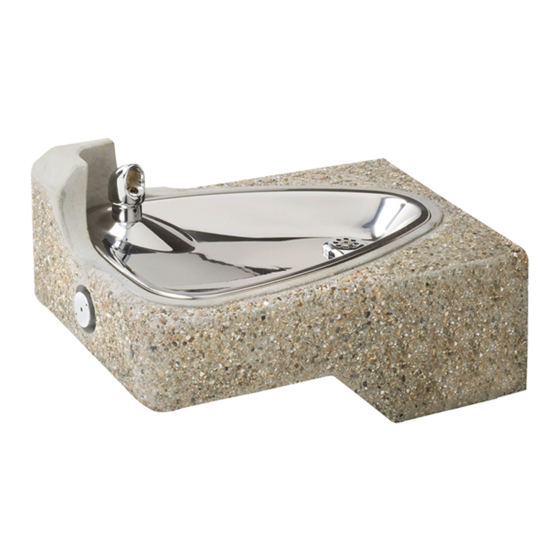

ADA Vandal-Resistant Concrete Wall Mount Drinking Fountain
Model 1047 vandal-resistant wall mount adult or child ADA drinking
fountain shall include a stainless steel basin contained in an air-entrained
concrete wall bracket with exposed aggregate
waterways, vandal-resistant push-button operated valve with front-
accessible cartridge and flow adjustment, polished chrome-plated brass
vandal-resistant bubbler head, polished chrome-plated brass vandal-
resistant waste strainer with top-down access, vandal-resistant bottom
plate, and chrome-plated 1-1/2" NPT trap.
REQUIRES MODEL 6700 PRICED SEPARATELY
Perfect for either public or private settings, our concrete series is a great
t in "open-air" environments. Suitable in areas where weather
conditions may be cause for concern, this series stands strong from the
forest to the beach. Reinforced concrete design not only protects from
corrosion, its Portland gray color makes it recognizable enough to locate
without compromising the outdoor atmosphere. Speci cally, this type of
wall mounted drinking fountain may be placed in settings such as: parks,
schools, and other recreational outdoor environments where the
temperature remains above freezing. Model meets all current Federal
Regulations for the disabled including those in the Americans with
Disabilities Act. Haws manufactures drinking fountains, faucets and
electric water coolers to be lead-free by all known de nitions including
NSF/ANSI/CAN 61-Section 9, NSF/ANSI/CAN 372, California Proposition
65, and the Federal Safe Drinking Water Act. Product is compliant to
California Health and Safety Code 116875 (AB 1953-2006), and
NSF/ANSI/CAN 61: Q ≤ 1.
