Grundig GKNI 15720 User Manual

Combi fridge freezer
Hide thumbs Also See for GKNI 15720:
Table of Contents

Advertisement

Quick Links

Download this manual
Combi Fridge Freezer
User Manual
GKNI 15720
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GKNI 15720 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grundig GKNI 15720

Summary of Contents for Grundig GKNI 15720

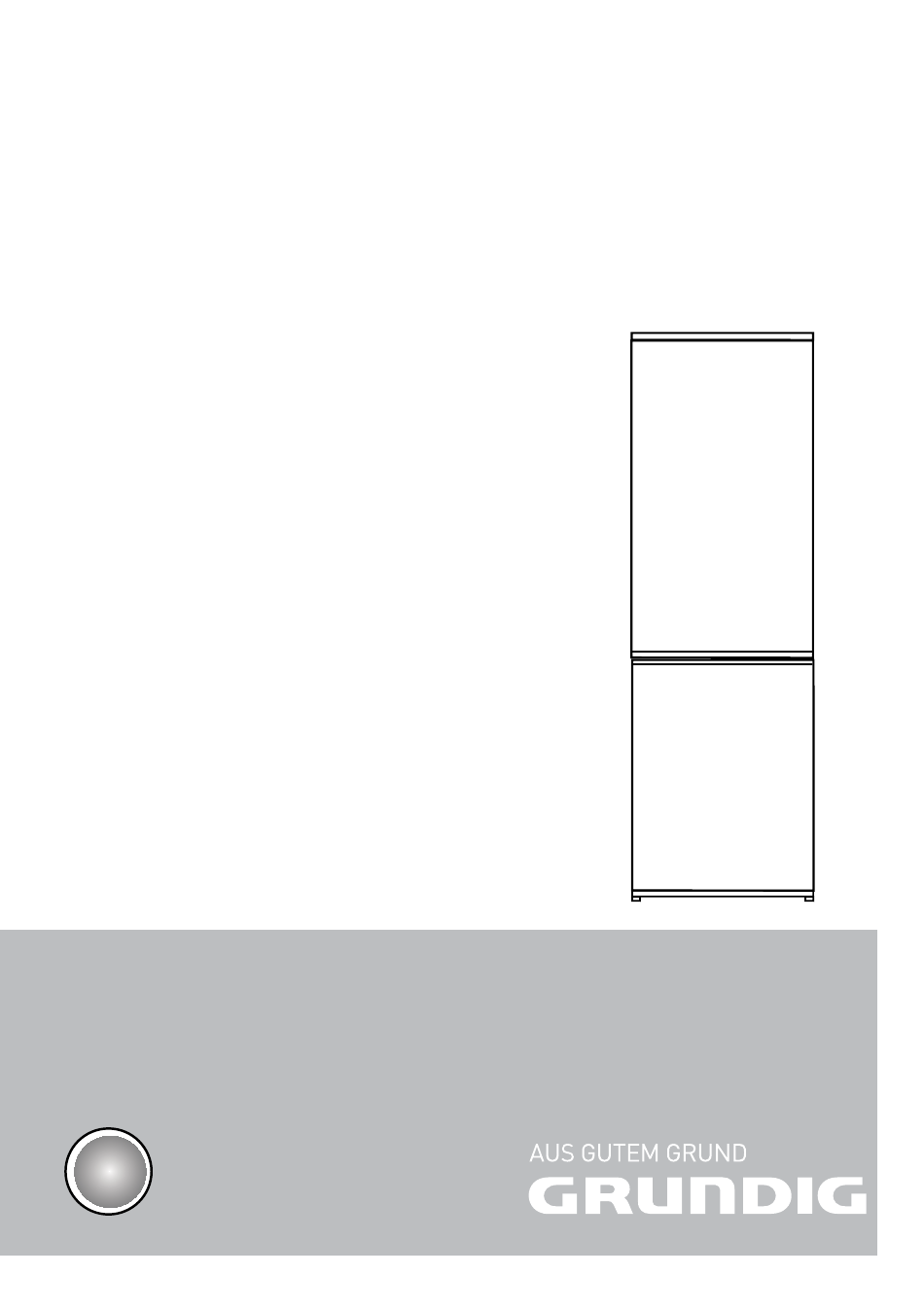

  • Page 1 Combi Fridge Freezer User Manual GKNI 15720...
  • Page 2 Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

  • Page 3: Table Of Contents

    1 Important instructions for safety 4 Preparation and environment 4.1 Things to be done for energy saving . .11 1.1 General safety ....4 4.2 Initial use .

  • Page 4: Important Instructions For Safety And Environment

    Important instructions for safety and environment This section contains safety instructions that • Always have repairs carried out by will help protect from risk of personal injury the Authorised Service Agent. The or property damage. Failure to follow these manufacturer shall not be held liable for instructions shall void any warranty.

  • Page 5: Hc Warning

    Important instructions for safety and environment evaporator, pipe extensions or surface system and piping during usage and coatings are punctured may cause skin transportation. This gas is flammable. irritations and eye injuries. If the cooling system is damaged, keep • Do not cover or block the ventilation holes the product away from potential sources on the refrigerator with any material.

  • Page 6: Compliance With Weee Directive And Disposing Of The Waste Product

    Important instructions for safety and environment 1.4 Compliance with WEEE 1.6 Package information Directive and Disposing Packaging materials of the product are of the Waste Product: manufactured from recyclable materials in accordance with our National Environment This product complies with EU WEEE Regulations.

  • Page 7: Your Refrigerator

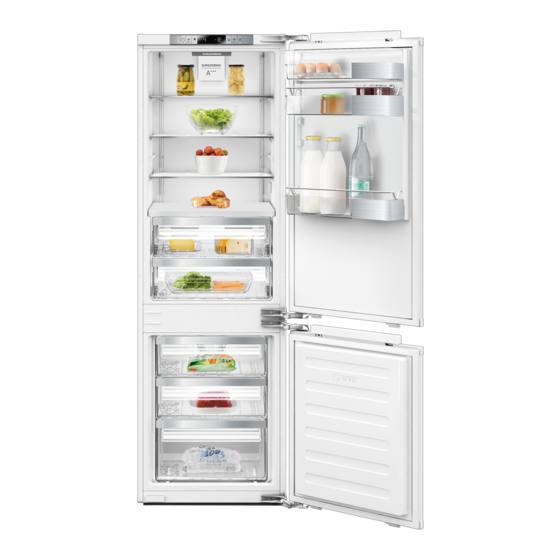

    Your Refrigerator Butter & Cheese sections Super fresh zone Egg tray Super fresh zone cover and glass Adjustable door shelves 10. Odour filter Bottle holder 11. Adjustable shelves 12. Fan Bottle shelf 13. Control panel and display Adjustable front feet Freezer compartment Figures in this user manual are schematic and may not match the product exactly.

  • Page 8: Installation

    Installation To make the product ready for use, make sure distance with the ceiling and side walls. that the electricity installation is appropriate • Do not place the product on the materials before calling the Authorised Service Agent. such as rugs or carpets. If not, call a qualified electrician to have any •...

  • Page 9: Illumination Lamp

    Installation WARNING: Damaged power cable must be replaced by the Authorised Service Agents. WARNING: If the product has a failure, it should not be operated unless it is repaired by the Authorised Service Agent! There is the risk of electric shock! 3.4 Illumination lamp Do not attempt to repair yourself but call the...
  • Page 10 Installation 3.5 Reversing the doors 10 / 20 EN Refrigerator /User Manual Refrigerator /User Manual...

  • Page 11: Preparation

    Preparation 4.1 Things to be done for energy saving • Do not block the freezer fan grill by Connecting the product to electric placing foods in front.There must always be energy saving systems is risky as it may left minimum 3 cm open distance in front of cause damage on the product.

  • Page 12: Operating The Product

    Operating the product 5.1 Control panel and display 12 13 15 16 1-On/Off function at 15°C in order to prevent bad odours from forming. To deactivate vacation mode, press Press the On/Off button for 3 seconds to turn the vacation button once more. There should off or turn on the fridge.
  • Page 13 Operating the product 9-High Temperature Error / Warning 16-Eco-Extra (Special Economic Usage) Indicator Function This icon comes on during high temperature Press the Quick Freeze\Eco Extra button for failures and error warnings. 3 seconds to activate the Eco Extra Function. Refrigerator will start operating in the most 10-Economic Usage Indicator economic mode after 6 hours and the economic...

  • Page 14: Duo-Cooling System

    Operating the product 5.2 Duo-Cooling system 5.4 Recommendations for preserving the frozen food Your refrigerator is equipped with two separate cooling systems to cool the • • Frozen food that you have purchased fresh food compartment and frozen food should be stored in accordance with the compartment separately.

  • Page 15: Description And Cleaning Of Odour Filter

    Operating the product 5.6 Description and cleaning 5.7 Deep-freeze information of odour filter: Food must be frozen as rapidly as possible when they are put in a refrigerator in order to *optional keep them in good quality. Odour filter prevents unpleasant odour build- The TSE norm requires (according to certain up in your refrigerator.
  • Page 16 Operating the product Freezer Fridge Compartment Compartment Explanations Setting Setting -18°C 4°C This is the normal recommended setting. -20, -24 or These settings are recommended when the ambient 4°C -24°C temperature exceeds 30°C. Use when you wish to freeze your food in a short time. Your Quick Freeze 4°C refrigerator will return to its previous mode when the process...

  • Page 17: Maintenance And Cleaning

    Maintenance and cleaning Cleaning your fridge at regular intervals will • Keeping the refrigerator clean is important. extend the service life of the product. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator WARNING: Unplug the product before with carbonate dissolved in water every 15 cleaning it.

  • Page 18: Troubleshooting

    Troubleshooting Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The refrigerator does not operate.
  • Page 19 Troubleshooting The refrigerator is running frequently or for a long time. • New product may be bigger than the previous one. Larger refrigerators operate for a longer period of time. • The room temperature may be high. >>> It is normal that the product operates for longer periods in hot ambient.
  • Page 20 Troubleshooting There are noises coming from the refrigerator like liquid flowing, spraying, etc. • Liquid and gas flows occur in accordance with the operating principles of your refrigerator. >>> It is normal and not a fault. Whistle comes from the refrigerator. • Fans are used in order to cool the refrigerator.
  • Page 21 GUARANTEE DETAILS Your new Grundıg product is guaranteed against the cost of breakdown repair for 5 years from the date of the original purchase. Please visit www.grundig.co.uk to register your warranty What is covered?   • Repairs necessary as a result of faulty materials, defective components or manufacturing defect.
  • Page 22 If you have purchased an extended guarantee please refer to the instructions contained within the extended guarantee agreement document. Otherwise please call the appropriate number above where service can be obtained at a charge. Should you experience any difficulty in obtaining service please contact the Grundig Customer Help-Line. Tel: 0845 603 1234...
  • Page 23 57 4335 0000/ AD...
