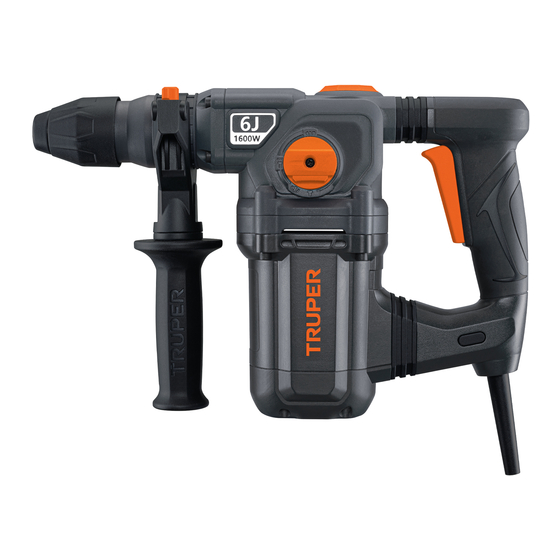

- Page 1 Manual 12.5 A Rotary Hammer Joules Impact Energy Motor 1600W ROEL-60N Applies for: Code Model 19323 ROEL-60N Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical Data Power Requirements To gain the best performance of the tool, prolong the duty life, General Power Tools Safety Warnings make the Warranty valid if necessary, and to avoid hazards Safety warnings for Drills of fatal injuries please read and and Hammer Drills understand this Manual before using the tool. -
Page 3: Technical Data
Technical Data ROEL-60N Code 19323 Description Rotary Hammer Chuck SDS Plus Voltage 127 V~ Frequency 60 Hz Current 12.5 A Power 2.1 Hp Impact Energy 6 Joules Drilling Capacity Concrete: 1-1/4” Steel: 1/2” Wood: 1-9/16” Speed 850 RPM Impacts 4 780 impact/min Work Cycle 50 minutes’... -
Page 4: General Power Tools Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Drills And Hammer Drills
Safety warnings for Drills and Hammer Drills Choose the right bit While operating the hammer drill CAUTION • The tool is designed to work with • Use the auxiliary handles, if supplied with the tool. SDS-PLUS drill bits or shank accessories. Choose the Loss of control may result in personal injury. -
Page 6: Parts
Parts Crankshaft Cap Vibration Shock Function Non-Slip Absorber Depth Selector Handle Control Rod 1600W Function Chuck Selector Blocking Button Switch 360° Auxiliary Dust Guard Handle Two Prong Wrench LED power Power indicator Cord Cord Protector Preparation Depth Control Rod Auxiliary Handle and Depth Control Steps 1 &... -
Page 7: Start Up
Preparation Installing or removing the bit/accessory Bit with SDS-PLUS Shank • Clean and lubricate lightly the bit and / or accessory before installing. • Push the chuck jaw back while turning and pushing the bit/accessory in until it engages. Chuck •... - Page 8 Start Up Changing the Operation Mode • Turn both function selectors (C) and turn the function selector (B) into one of the 4 positions depending what is the job to carry out. Listen to a click to make sure the selector is correctly set. Never change the position in the function WARNING selectors when the hammer drill motor is running.
- Page 9 Start Up Operation Percussion drill. • Set the knob that changes the drive mode to the symbol • Position the bit at the desired location in the hole, then actuate the switch. 1600W • Do not force the tool. With less pressure, you get better results. Keep the tool in the proper position and prevent it from slipping out of the hole.
-
Page 10: Maintenance
• However, the user shall add Lithium Complex Grease, ISO 220 Viscosity, N.L.G.I Grade #2 (for more information about the type of grease to use, please contact a Truper Authorized Service Center) every 2 to 3 days, and everyday if the load is heavy or when the impact seems to be weak. -
Page 11: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. -
Page 12: Warranty Policy
Truper will not require any proof of purchase to make the warranty effective. Phone number 800-018-7873. Made in China. Imported by Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
