Metalcraft GC1510 Manual

Product size(lxwxh):641x1275x146cm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

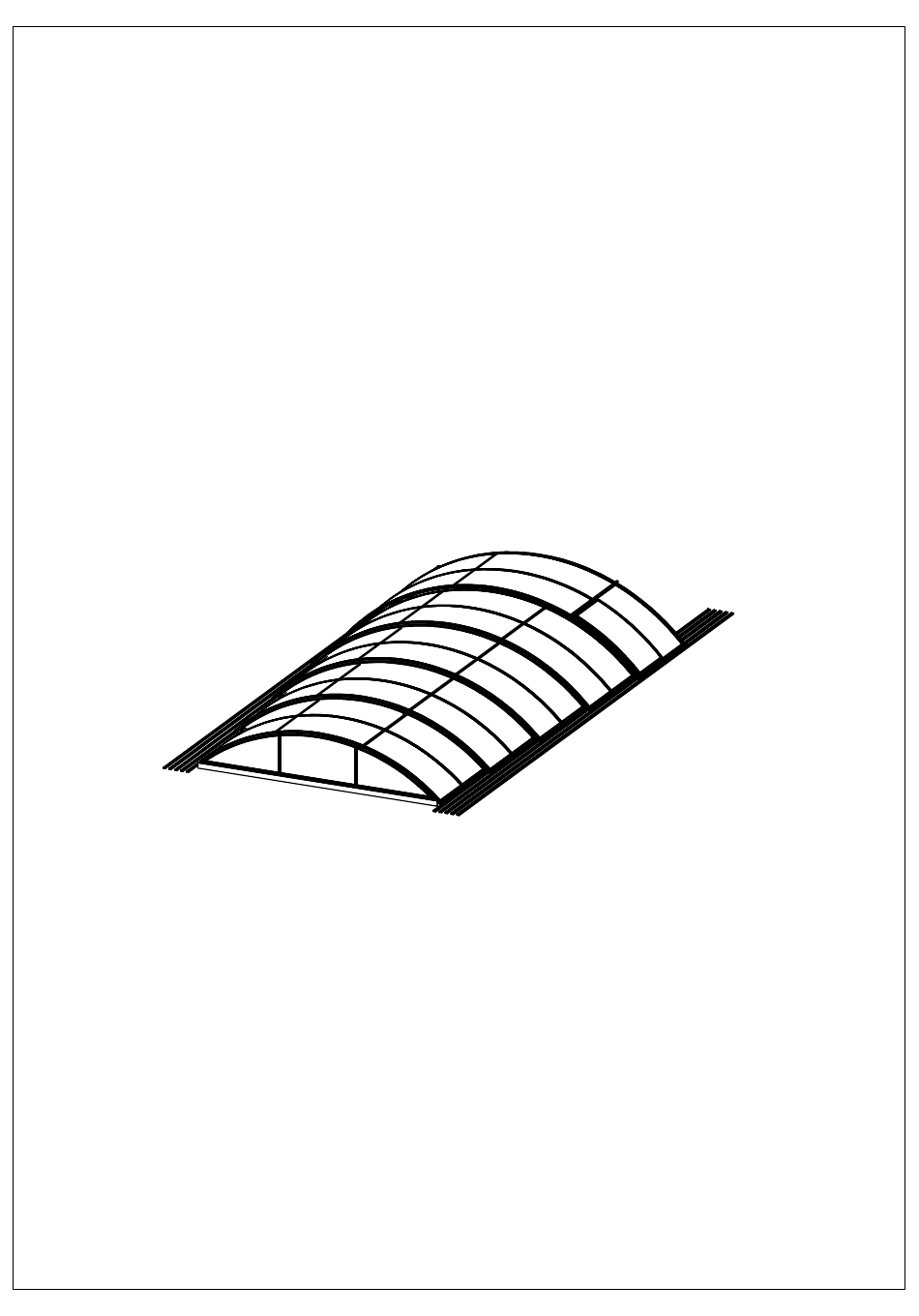

Assembly Instructions
MODEL:GC1510
PRODUCT SIZE(LxWxH):641x1275x146cm
PLEASE READ CAREFULLY BEFORE ASSEMBLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC1510 and is the answer not in the manual?

Questions and answers

Related Manuals for Metalcraft GC1510

Summary of Contents for Metalcraft GC1510

  • Page 1 Assembly Instructions MODEL:GC1510 PRODUCT SIZE(LxWxH):641x1275x146cm PLEASE READ CAREFULLY BEFORE ASSEMBLY...
  • Page 2 Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that this product is assembled by at least three persons. 2. Some components have sharp metal edges. Please be careful when handling metal components. Please wear gloves, shoes and safety goggles during assembly. 3.
  • Page 3 (ALU Box) GC1510 PART PART L01A 01-L02A 01-L02B 02-L02A 02-L02B 03-L02A 03-L02B 04-L02A 04-L02B 05-L02A M6X35 05-L02B M6X80 01-L02G 01-L02H L04A M6X60 L05A M4.2X16 L06A L06A M4.2X25 L08A Ø6X16 L08B L09A K1-1 K5-1...
  • Page 4 (PC Box) GC1510 PART PC BOX...
  • Page 5 PART PART PART PART 7.14M L01A 01-L02A 01-L02B 01-L02G 01-L02H L04A L05A M6X35 L08A K1 Assembly L09A M6X60 K1-1 M4.2X16 M4.2X25 Ø6X16...
  • Page 6 PART L01A Fix the wheels onto L01A (3PCS), K1-1 using S01 & M01. L08A L01A M6X35 Ø6X60 M4.2X16 L01A L01A L08A L08A Fix L08A onto K1-1, using Z02. L01A L01A K1-1 L01A Fix L01A * 2PCS onto K1-1 using Z01, shown as above.
  • Page 7 PART L04A 01-L02B L04A M4.2X16 Ø6X60 K1-1 L04A 1. Insert L11 into L04A as shown, and fix it with L04A using Z02; 2. Fix L04A onto K1-1 as shown, using Z02. Attention: Y1 must be placed into the channel of L04A & L01A at the same time. Make sure all the panels are in the right position before fixing Z02 tight.

  • Page 8: Table Of Contents

    PART PART Attention: Y1 & Y9 must be placed into the channel of L04A/L01A at the same time. 01-L02A 7.14M Make sure all the panels are in the right position L04A before fixing Z02. L04A M4.2X16 Ø6X60 Fix L04A onto 01-L02B as shown, using Z02. M6X35 01-L02B L04A...
  • Page 9 PART Window Assembly 01-L02G 01-L02H 01-L02H L09A 01-L02G M4.2X16 Ø6X60 01-L02G 01-L02H 01-L02H L09A L09A L09A...

  • Page 10: 01-L02A

    PART L05A M4.2X16 01-L02A K1-1 L05A L01A L05A Fix one L05A onto L01A and L05A 01-L02A the other one onto L04A, using Z02. 01-L02A L05A K1-1 L05A...

  • Page 11: Z02

    PART Fix W01 (4PCS) onto both ends of L05A, using Z04. M4.2X16 M4.2X25 Ø6X16 Fix CX onto 01-L02A 10MM away from the bottom, using Z03. 01-L02G 01-L02G Fix the handle W02 onto window profile 01-L02G, using Z02. Cover all the holes with J01...
  • Page 12 PART PART PART PART 6.82M L01A 02-L02A 02-L02B L04A M6X35 M6X60 M4.2X16 M4.2X25...

  • Page 13: Z01

    PART L01A Fix the wheels onto L01A (3PCS), using S01 & M01. 02-L02A M6X35 M6X60 L01A L01A L01A L01A L01A 02-L02A Fix L01A * 2PCS onto 02-L02A using Z01. L01A 02-L02A...

  • Page 14: Before Fixing Z02

    PART 1. Insert L11 into L04A as shown, and fix it with L04A using Z02; L04A 2. Fix L04A onto 02-L02A as shown, using Z02. Attention: Y2 must be placed into the channel of L04A and L01A 02-L02B at the same time.Make sure all the panels are in the right position before fixing Z02 tight.
  • Page 15 PART PART Fix L04A onto 02-L02B as shown, using Z02. 02-L02A 6.82M L04A L04A Attention: Y2 must be placed into the channel of L04A/L01A at the same time. M6X60 Make sure all the panels are in the right position before fixing Z02. 02-L02B L04A Insert L11 into L04A as shown,...
  • Page 16 PART M4.2X25 Fix CX (2PCS) onto 02-L02A 10MM away from the bottom, using Z03. Cover all the holes with J01...
  • Page 17 PART PART PART PART 6.5M L01A 03-L02A 03-L02B L04A M6X35 M6X60 M4.2X16 M4.2X25...
  • Page 18 PART L01A Fix the wheels onto L01A (3PCS), using S01 & M01. 03-L02A M6X35 M6X60 L01A L01A L01A L01A L01A 03-L02A Fix L01A * 2PCS onto 03-L02A using Z01. L01A 03-L02A...
  • Page 19 PART 1. Insert L11 into L04A as shown, and fix it with L04A using Z02; L04A 2. Fix L04A onto 03-L02A as shown, using Z02. Attention: Y3 must be placed into the channel of L04A and L01A 03-L02B at the same time. Make sure all the panels are in the right position before fixing Z02 tight.
  • Page 20 PART PART Fix L04A onto 03-L02B as shown, using Z02. 03-L02A L04A 6.5M L04A M6X60 03-L02B L04A 03-L02A Insert L11 into L04A as shown, and fix it with L04A using Z02; 03-L02A Slide Rubber J03 into the channel of 03-L02A. Fix 03-L02A with L01A and L04A, using Z01 &...
  • Page 21 PART M4.2X25 Fix CX (2PCS) onto 03-L02A 10MM away from the bottom, using Z03. Cover all the holes with J01...
  • Page 22 PART PART PART PART 6.18M L01A 04-L02A 04-L02B L04A M6X35 M6X60 M4.2X25...
  • Page 23 PART L01A Fix the wheels onto L01A (3PCS), using S01 & M01. 04-L02A M6X35 M6X60 L01A L01A L01A L01A L01A 04-L02A Fix L01A * 2PCS onto 04-L02A using Z01. L01A 04-L02A...
  • Page 24 PART 1. Insert L11 into L04A as shown, and fix it with L04A using Z02; L04A 2. Fix L04A onto 04-L02A as shown, using Z02. Attention: Y4 must be placed into the channel of L04A and L01A 04-L02B at the same time. Make sure all the panels are in the right position before fixing Z02 tight.
  • Page 25 PART PART Fix L04A onto 04-L02B as shown, using Z02. 04-L02A 6.18M L04A L04A M6X60 04-L02B L04A 04-L02A Insert L11 into L04A as shown, and fix it with L04A using Z02; 04-L02A Slide Rubber J03 into the channel of 04-L02A. Fix 04-L02A with L01A and L04A, using Z01 &...
  • Page 26 PART M4.2X25 Fix CX (2PCS) onto 04-L02A 10MM away from the bottom, using Z03. Cover all the holes with J01...
  • Page 27 PART PART PART L01A 05-L02A 05-L02B L04A M6X35 L08B K5-1 M6X60 M4X16 M4.2X25...
  • Page 28 PART L01A Fix the wheels onto L01A (3PCS), K5-1 using S01 & M01. L08B L01A M6X35 Ø6X60 M4.2X16 L01A L01A L08B L08B Fix L08B onto K5-1, using Z02. L01A L01A K5-1 L01A Fix L01A * 2PCS onto K5-1 using Z01. K5-1...
  • Page 29 PART L04A 05-L02B L04A M4X16 M6X60 K5-1 L04A 1. Insert L11 into L04A as shown, and fix it with L04A using Z02; 2. Fix L04A onto K5-1 as shown, using Z02. Attention: Y4 must be placed into the channel of L04A and L01A at the same time. Make sure all the panels are in the right position before fixing Z02 tight.
  • Page 30 PART Fix L04A onto 05-L02B as shown, using Z02. 05-L02A L04A L04A M4X16 M6X60 Attention: Y4 must be placed 05-L02B L04A into the channel of L04A/L01A at the same time. Make sure all the panels are in the right position before fixing Z02.
  • Page 31 PART M4.2X25 Fix CX onto 05-L02A 10MM away from the bottom, using Z03. Cover all the holes with J01...
  • Page 32 PART PART L06A L06A M6X80 M4.2X16...
  • Page 33 6410 6158 5906 5654 5402 (MM) 14271 14153 14051 13947 13847 (MM) Small differences in the measurement are allowed in the actual installation...
  • Page 34 Track NO.2 Track NO.1 L06A Join 3 pcs of L06A as a longer track by inserting L12 into two ends, and fix them with Z02. L06A L06A 1. Lay down the two tracks at the right distance as shown above. 2.
  • Page 35 Track NO.2 Track NO.1 L06A L06A 1. Put K5 into the two tracks and adjust the track NO. 2 until K5 is moving smoothly. 2. Make pencil marks on the ground through the holes on the track, and then drill holes Dia 6MM on the ground. 3.
  • Page 36 Fix the rest tracks in order the same way as above. Make sure all the covers must move smoothly before fixing the screws tight. Drill 8 holes (Dia 30mm) on L06A using the reamer provided corresponded to the 8 latches (CX), and cover the holes with J04. This will help you lock up the swimming pool cover when you close it.
