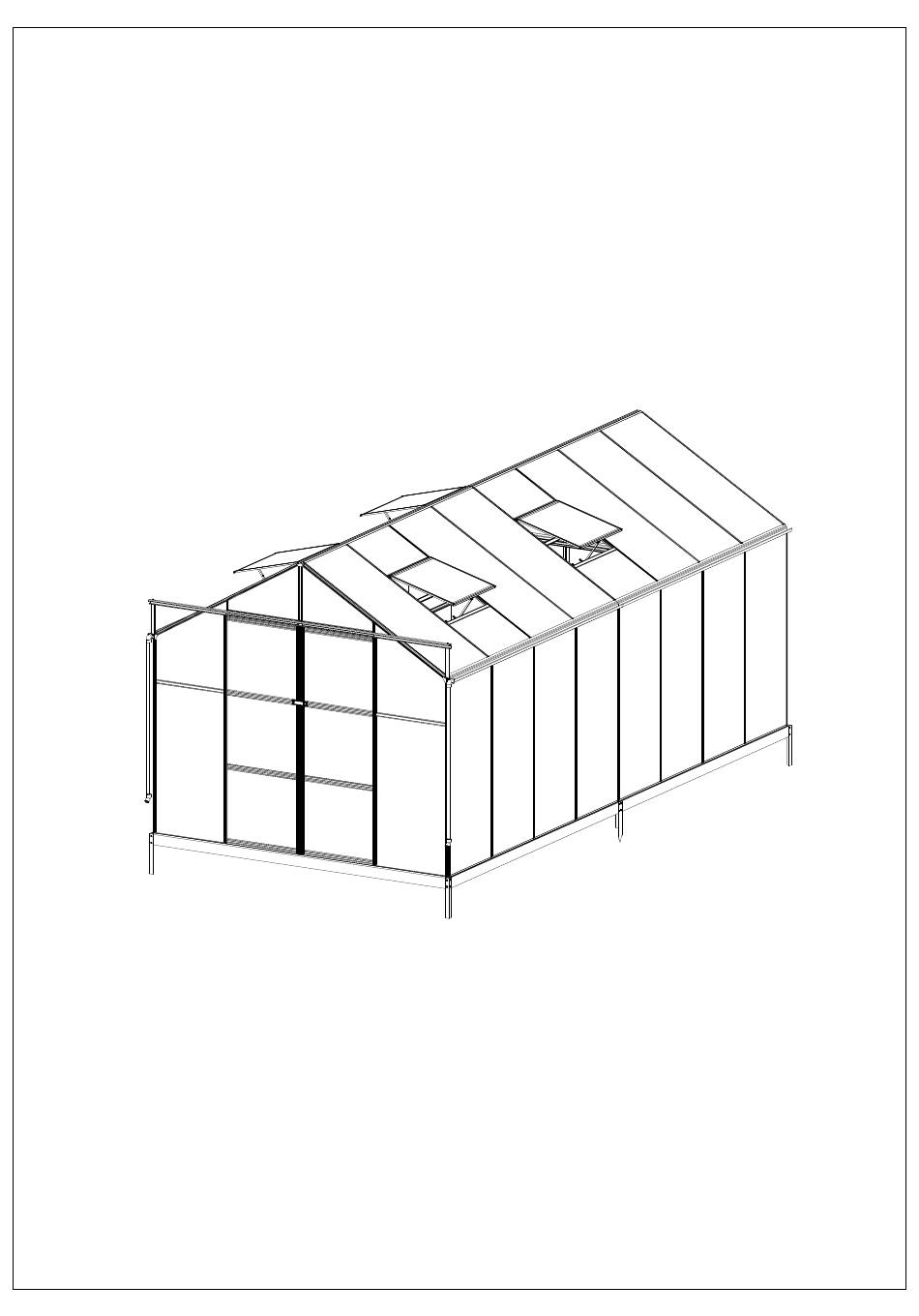

- Page 1 Assembly instruction MODEL:GP938 PRODUCT SIZE(LxWxH): 494 X 250 X 228CM PLEASE READ CAREFULLY BEFORE ASSEMBLY...
- Page 2 CONTENTS 1. Assembly Advice ..............Page 1 2. Product Features ..............Page 2 3. Parts List ................Page 3 4. Door Assembly ..............Page 4 - 5 5. Roof Vent Assembly ............Page 6 - 7 6. Base Assembly ..............Page 8 7. Framework & Glazing Assembly ........Page 9 - 22...
- Page 3 Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that this product is assembled by at least two people. 2. Some components have sharp metal edges. Please be careful when handling metal components. Please wear gloves, shoes and safety goggles during assembly. 3.
- Page 4 Functions and Features: 1. The strong two part eaves beam includes an integral gutter. Downpipes are also included as standard so you can collect rainwater. 2. Manual window handles are included as standard with the roof vents. If required, automatic roof vent openers are available as an inexpensive optional extra. GM80001 Automatic Opener Manual Opener...
- Page 5 PART PART L08D L23D GMDJ-101 GMDJ-102 GMDJ-103 door PART PART PART L02C M6X12 Part QTY. L02D J02R M6X20 L18A L02E J02L L18B L02F J03R Ø4X25 L02G J03L Ø4X16D L03A L16A Ø4X10 L03B M4.2X16 L16B L06D L07D PART L09D M6X12 M4.2X16 W011...
- Page 6 PART windowsX4 L01A L01B NO. QTY. Part L01C L11A L01D L12A L02A L02B L04A L04B L05A L05B L13A L23A L23E L23F PART Rubber PART 159.6M Rubber for walls & roof (Provided for glass only) PART 99.7M Rubber for walls only (Provided for glass only) PC/Glass N0.1...
- Page 7 QTY. QTY. Part Part L18A L16A L16B L18A L16A Ø4X25 L16B Left Door L18A...
- Page 8 QTY. QTY. Part Part L18A L18B L16B L18B L16B Ø4X25 L16B Right Door L18A...
- Page 9 QTY. QTY. Part Part L11A Windows Assembly L12A Ø4X16D Step 1 Ø4X10 M4.2X16 Step 2 Step 3...
- Page 10 L12A L11A L11A L12A L11A is factory fitted to L12A already Four windows are standard...
- Page 11 PART About 100mm distance between two Z04 GMDJ-101 GMDJ-102 GMDJ-103 M6X12 M4.2X16 FRONT BACK GP938 Fix the base before assembly the greenhouse. This is the way to fix the base. DJ101 DJ103 DJ102 L06D L06D L05D L05D L07D L07D L05D...
- Page 12 GP938 PART Attention: If glass is chosen, please seal it with rubber(J11) provided after the whole assembly is finished. Rubber is not provided if you choose polycarbonate sheet as glazing panel.
- Page 13 PART L01A L01B L01B L03A L01A L03A L08D L03A L01A M4.2X16 L01B M6X12 L03A L01A&B 1. Fix the glazing bars (2 x L01A, 2 x L01B and 2 x L03A) to the cills (L10 and L08D) with S01 & M01 provided. 2.
- Page 14 PART 1. Fix 4 x L07D eaves to L01A/L01B and L03A, using S01 & M01. L07D 2. Fix 4 x L23D to L01A/L01B and L03A, using S01 & M01. L23D M6X12 L07D L07D L07D L07D L07D L07D L23D L23D...
- Page 15 PART L02C L02G L02D L02F L02E L02E L02F L02G L23A L23D L05A M6X12 L02C&D&E&F&G L02C L02D Fix L02C & L02D to cill L10; L02E, L02F and L02G to cill L08D, using S01 & M01. L02C&D&E&F L02G Slide 2 * S01 into L02G bolt channel.
- Page 16 PART L02A L02A M6X12 Fix L02A (12pcs) to L08D and L07D using S01 & M01. L02A L02A L07D Slide 2 bolts (S01) into each L02A bolt channel. One is to fix L23D, the other is to be used later for fixing L05B...
- Page 17 PART L04A M6X12 L04A L04A L04A L04A S01X2 Fix bracings L04A (6pcs) as above, using S01 & M01. L04A L04A L04A L04A Slide the glazing panel Y6 into positions...
- Page 18 PART L04B L13A L04B M6X12 L13A L13A S01X2 L02C L02E L02D L02F L13A L13A L04B Preload the bolts Fix L13A to L02C & L02D S01 & M01 to L02E with S01 & M01. & L02F before sliding the panels Slide 2*S01 into into positions.
- Page 19 PART L01C L01D L01C L01D L01C L01D M6X12 L01C&D L01C&D 1. Preload S01 & M01 on L01C and L01D before fixing L01C&D them to L01A/L01B. See figue 1 & 2. 2. Bolt L01C and L01D with plate W01, using S01 & M01 preloaded.
- Page 20 PART L03B L23E M6X12 L03B L03B Fix plates W01 (2pcs) to L03A & L03B using S01 & M01. L03B Fix glazing bars L03B (2pcs) L07D to the eaves and the ridge profiles using S01 & M01 L07D L03A&B L23E Fix plates W01 (2pcs) Fix L23E(6pcs) to L03A to the two L03B using and L03B using S01 &...
- Page 21 PART L06D L06D L02B L06D M6X12 Bolt the ridge L06D (2pcs) to L01C, L01D and L03B, using S01 & M01. L06D L06D L02B Fix glazing bars L02B (12pcs) L02B to the eaves and the ridge profiles with S01 & M01 L06D Slide 3 bolts (S01) into L02B...
- Page 22 PART L23D L05B L05B L23D M6X12 L23D M4.2X16 Bolt L05B (18 pcs) to L02A & L02B using the S01 bolt placed in the bolt channel earlier. L02B L02A L05B L05B L23D L23D Bolt L23D to Fix W07 to L06D Bolt L23D to L02B L01C/L01D &...
- Page 23 PART Firstly, slide the glazing panel Y9 into L04A the channel of L02B/L03B WINDOW WINDOW L04A WINDOW M6X12 L04A L04A L02B&L03B L04A S01X4 Slide 4 bolts (S01) into each L04A bolt channel. 2 to be fixed with W08, and another 2 to be fixed with L02B/L03B. L11A L11A Slide the glazing panels...
- Page 24 PART L09D After the panels and windows are in position, put some silicone sealant around to avoid leaking water. D00R-R D00R-L W011 M6X12 M6X20 L09D L09D DOOR-L DOOR-R Slide 5 bolts (2*S01 and 3*S02) into L14 bolt channel. Bolt L14 to L13A with S02 & M01. L09D L13A L07D...
- Page 25 PART L23F J02R J03L J02L L23F J03R J03R J03L J02L J02R M4.2X16 Ø4X16D Ø4X10 J03L/R L23F Fix L23F (2pcs), one end to L14 Fix the cover caps (J03L/R) Fix the cover caps J01 and the other end to L09D carefully with Z03. into the ridge profile through J02L/R, using the S01 preloaded and M01.
